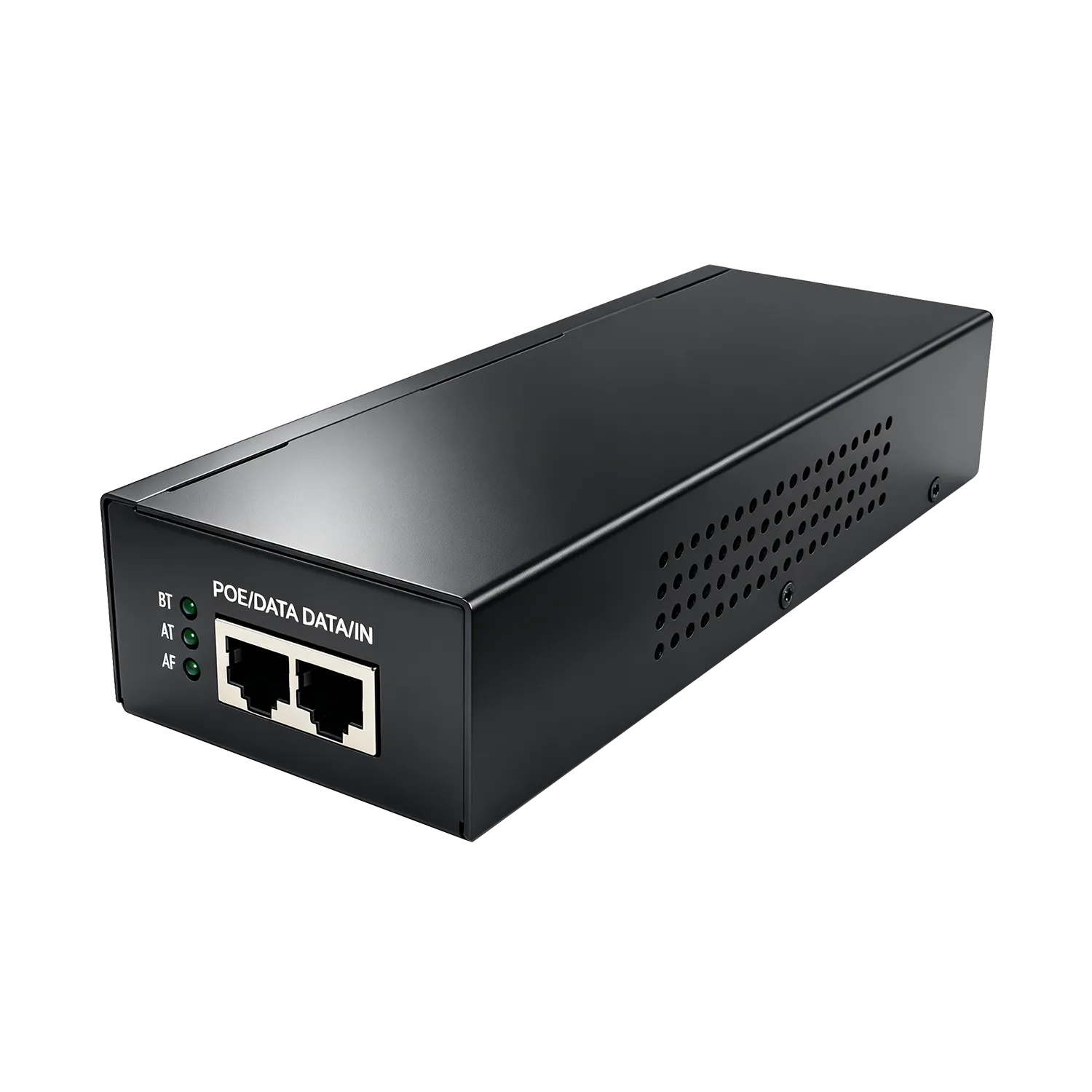

Wi-Tek - WI-POE58-BT V2 - 90W PoE PoE Injector
Product Overview
WI-POE58-BT V2 is a high-power PoE injector that combines network data and electrical power over a single Ethernet cable. It provides a 1000/2500 Mbps data input and a 1000/2500 Mbps PoE output compliant with IEEE 802.3af/at/bt, delivering up to 90 W for compatible IP cameras, wireless access points, and other powered devices.
Key Configuration
Model: WI-POE58-BT V2 | Data Input: 1 x 1000/2500 Mbps Ethernet port | PoE Output: 1 x 1000/2500 Mbps PoE RJ-45 port | PoE: IEEE 802.3af/at/bt, 90 W max | Power Input: AC 100-240 V, 50/60 Hz | Installation: Wall-mount or desktop
Key Features
- · Provides 1 x 1000/2500 Mbps Ethernet data input port
- · Provides 1 x 1000/2500 Mbps PoE output port
- · Supports IEEE 802.3af/at/bt PoE with up to 90 W output power
- · Supports both mid-span and end-span PoE power delivery
- · Uses 1/2+, 3/6-, 4/5+, and 7/8- pin assignment
- · Supports plug-and-play installation without configuration
- · Supports AC 100-240 V, 50/60 Hz power input
- · Provides 6 kV common-mode and 2 kV differential-mode surge immunity
- · Provides 4 kV contact and 8 kV air ESD protection
- · Supports operation from -10°C to 55°C with 5%-90% non-condensing humidity
Technical Context
The injector adds power to the Ethernet connection between a network switch and a powered device, allowing compatible equipment to be installed where a local power outlet is unavailable. Its 1000/2500 Mbps interfaces preserve high-speed network connectivity while IEEE 802.3af/at/bt compatibility supports a range of PoE-powered devices up to 90 W.
Installation Notes
The injector supports wall-mount or desktop installation and measures 192 x 73 x 37 mm. Connect the data input to an Ethernet switch and the PoE output to a compatible powered device, then supply the injector from an AC 100-240 V, 50/60 Hz source. The net weight is 0.55 kg.
| General | |
| Model | WI-POE58-BT |
| Product Type | 2.5 Gbps 802.3bt PoE Injector |
| Hardware Version | V2 |
| Interfaces | |
| Data Input Port | 1 × 1000/2500 Mbps Ethernet port |
| PoE Output Port | 1 × 1000/2500 Mbps PoE RJ45 port |
| PoE | |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) |
| PoE Power Budget | 90 W maximum |
| Power Supply | |

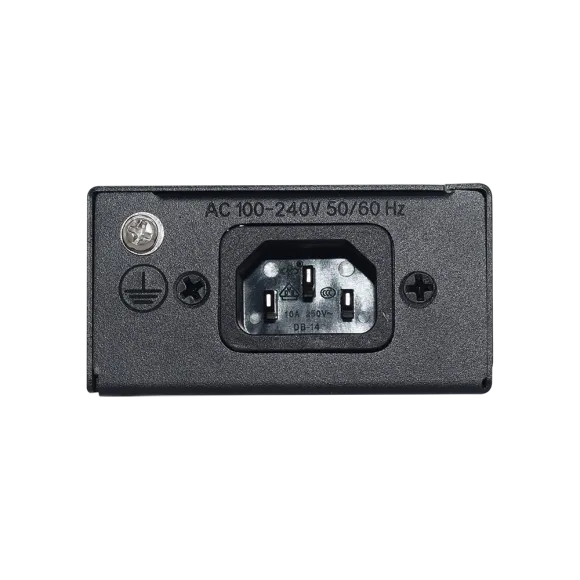

| Input Power | 100-240 V AC, 50/60 Hz |
| Power Consumption | Idle: 2 W |

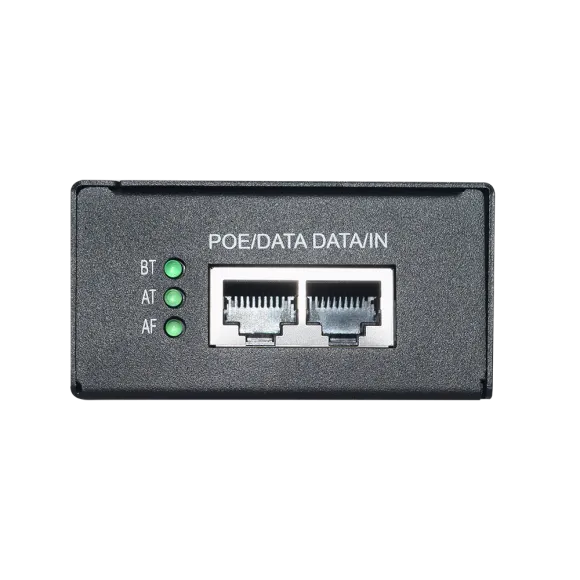

| LED Indicators | |
| AF Indicator | On: Connected powered device uses IEEE 802.3af Off: Connected powered device does not use IEEE 802.3af |
| AT Indicator | On: Connected powered device uses IEEE 802.3at Off: Connected powered device does not use IEEE 802.3at |
| BT Indicator | On: Connected powered device uses IEEE 802.3bt Off: Connected powered device does not use IEEE 802.3bt |
| Physical Characteristics | |

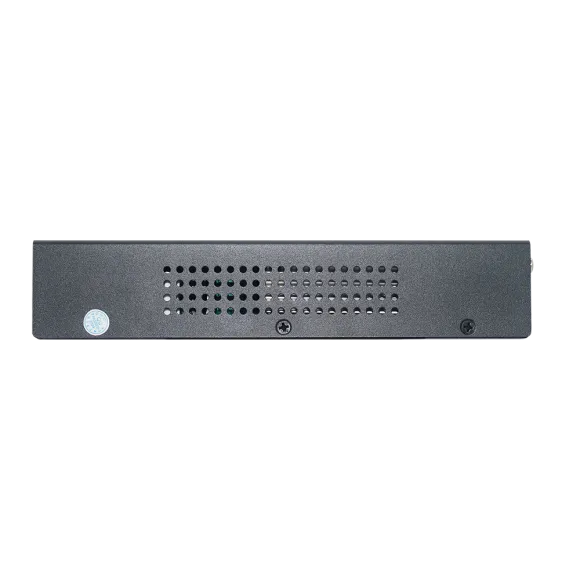

| Fan Quantity | Fanless |
| Injector Dimensions | 192 × 73 × 37 mm |
| Package Dimensions | 240 × 92 × 88 mm |
| Net Weight | 0.55 kg |
| Package Weight | 0.78 kg |
| Installation | Wall-mount, desktop |
| Reliability and Environment | |
| Surge Immunity | IEC 61000-4-5 Common mode: 6 kV Differential mode: 2 kV |
| ESD Protection | IEC 61000-4-2 Contact discharge: 4 kV Air discharge: 8 kV |
| Operating Environment | -10°C to 55°C 5% to 90% relative humidity, non-condensing |
| Storage Environment | -40°C to 80°C 5% to 95% relative humidity, non-condensing |
| Certifications | |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
| Package Contents | |
| Package Includes | PoE injector × 1 Power cord × 1 Quick Installation Guide × 1 |
