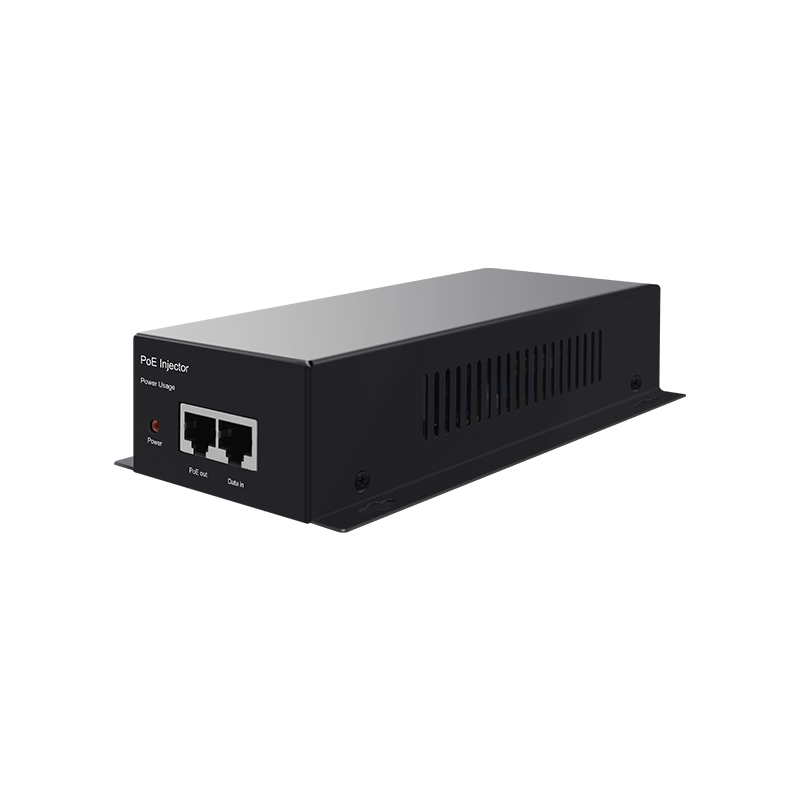

Wi-Tek - WI-POE58-BT - 1GE BT 90W PoE+1GE Uplink Industrial PoE Injector
Part number:
WI-POE58-BT
Price:
1GE BT 90W PoE+1GE Uplink Industrial PoE Injector
Features:
- 1*100/1000Mbps PoE output port with 802.3bt 90W
- 1*100/1000Mbps Ethernet input port
- AC IN 100-240V
- Metal casing with high quality
- Support desktop and wall mount
- 1GE BT 90W PoE+1GE Uplink Industrial PoE Injector
- Support camera, wireless AP, and IP phone etc.
- All ports support wire speed switch, jumbo frame transmission.
- Support 802.3 af/at/bt standard 90W PoE Output
- Internal power adapter supply 90W,AC INPUT 100-240V
| Specifications | |
| HARDWARE FEATURES | WI-POE58-BT |
| Interface | 1 10/1000Mbps PoE RJ45 Port |
| 1 10/1000Mbps Ethernet Port | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (Max 100m) | |
| EIA/TIA-568 100Ω STP (Max 100m) | |

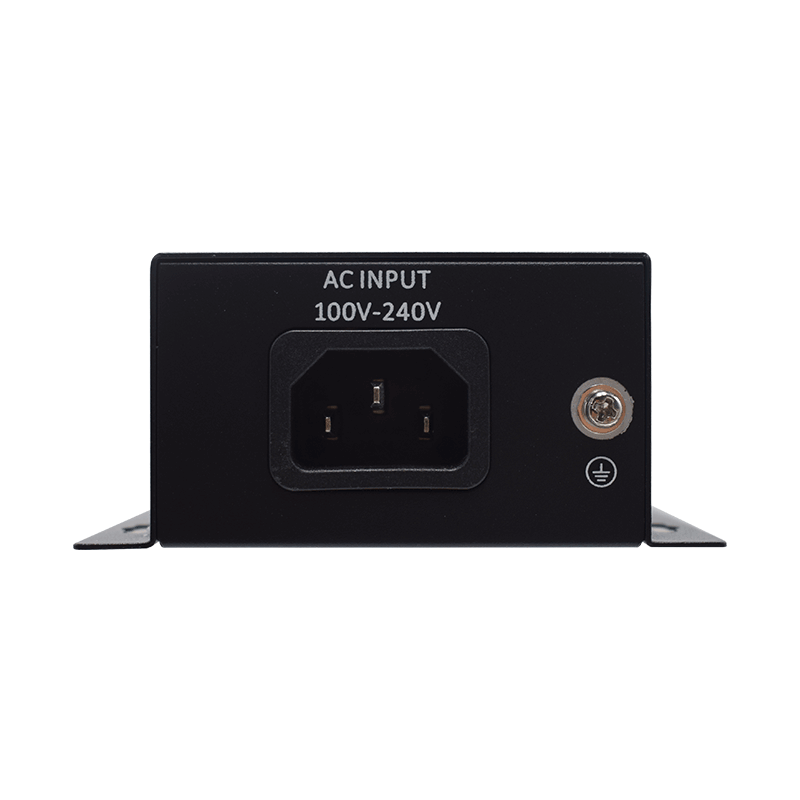

| Power Supply | AC IN 100-240V |
| Data In/Out | 110/1000Mbps Data In |
| Power In/Out Port | 1 x 802.3 af/at/bt 90W PoE Out |
| PoE PIN | 1/2（-）3/6（+）；4/5+ 7/8- |
| PoE Consumption | 52V 90W |
| LED Indicator | PWR-Power |
| DIP Switch | N/A |
| Fan Quantity | Fanless |
| Transmission Method | Store-And-Forward |
| Protection Level | 6kV ESD Contact discharge |
| Advanced Functions | Mac Address Auto-Learning And Auto-Aging |
| Store and forward | |
| IEEE 802.3x flow control for | |
| Full-duplex Mode | |
| Backpressure for Half-duplex Mode | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 205×134×47mm |
| DeviceDimension | 113×48×30mm |
| Gross Weight | 0.74kg |
| Net Weight | 0.5kg |
| Package Contents | 1 x PoE Switch |
| 1 x Power Cord | |
| 1 x Quick Installation Guide | |
| Operating Temperature | -10°C~55°C |
Name
Description
Size
Downloads
File
Quick Guide
0.5mb
