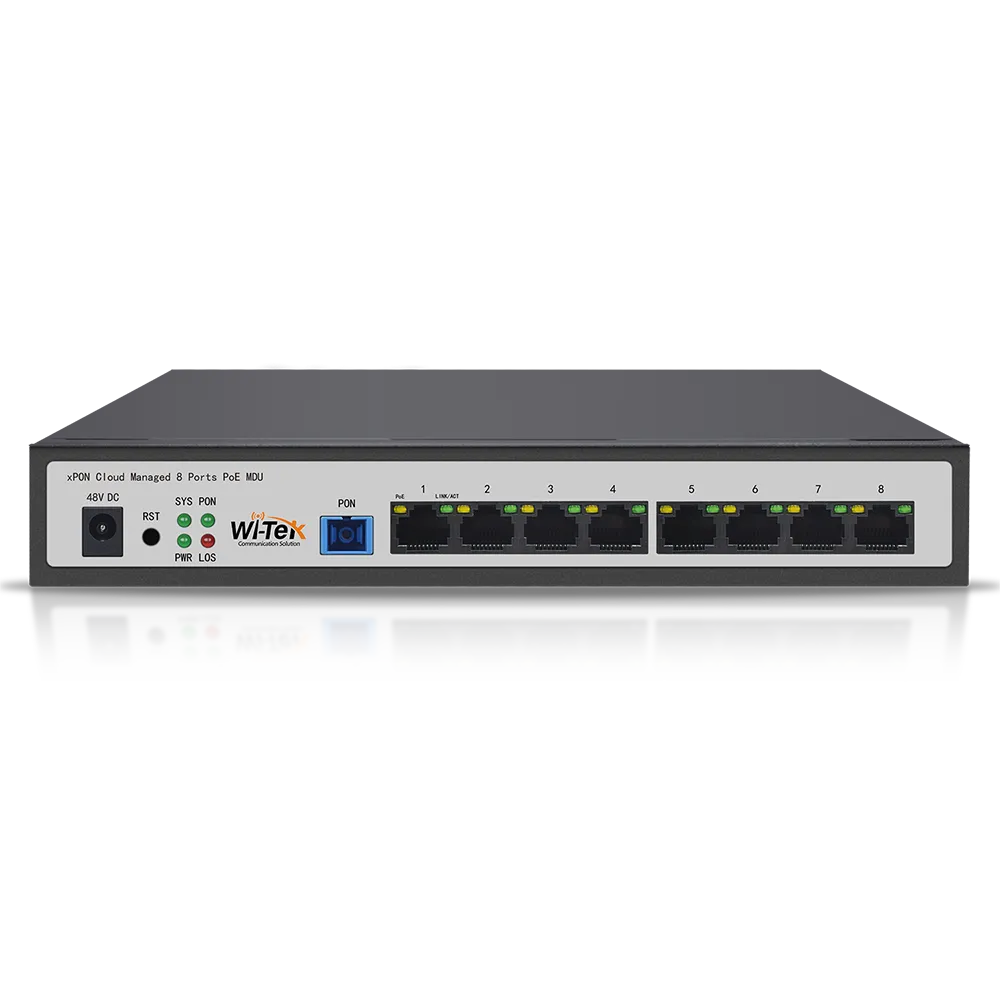

Wi-Tek - WI-POL308G-P - Gigabit PoE xPON MDU
Part number:
Price:
Highlight Features
●Intelligent, simplified, ultra-broadband Multi-Dwelling Unit for next generation all-optical networks.
●1*PON SC/UPC (BOSA on board)
●8*1000Mbps PoE+ RJ45
●110W max for whole switch PoE power budget
●Comply with ONVIF protocol
●OLT centrally management
●Wi-Tek Cloud Management
| Products | WI-POL308G-P |
| Hardware Version | V1 |
| PON Features | |
| Receiving Sensitivity | -8 to -27dBm |
| GPON Model | Downstream 2.5Gbps / upstream 1.25Gbps |
| EPON Model | Downstream 1.25Gbps / upstream 1.25Gbps |
| VLAN / QoS / GEM | Dynamic bandwidth status report Transparent / Tag / Trunk / Q-in-Q / Translate VLAN label processing QoS scheduling based on SP or WRR between GEM port and T-CONT Downstream multicast GEM port and broadcast GEM port |
| Supported Functions | Supports Triple Churning Encryption algorithm Supports NSR/SR Dynamic Bandwidth Allocation (DBA) Supports Forward Error Correction (FEC) Supports Dying Gasp |
| Reliability | |
| ESD Protection | Contact discharge: ±8kV, air discharge: ±15kV |
| Surge Protection | Ports: 4kV Common mode, 1kV Differential mode Power: 6kV Common mode, 2kV Differential mode |
| Hardware Features | |
| Network to Network Interface | 1 × PON SC/UPC (BOSA on board) |
| User Network Interface | 8 × 10/100/1000Mbps PoE+ RJ45 (MDI/MDIX) |
| LED Indicator | 1 × PWR, Power indicator 1 × SYS, System indicator 1 × LOS, Loss of signal indicator 1 × PON indicator |
| RST Button | Long press over 10 seconds: Restore the factory default configuration. |
| Power Supply | 48V DC @2.5A |
| Power Consumption | <10W (Without PoE) |
| Dimensions | W × H × D: 235 × 140 × 35mm |
| Weight | 0.83kg |
| Package Dimensions | W × H × D: 313 × 240 × 40mm |
| Package Weight | 1.44kg |
| Installation | Desktop mounted |
| Fan Quantity | Fan-less |
| Material | Metal shell |
| PoE | |
| PoE Port | Port 1-8 |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Supply Type | End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power | 30W max for each port, total PoE power budget 110W max. |
| Product Property | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ah, IEEE802.3ab, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE 802.3af, IEEE 802.3at, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4, CTC3.0 |
| MAC Address Table | 1K, support auto learning |
| Management | Cloud, OMCI, OAM, WEB |
| Environment | |
| Operating Environment | -10°C to 70°C, 5%~90% (non-condensation) |
| Storage Environment | -40°C to 70°C, 5%~95% (non-condensation) |
| Working Height | Max to 10,000 feet (3,000 meters) |
