Wi-Tek - WI-PS210S - PoE switch, 8x PoE

Product Overview

The Wi-Tek WI-PS210S(V2) is an unmanaged 100Mbps PoE switch designed for simple surveillance and network device deployments. It provides ten 100Mbps ports, including two uplink ports and eight PoE-out ports, with Hi-PoE support on the first PoE port, standard 802.3af/at PoE on the remaining seven PoE ports, and a total PoE power budget of 95W.

Key Configuration

Model: WI-PS210S(V2) | Product Type: Unmanaged PoE Switch | Total Ports: 10 x 100Mbps | Uplink Ports: 2 x 100Mbps | PoE-Out Ports: 8 x 100Mbps | PoE Output: Port 1 supports Hi-PoE up to 60W; ports 2-8 support 802.3af/at up to 30W | Total PoE Budget: 95W | DIP Switch Modes: VLAN, PD Alive, Extend | Extend Mode Distance: Up to 250m at 10Mbps | Package Contents: Device, power cable, Quick Installation Guide

Key Features

 · Provides ten 100Mbps ports for small network and surveillance deployments

 · Includes two 100Mbps uplink ports for network connectivity

 · Includes eight 100Mbps PoE-out ports for powered devices

 · First PoE-out port supports Hi-PoE output up to 60W

 · Remaining seven PoE-out ports support IEEE 802.3af/at PoE output up to 30W

 · Total PoE power budget of 95W supports multiple powered endpoints

 · Suitable for IP cameras, PTZ cameras, IP phones, and other PoE devices

 · VLAN mode enables port isolation so PoE ports can send data only to the uplink port

 · PD Alive mode detects and restarts unresponsive PoE-powered devices

 · Extend mode supports PoE transmission up to 250m when link speed is reduced to 10Mbps

 · Unmanaged operation supports quick deployment without software configuration

Technical Context

The WI-PS210S(V2) is intended for small PoE networks where cameras, PTZ cameras, IP phones, or other powered devices need simple 100Mbps connectivity and PoE power. The Hi-PoE first port is useful for higher-power endpoints, while the remaining PoE ports support standard 802.3af/at powered devices.

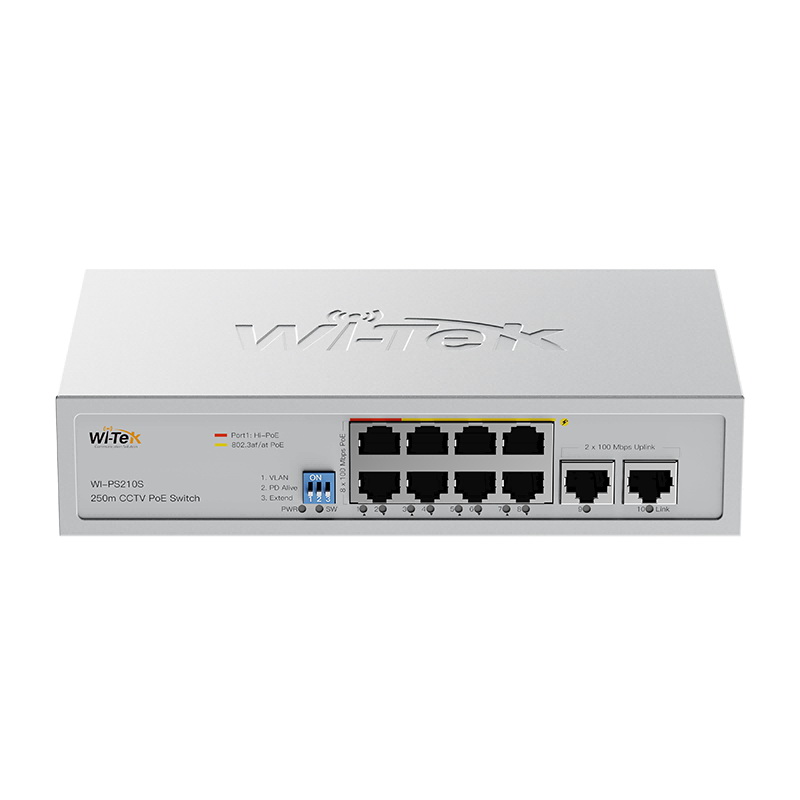

The front-panel DIP switch provides quick access to common deployment modes: VLAN for port isolation, PD Alive for automatic recovery of unresponsive PoE devices, and Extend for longer cable runs up to 250m at reduced link speed.

Installation Notes

The WI-PS210S(V2) is suitable for plug-and-play PoE access installations. PoE planning should account for the total 95W power budget, with up to 60W available on the first PoE-out port and up to 30W available on ports 2-8.
