Wi-Tek - WI-PS301-UPS - 12V/24V Smart Solar Controller
12V/24V Smart Solar Controller
Features:
- 12V/24V Smart Solar Controller
- Inside battery controller for 8A charge current Max charge and dis-cahrge battery circulatory
- Support 12-24V 400W Solar Pannel Input or DC 24V Input to charge 12V 80AH Battery Max
- 10hous charge full 12V 80AH lead-acid/lithium battery
- 2*12V/24V DC Outout, 2*DC output total 3A Max
- 6KV anti-thunder, small size design for outdoor used
- Support DIN-RAIL mounted
Product | WI-PS301-UPS |
Product Terminals | 2 x solar input terminals |

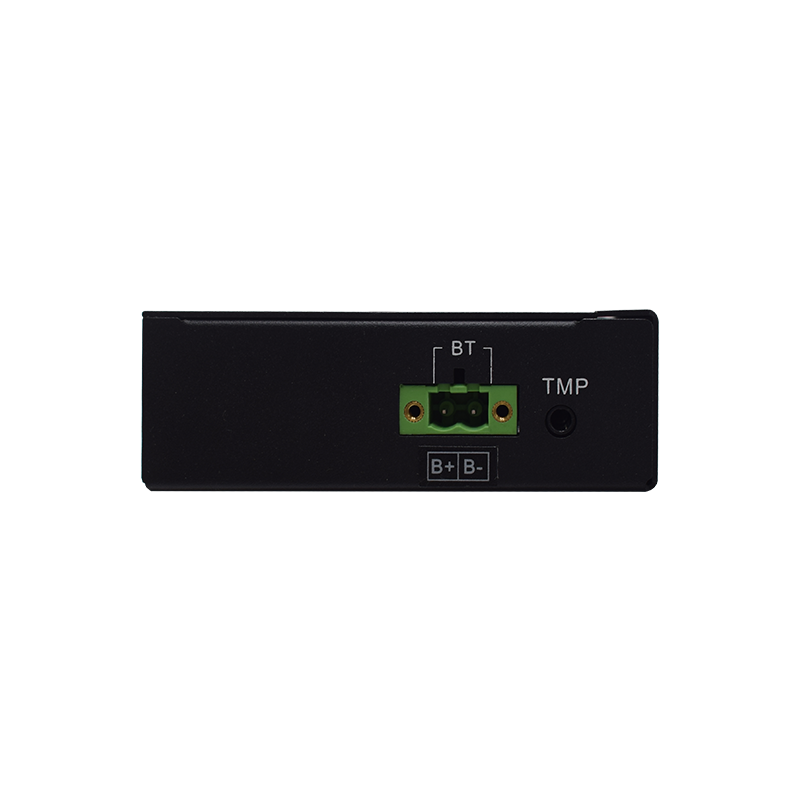

1 x battery input terminal | |
2 x DC output terminals | |
1 x temperature sensor terminal | |
Max Charge Current | 8A |
Solar Type | 12-24V 400W input (Open Circuit Voltage 18V~32V) |
Battery type | 12V lead-acid battery |
12.6V/14.8V lithium battery | |
Power Output | 12V Max 5A（Optional） |
24V Max 3A（Optional） | |
Protection | 6kV Surge Protection |
Over temperature protection for controller and battery | |
Input under voltage and over voltage protection | |
Output under voltage and over voltage protection | |
Reverse polarity protection | |
Output over current and short circuit protection | |
LED indicator | Sun: solar energy input indicator |
BT: battery status indicator | |
Bin: battery charging indicator | |
Bout: battery discharge indicator | |
QCE: 25% - 100%: battery power percentage indicator | |
DGA:% charging current percentage indicator | |
Certification | CE, FCC, RoHS； |
Package Dimension | 205 x132 x40mm |
Controller Dimension | 90x107x30mm |
Working Environment | Working Temperature: -20～+75°C；10%～90% （No condensation） Storage temperature: -40～+80°C；5%～90%（No condensation） |
