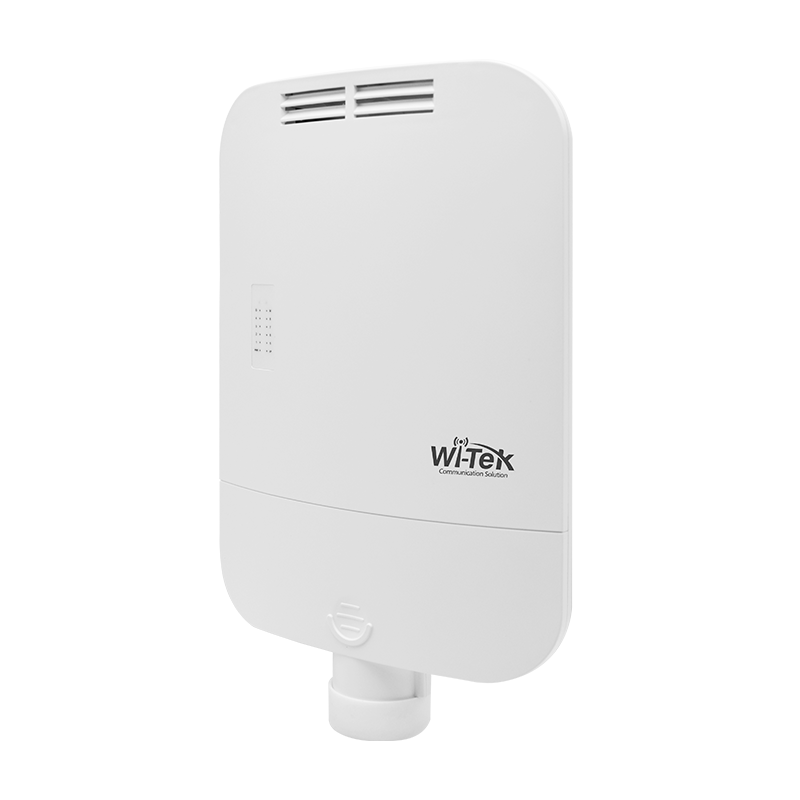

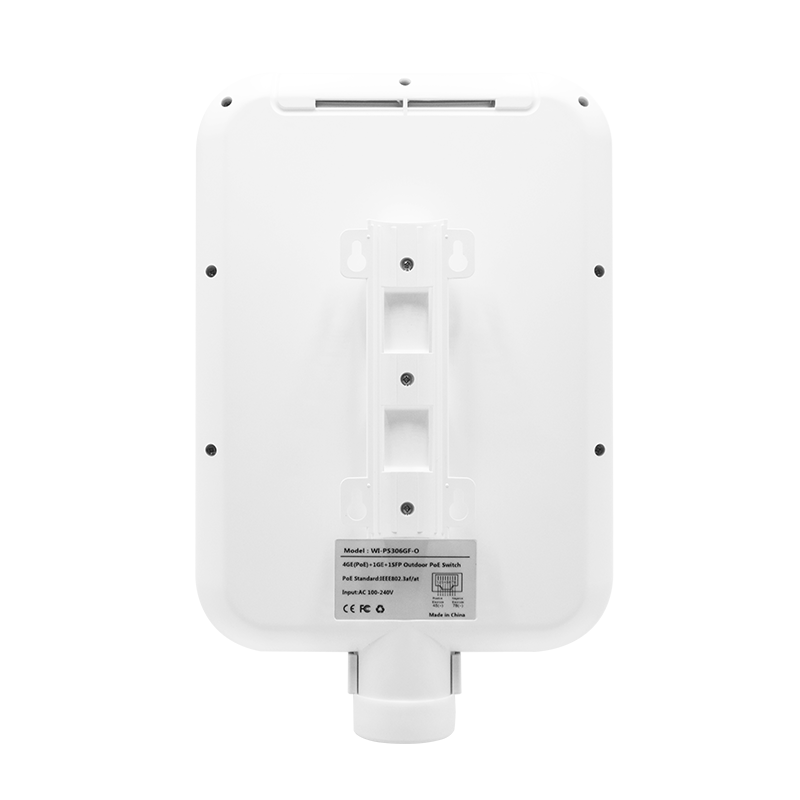

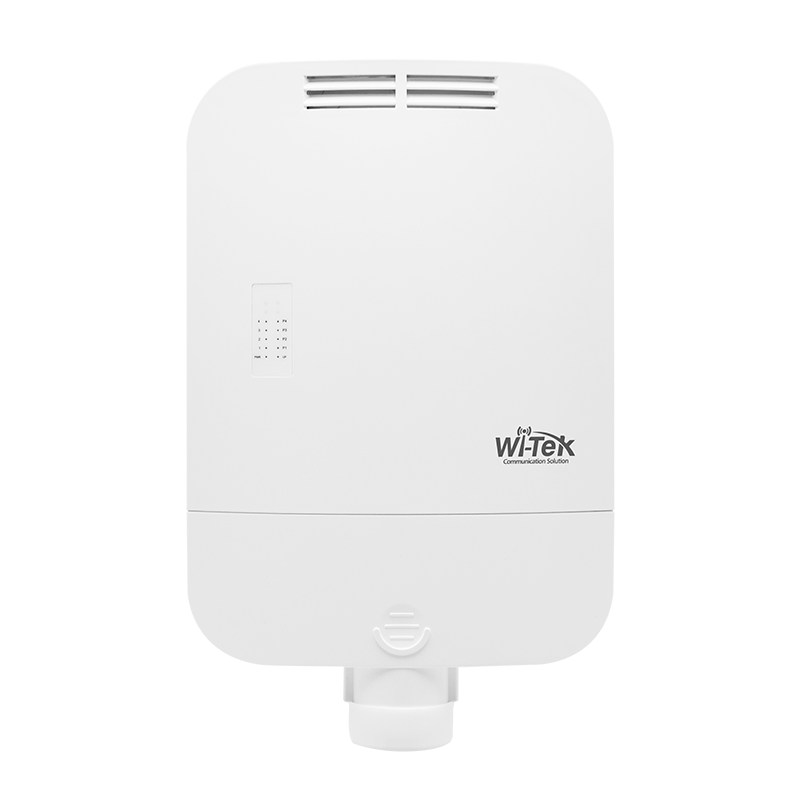

Wi-Tek Outdoor PoE Switch is a great solution for installers and customers, who now no longer have to order separate parts and assemble them into an outdoor enclosure box. Wi-Tek Outdoor PoE Switch comes with IP65 weather proof, 6kV surge protection, enabling your clients can be working in harsh environment with high performance. Wi-Tek Outdoor Waterproof 802.3af/at PoE Switch Series IP65 gigabit PoE switch featured is designed for industrial and commercial applications, e.g., video surveillance, remote security, commercial Wi-Fi installations.
Features:
- 4 10/100/1000Mbps RJ45 PoE Ports
- 1 100/1000Mbps Uplink Ports
- 1 100/1000Mbps SFP Slot
- IP65 weatherproof enclosure
- Working temperare:-30℃ ~70℃
- All-in-one for easy installation
| Specifications | |
| Products | WI-PS306GF-O |
| Hardware Features | |
| Hardware Version | V1 |

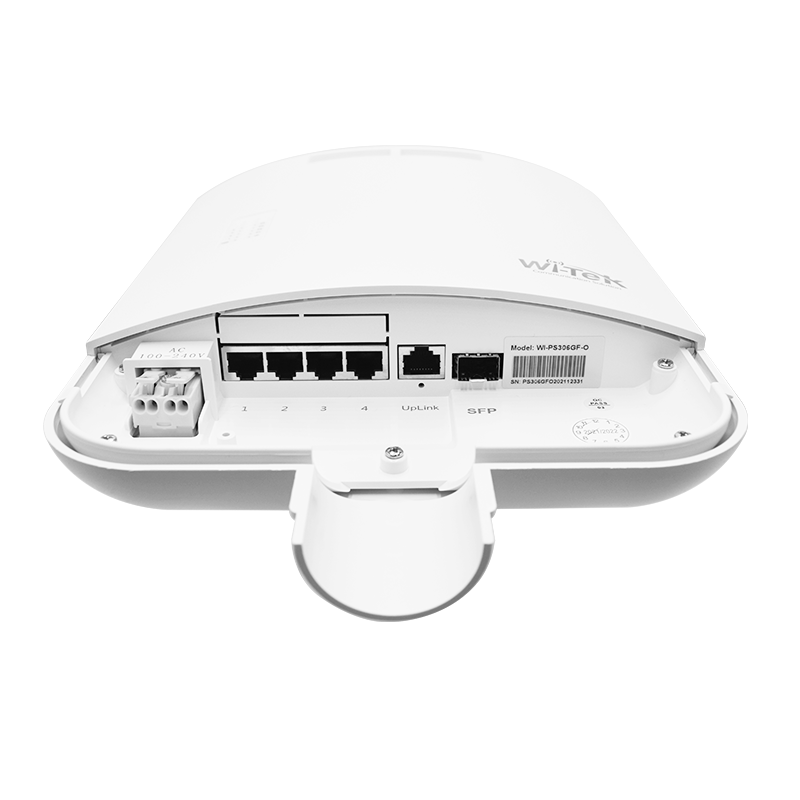

| Interface | 4 10/100/1000Mbps RJ45 PoE Ports 1 100/1000Mbps Uplink Ports 1 100/1000Mbps SFP Slot |
| PoE Ports | Port 1- 4: 802.3af/at |
| Network Media | 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(≤100m) 1000BASE-TX: 6 Category and above UTP(≤150m) |
| Power Supply | AC 100-240V 50-60Hz |
| Power Budget | 65W |
| Exchange Capacity | 12Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Mac Address Table | 4k |
| Protection | 6kV PoE Surge Protection 10kV AC Surge Protection |
| Jumbo Frame | 10240Bytes |
| SOFTWARE FEATURES | |
| Advanced Functions | Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 370×240×76 mm |
| Switch Dimension | 215×345×48 mm |
| Gross Weight | 1.36kg |
| Net Weight | 1.02kg |
| Package Contents | 1 × PoE Switch 1 × Pole mounting KIT 1 × Quick Installation Guide |
| Environment | Working Temperature: -30℃ ~70℃(22℉~158 ℉) Storage Temperature: -40℃~70 ℃ (-40~158 ℉) Operating Humidity: 10~90% RH non-condensing Storage Humidity: 5~90% RH non-condensing |
