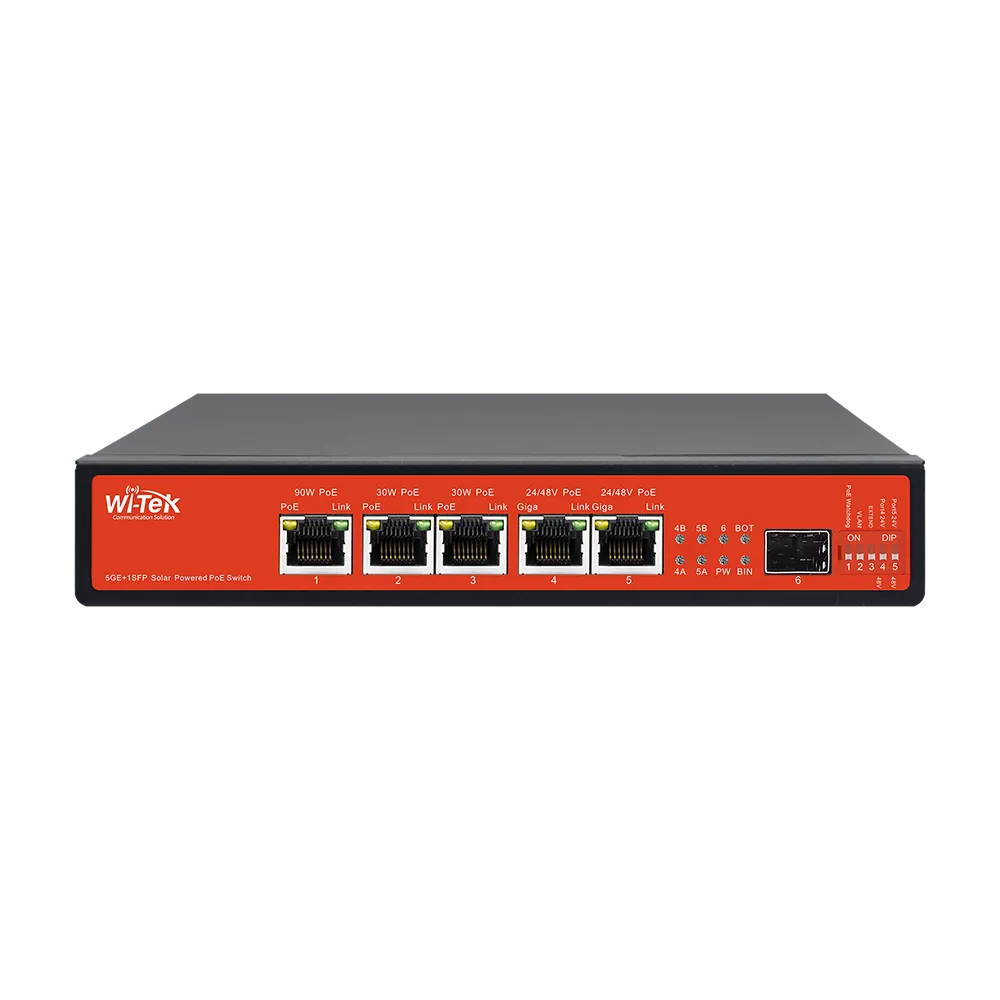

Wi-Tek - WI-PS306GF-UPS V4 - Unmanaged Solar Powered Switch

Product Overview

This Wi-Tek Unmanaged Solar Powered Switch is designed for solar-powered PoE access deployments where remote network devices require Gigabit connectivity, PoE output, fiber uplink support, and battery-backed operation. It provides five 1000Mbps PoE RJ45 ports, one 1000Mbps SFP slot, photovoltaic input, battery charging and discharging, DC input, and RS-485 connectivity for WI-IOT100 cloud management integration.

Key Configuration

Product Type: Unmanaged Solar Powered PoE Access Switch | PoE Ports: 5 x 1000Mbps RJ45 | SFP Slot: 1 x 1000Mbps | PoE Output: Port 1 supports 802.3bt up to 90W; ports 2-3 support 802.3af/at up to 30W; ports 4-5 support 802.3af/at up to 30W PoE or 24V passive PoE up to 24W | PoE Budget: Up to 120W for the whole switch | Photovoltaic Input: 1 input | Battery Function: 1 battery charging and discharging interface | DC Input: 1 input | Max Battery Charging Current: 10A | Cloud Interface: 1 x RS-485 for WI-IOT100 | Functions: PoE Watchdog, Port VLAN, Extend Function

Key Features

 · Solar powered unmanaged PoE switch for outdoor and remote network deployments

 · Provides five 1000Mbps PoE RJ45 ports for powered network devices

 · Includes one 1000Mbps SFP slot for fiber uplink connectivity

 · Port 1 supports IEEE 802.3bt PoE output up to 90W

 · Ports 2-3 support IEEE 802.3af/at PoE output up to 30W

 · Ports 4-5 support IEEE 802.3af/at PoE output up to 30W or 24V passive PoE up to 24W

 · Total PoE power budget of up to 120W supports multiple powered endpoints

 · Includes RS-485 interface for connection to WI-IOT100 cloud management

 · Provides one photovoltaic input for solar power integration

 · Supports one battery charging and discharging interface

 · Includes one DC input for additional power source flexibility

 · Supports up to 10A maximum battery charging current

 · PoE watchdog helps detect and restart unresponsive powered devices

 · Port VLAN function supports traffic isolation

 · Extend function supports longer-distance PoE transmission scenarios

Technical Context

This switch is intended for solar-powered CCTV, wireless, and remote network sites where PoE devices need power and data without relying only on conventional grid power. Photovoltaic input, DC input, and battery charging/discharging support provide flexible power options for off-grid or backup-powered PoE infrastructure.

The RS-485 interface allows integration with WI-IOT100 for cloud management, while the SFP slot supports fiber uplink connectivity where longer backbone links or electrically isolated network paths are required.

Installation Notes

This unmanaged solar powered switch should be planned around photovoltaic input capacity, DC input availability, battery sizing, PoE load, and uplink requirements. Confirm the total 120W PoE budget, 10A maximum charging current, and whether ports 4-5 will operate in standard PoE or 24V passive PoE mode before deployment.
