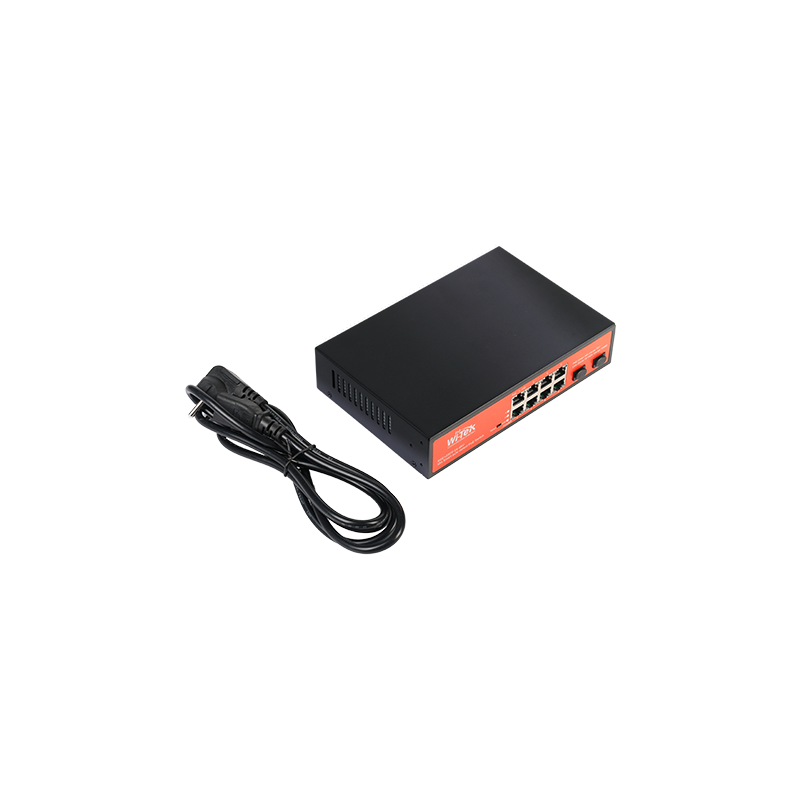

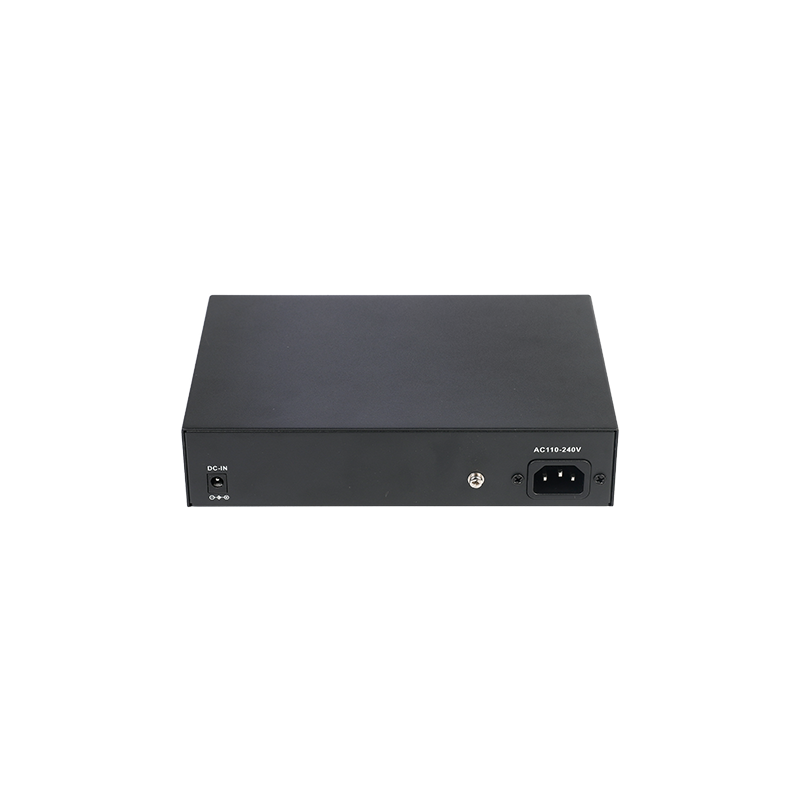

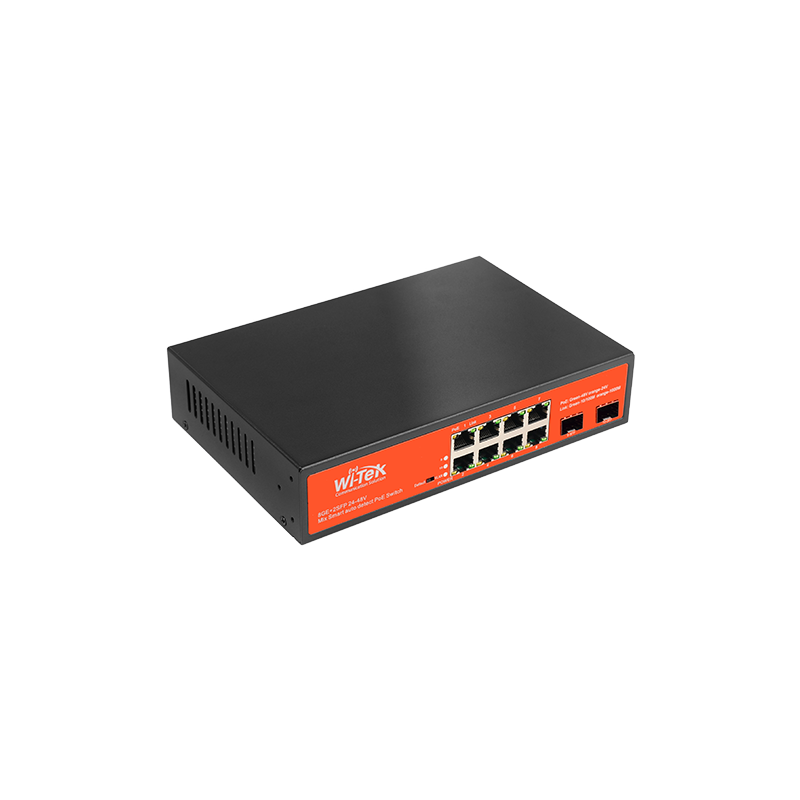

Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch

Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch

Part number:
WI-PS310GF-Alien
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The Alien PoE Switch Series was designed specifically for the WISP with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need a switch.



Features:

  • 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
  • Wi-Tek Smart PoE Tech support 24-48v PoE output via auto-detect
  • Support overcurrent protection/short-circuit protection
  • 2SFP fiber port for fiber uplink port up 20KM
  • Support 48v 802.3af/at and 24v Passive PoE both
  • Internl 150W power,dual PoE voltage output design
  • 8xPoE Port output
HARDWARE FEATURESWI-PS310GF-Alien
Hardware VersionV1
L2 ManagedNo
Interface8 10/100/1000Mbps RJ45 Ports
2 1000Mbps SFP Slots
PoE PortPort 1- 8: 802.3af/at and 24V Passive
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Fan QuantityFanless
Power Consumption150W (max. with PoE device connected)
External Power SupplyAC 110~240V  50/60HZ
DC 48-55V 5A Max
Exchange Capacity20Gbps
Packet Forwarding Rate14.9Mpps
Mac Address Table4K
Packet Buffer Memory1.5Mb
Jumbo Frame10240 Bytes
Protection Level6kV Lightning protection
6kV ESD Contact discharge
Transmission MethodStore and Forward
 Advanced FunctionsMac Address Auto-Learning And Auto-Aging
Store and forward
IEEE 802.3x  flow control for
Full-duplex Mode
Backpressure for Half-duplex Mode
OTHERS
CertificationCE, FCC, RoHS
Package Dimension270×256×65 mm
Switch Dimension205×140×45 mm
Gross Weight1.64kg
Net Weight1.05kg
Package Contents1× PoE Switch
1× Power Cord
1× Installation Guide
Working EnvironmentWorking Temperature：-10℃～55℃
Storage temperature ：-40℃～70℃
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing
Name
Description
Size
Downloads
File
Datasheet
1.3mb
