Break the PoE distance limitation! Wi-Tek provides a robust and cost-effective PoE solution to power up your CCTV, Access point and other IP-based devices which up to 250m away. Most robust features like Extend Mode, PoE Watchdog Function, Port Isolation, provide a lot of value for basic networking needs, creating a versatile and reliable surveillance network to grow your business.
PoE 250m Long Distance to Extend Network:
DIP switch provides Extend Mode. All PoE ports can transmit data and power up to 250 meters. No further hardware or configuration is necessary, easy-to-use and cost-saving. Perfect for surveillance camera deployment in large areas.
Smart PoE Watchdog to Reboot Camera Automatically:
All PoE ports enable PoE watchdog function, which can detect and reboot the offline compliant PoE powered devices.
Port Isolation to Prevent Broadcast Storm:
With VLAN Mode, all PoE ports only can communicate with uplink ports. Avoid data leakage between each port and prevent broadcast storm from disabling network.
Features:

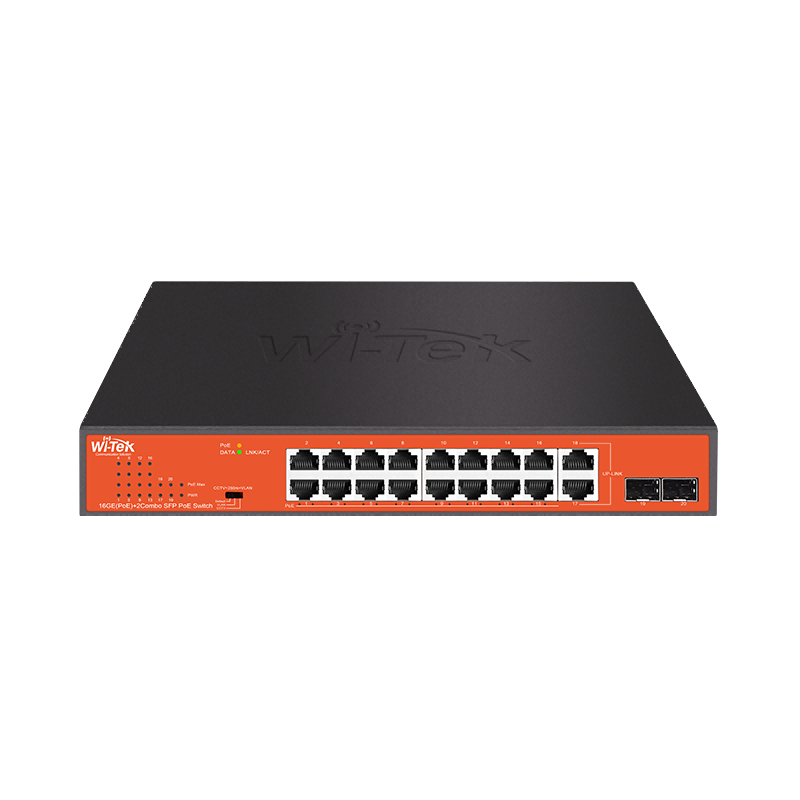

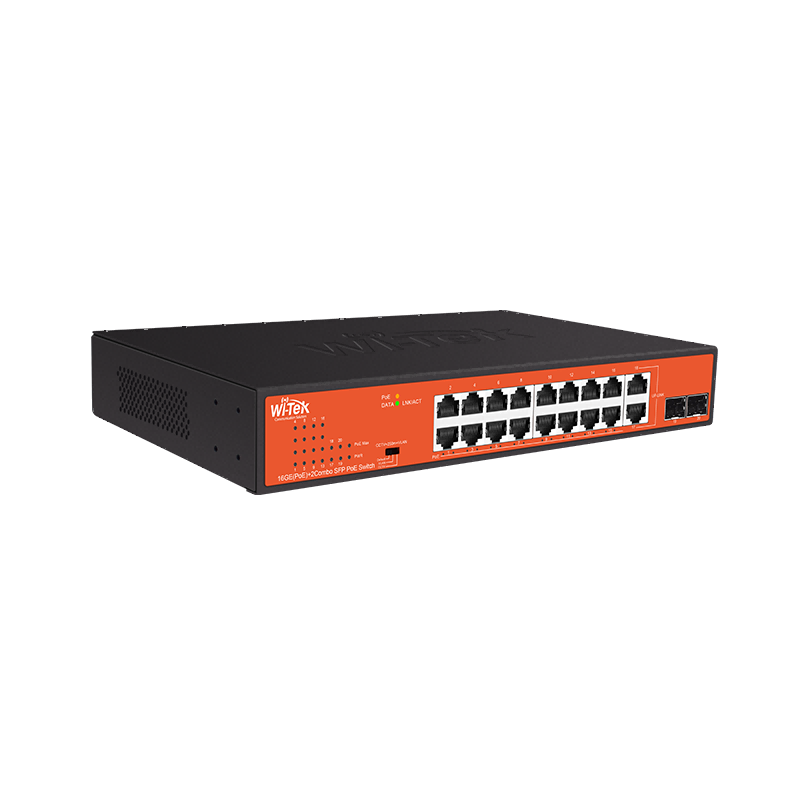

- 16GE+2Combo SFP Full Giga 802.3af/at PoE Switch with 16Port PoE
- Supports PoE power up to 30W for each port
- Supports PoE IEEE 802.3af/at compliant PDs
- Internal power adapter supply 350W
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Support QVLAN,QoS and IGMP snooping optimize voice and video application
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
