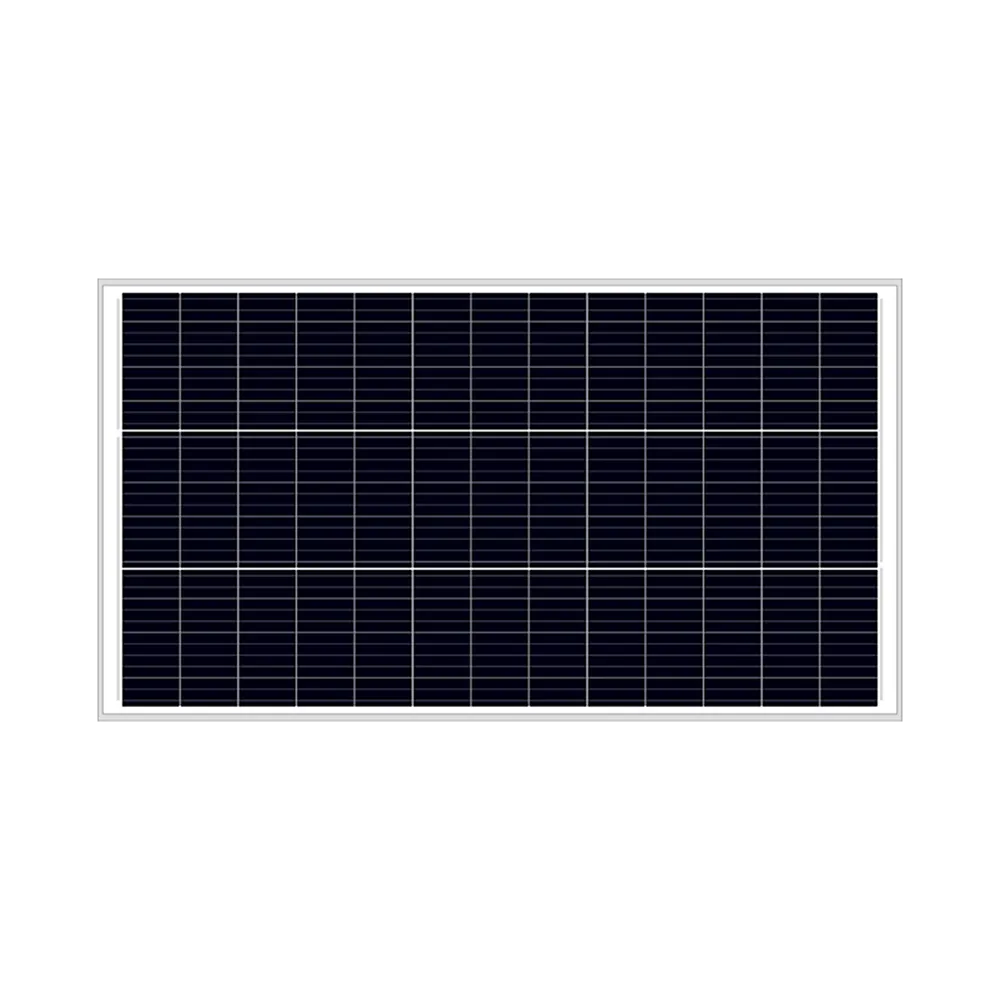

Wi-Tek - WI-PV200-39 - Solar Panel

Product Overview

The Wi-Tek WI-PV200-39 is a high-efficiency solar panel designed for solar-powered PoE switch applications. Built with single-crystal silicon cells, it delivers 200W output and includes an IP65-rated junction box plus two MC4 extension cords for easier connection to compatible solar-powered PoE switch systems.

Key Configuration

Model: WI-PV200-39 | Product Type: Solar Panel | Application: Solar-powered PoE switch systems | Panel Type: Single-crystal silicon | Rated Power: 200W | Maximum Power Voltage: 22.0V | Maximum Power Current: 9.1A | Open Circuit Voltage: 28.0V | Short Circuit Current: 11.65A | Junction Box Protection: IP65 | Included Accessories: Two MC4 extension cords

Key Features

 · High-efficiency solar panel designed for solar-powered PoE switch deployments

 · 200W single-crystal silicon panel supports reliable solar power generation

 · Maximum Power Voltage is 22.0V

 · Maximum Power Current is 9.1A

 · Open Circuit Voltage is 28.0V

 · Short Circuit Current is 11.65A

 · IP65-rated junction box supports outdoor installation environments

 · Includes two MC4 extension cords for easier connection to a solar-powered PoE switch

Technical Context

This solar panel is intended to provide renewable power for Wi-Tek solar-powered PoE switch deployments and related outdoor network infrastructure. Its 200W output and single-crystal silicon design make it suitable for installations that require dependable solar charging capacity.

The IP65 junction box helps protect the electrical connection area from dust and water exposure, while the included MC4 extension cords simplify wiring between the panel and the solar-powered PoE switch system.

Installation Notes

The WI-PV200-39 should be installed with proper orientation, mounting support, and cable routing for the target solar-powered PoE switch application. Confirm voltage, current, and connector compatibility before connecting the panel to the power system.
