Wi-Tek - WI-SFP10L-10G-20KM-I - Industrial SFP Module

Product Overview

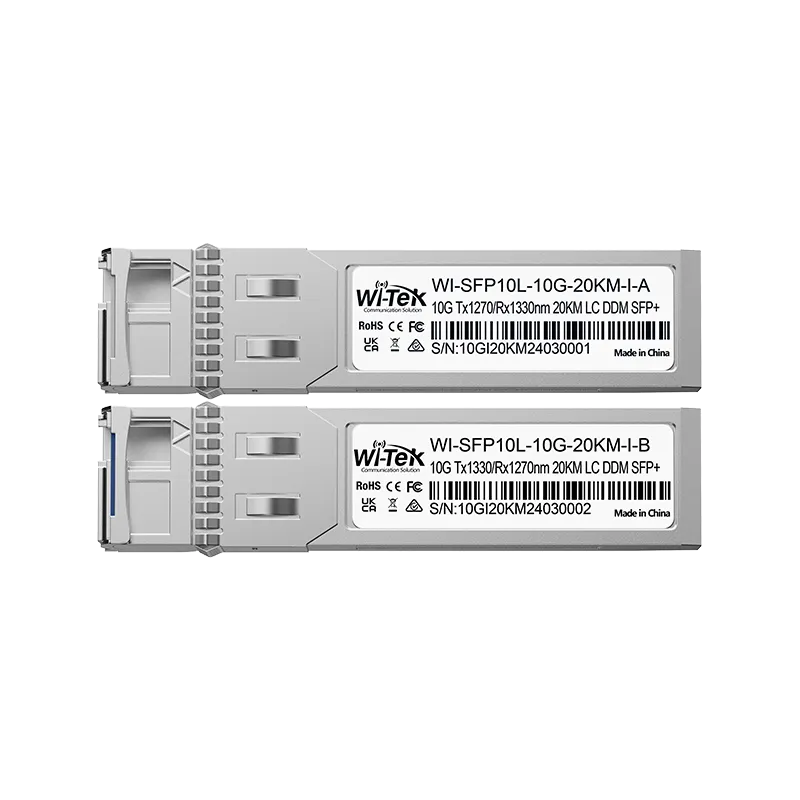

WI-SFP10L-10G-20KM-I is an industrial 10 Gbps SFP+ optical transceiver designed to extend network connections over single-mode fiber up to 20 km. It uses a simplex LC connector, supports bidirectional wavelength options, and includes Digital Diagnostic Monitoring for reliable operation from -40°C to 85°C.

Key Configuration

Model: WI-SFP10L-10G-20KM-I | Data Rate: 10 Gbps | Maximum Cable Length: 20 km | Fiber: Single-mode | Connector: Simplex LC | Wavelength Options: A Tx1270/Rx1330 nm, B Tx1330/Rx1270 nm | Power Supply: 3.3 V | Power Consumption: 1 W max

Key Features

• · Supports 10 Gbps data transmission
• · Extends single-mode fiber links up to 20 km
• · Uses a simplex LC optical connector
• · Supports wavelength option A: Tx1270 nm/Rx1330 nm
• · Supports wavelength option B: Tx1330 nm/Rx1270 nm
• · Uses a DFB transmitter and PIN/TIA receiver
• · Provides transmitter power of -6 to -1 dBm and receiver sensitivity below -14 dBm
• · Supports Digital Diagnostic Monitoring (DDM)
• · Supports MSA SFF-8472, MSA SFF-8431, and IEEE 802.3ae-2002
• · Supports operation from -40°C to 85°C with 10%-90% non-condensing humidity

Technical Context

The simplex transceiver uses bidirectional wavelength options to transmit and receive 10 Gbps data over a single optical fiber, reducing fiber-pair requirements for long-distance links. Its 20 km reach and DDM support provide high-capacity connectivity with monitoring of key operating parameters in compatible SFP+ equipment.

Installation Notes

Insert the module into a compatible SFP+ slot and connect the simplex LC fiber to the matching optical module at the remote end. Select matching A/B wavelength versions for the link and use single-mode fiber. The module is hot-pluggable and supports plug-and-play operation without additional configuration.
