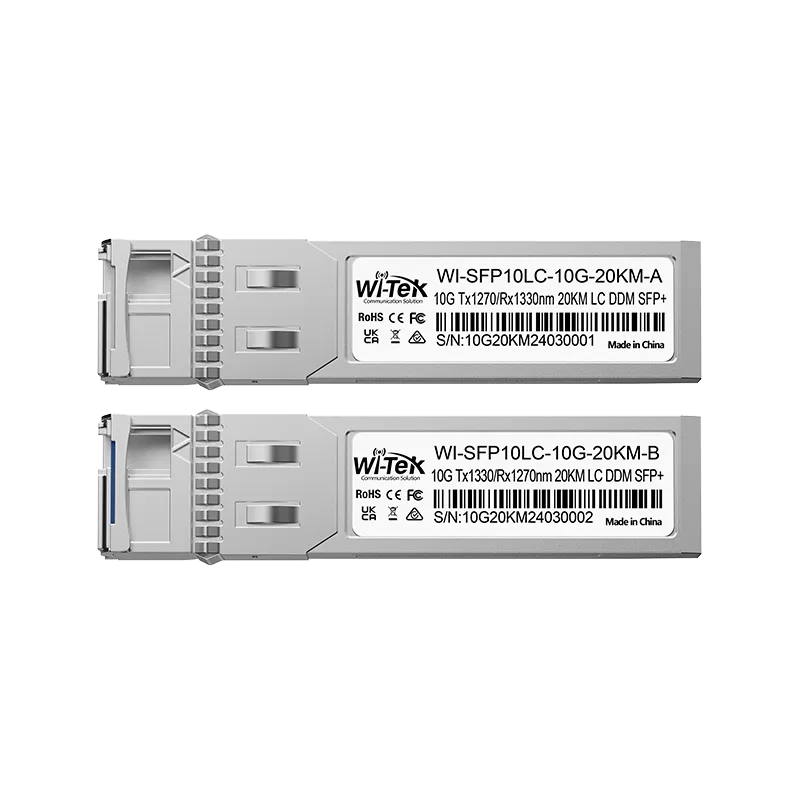

Wi-Tek - WI-SFP10LC-10G-20KM - Commercial SFP Module

Product Overview

WI-SFP10LC-10G-20KM is a 10 Gbps SFP+ LR optical transceiver designed to extend network connections over single-mode fiber. It uses a simplex LC connector, supports transmission distances up to 20 km, and provides Digital Diagnostic Monitoring for compatible network equipment.

Key Configuration

Model: WI-SFP10LC-10G-20KM | Data Rate: 10 Gbps | Maximum Cable Length: 20 km | Fiber: Single-mode | Connector: Simplex LC | Wavelengths: A Tx1330/Rx1270 nm, B Tx1270/Rx1330 nm | Power Supply: 3.3 V

Key Features

• · Supports 10 Gbps data transmission using SFP+ LR technology
• · Extends single-mode fiber links up to 20 km
• · Uses a simplex LC optical connector
• · Supports wavelength pair A: Tx1330 nm/Rx1270 nm
• · Supports wavelength pair B: Tx1270 nm/Rx1330 nm
• · Uses a DFB transmitter and PIN/TIA receiver
• · Provides transmitter power of -6 to -1 dBm and receiver sensitivity below -14 dBm
• · Supports Digital Diagnostic Monitoring (DDM)
• · Supports SFP MSA, MSA SFF-8472, MSA SFF-8431, and IEEE 802.3ae-2002
• · Supports operation from 0°C to 70°C with 10%-90% non-condensing humidity

Technical Context

The module converts 10 Gbps electrical network data into optical signals for long-distance transmission over single-mode fiber and converts received optical signals back to electrical data. Its wavelength options, 20 km reach, and DDM support enable flexible fiber deployment with monitoring of key transceiver operating parameters in compatible SFP+ equipment.

Installation Notes

Insert the module into a compatible SFP+ slot and connect the simplex LC fiber link to the corresponding optical interface. Use single-mode fiber and install a matching A/B wavelength module at the remote end. The transceiver is hot-pluggable and supports plug-and-play operation without additional configuration.
