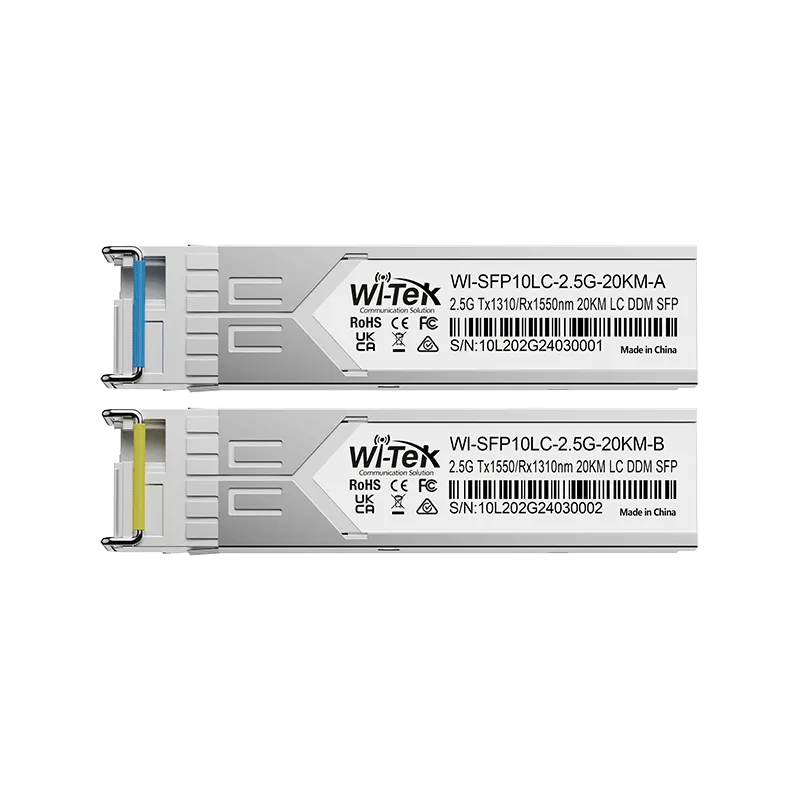

Wi-Tek - WI-SFP10LC-2.5G-20KM - Commercial SFP Module
Part number:
Price:
Highlight Features
● Simplex LC, Max.Data Rate of up to 2.5Gbps
● Long Distance Transmission of up to 20KM
● Plug and Play, Zero Configuration
● Hot Pluggable SFP MSA Compliant
● Digital Diagnostic Monitoring for Strong Diagnostic Capabilities
● High Compatibility
● Lower Power Consumption Less Than 1W
● Withstand Harsh Environment with Temperature 0℃~70℃ (32℉~158℉)
| General | |
| Model | WI-SFP10LC-2.5G-20KM |
| Product Type | Multi-Gigabit SFP Module |
| Form Factor | SFP |
| Optical Specifications | |
| Data Rate | 2.5 Gbps |
| Maximum Cable Length | 20 km |
| Wavelength | A: Tx 1310 nm / Rx 1550 nm B: Tx 1550 nm / Rx 1310 nm |
| Transmitter Type | DFB |
| Receiver Type | PIN/TIA |
| Transmit Power | -6 to 0 dBm |
| Receiver Sensitivity | <-22 dBm |
| Fiber Type | Single-mode fiber |
| Connector | Simplex LC |
| Electrical Specifications | |
| Power Supply | 3.3 V DC |
| Power Consumption | ≤1 W |
| Digital Diagnostic Monitoring | Supported |
| Compatibility and Protocols | |
| Compliance | SFP MSA compliant |
| Protocol | ITU-T G.957 |
| MTBF | / |
| Environmental | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 10% to 90%, non-condensing |
| Storage Humidity | 5% to 90%, non-condensing |
| Certifications | |
| Certifications | CE, FCC, UKCA, RoHS, RCM |
