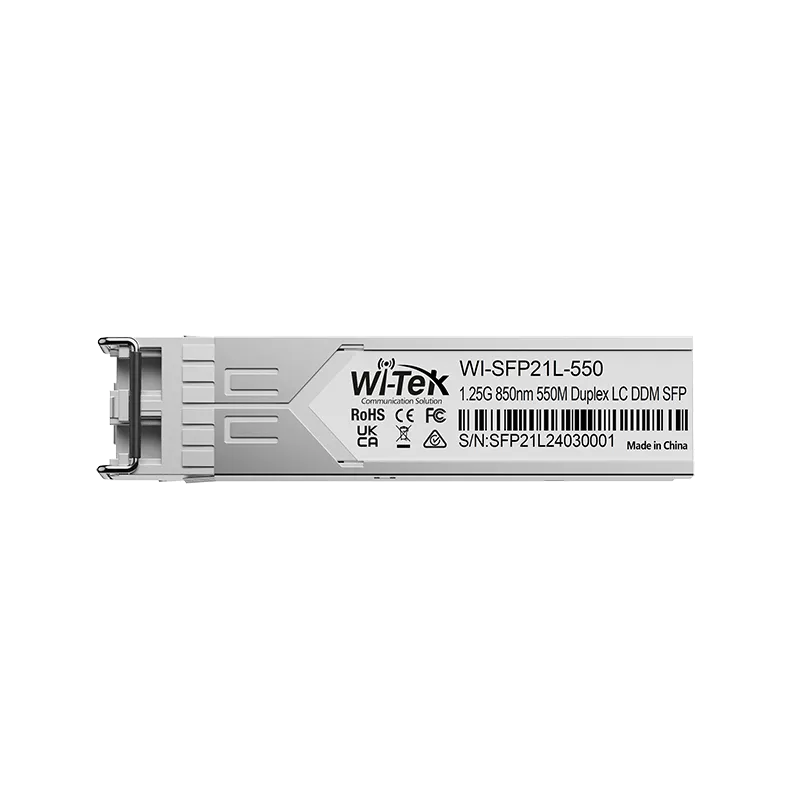

Wi-Tek - WI-SFP21L-550 - Commercial SFP Module

Product Overview

WI-SFP21L-550 is a 1.25 Gbps SFP optical transceiver designed for short-distance network connections over multimode fiber. It uses a duplex LC connector, operates at 850 nm, and supports transmission distances up to 550 m with Digital Diagnostic Monitoring.

Key Configuration

Model: WI-SFP21L-550 | Data Rate: 1.25 Gbps | Maximum Cable Length: 550 m | Fiber: Multimode | Connector: Duplex LC | Wavelength: 850 nm | Power Supply: 3.3 V

Key Features

• · Supports 1.25 Gbps data transmission
• · Extends multimode fiber links up to 550 m
• · Uses a duplex LC optical connector
• · Operates at an 850 nm wavelength
• · Uses a VCSEL transmitter and PIN/TIA receiver
• · Provides transmitter power of -9 to -3 dBm and receiver sensitivity below -18 dBm
• · Supports Digital Diagnostic Monitoring (DDM)
• · Uses a 3.3 V power supply with consumption up to 1 W
• · Supports SFP MSA, MSA SFF-8472, and IEEE 802.3Z compatibility
• · Supports operation from 0°C to 70°C with 10%-90% non-condensing humidity

Technical Context

The transceiver converts electrical network data into optical signals for transmission over multimode fiber and converts received optical signals back to electrical data. Its 850 nm wavelength, 550 m reach, and DDM support provide a practical fiber uplink solution for compatible SFP network equipment.

Installation Notes

Insert the module into a compatible SFP slot and connect the duplex LC fiber pair to the optical link. Use multimode fiber and ensure that the remote transceiver or module matches the 1.25 Gbps, 850 nm, 550 m optical specification. The module is hot-pluggable and supports plug-and-play operation.
