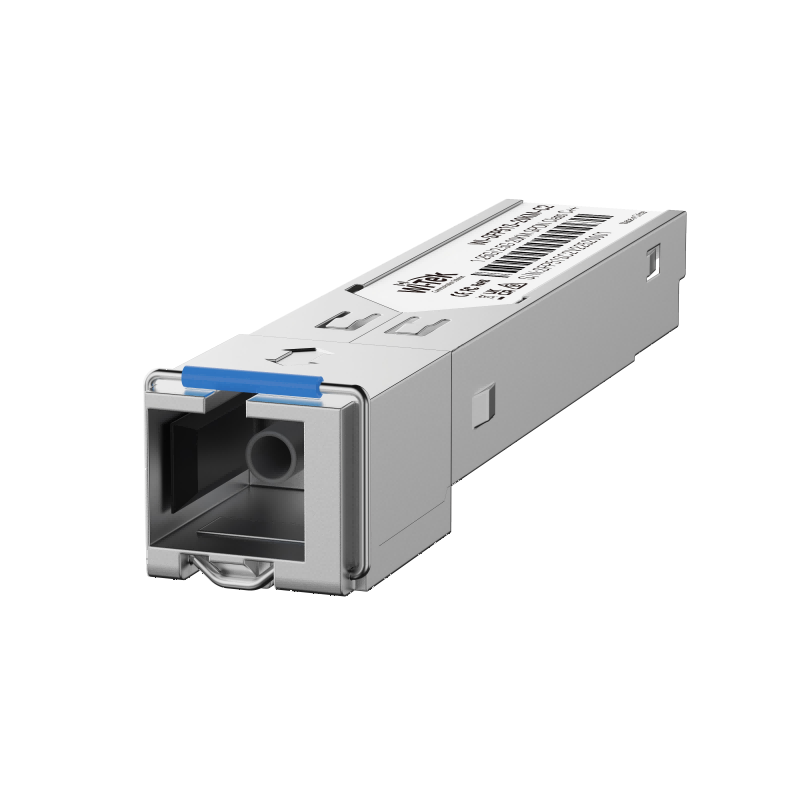

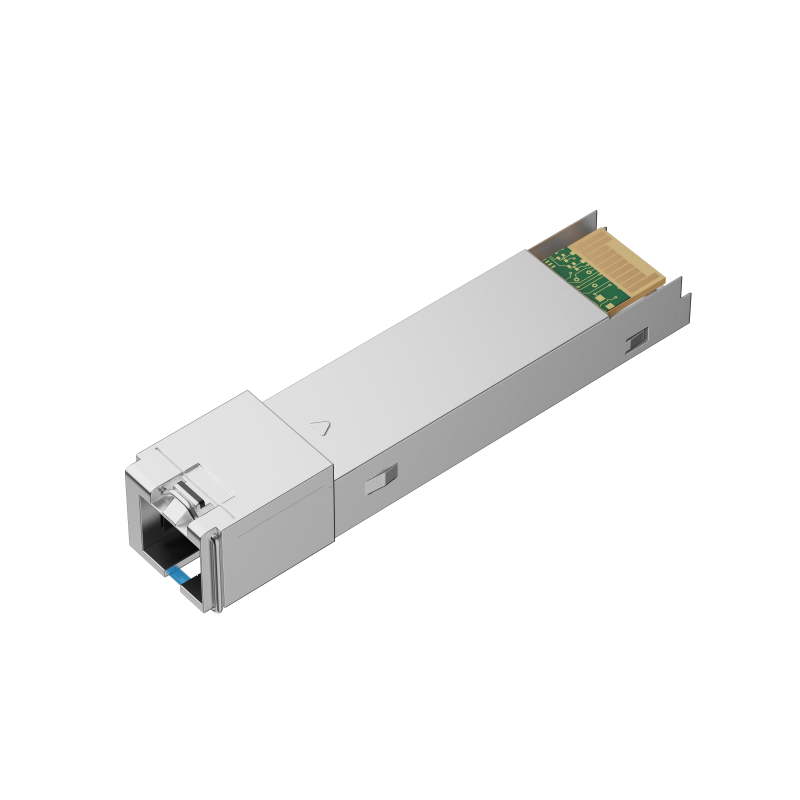

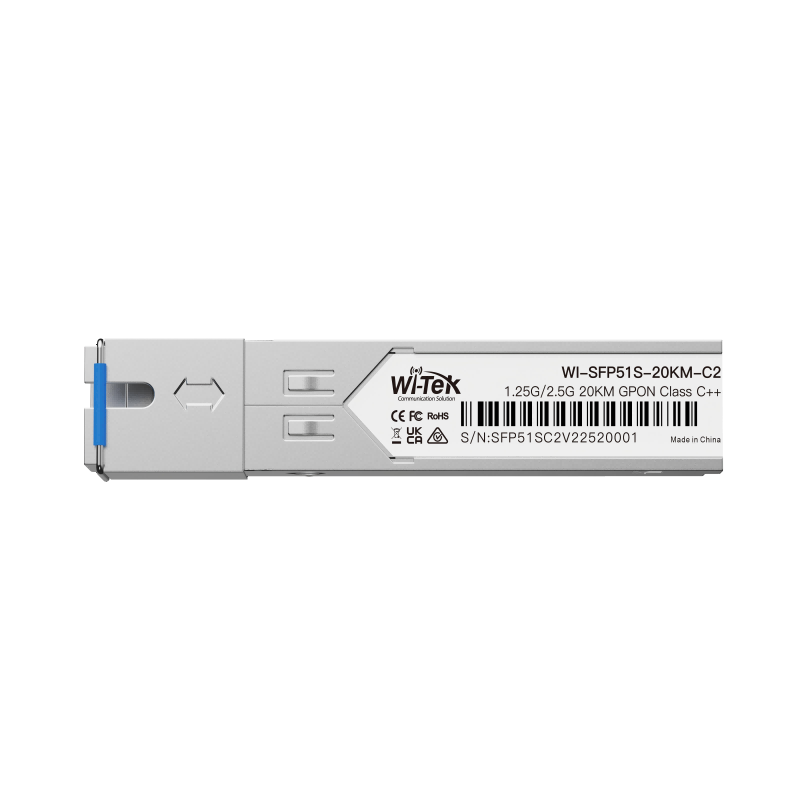

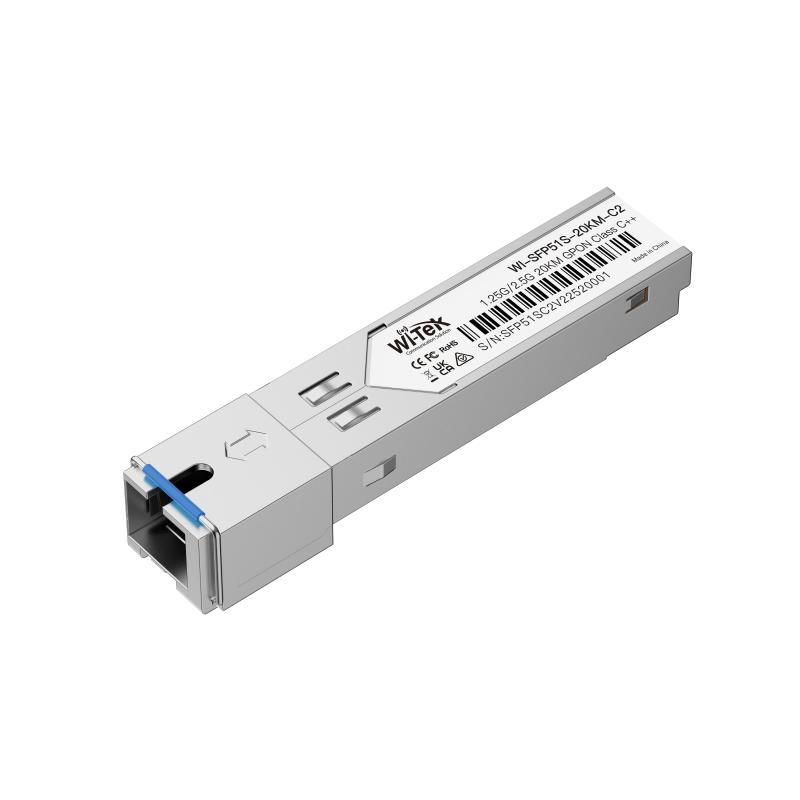

Wi-Tek - WI-SFP51S-20KM-C2 V2 - 1.25G/2.5G GPON SFP Module Class C++
Part number:
Price:
Highlight Features
● SFP with SC/PC Connector Transceiver
● 1490nm DFB TX with isolator and 1310nm APD RX
● Transmission Rate of up to 2.5Gbps-TX/1.25Gbps-RX
● Max Transmission Distance of up to 20km
● Plug and Play, Zero Configuration
● Hot Pluggable
● DDM for Strong Diagnostic Capabilities
● RX Fast Burst Mode Detection
● Compliant with ITU-T G.984.2, and RoHS
● 0~70°C Operation Temperature
| Model | WI-SFP51S-20KM-C2 |
| Hardware Version | V2 |
| Form Factor | SFP |
| Max Transmission Distance | 20km |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | APD |
| Tx Power | 5~7dBm |
| Wavelength | 1490nm-TX / 1310nm-RX |
| Data Rate | 2.488G-TX / 1.244G-RX |
| Connector | SC/UPC |
| Class | C++ |
| Power Consumption | <1.6W |
| Extinction Ratio | <9dB |
| Application | OLT GPON |
| Certification | RoHS |
| Max Link Budget | 37dB |
| Receiver Overload | >-12dBm |
| Receiver Sensitivity | <-30dBm |
| Protocols | ITU-T G.984.2 |
| DDM | Supported |
| Operating Temperature | 0~70°C |
