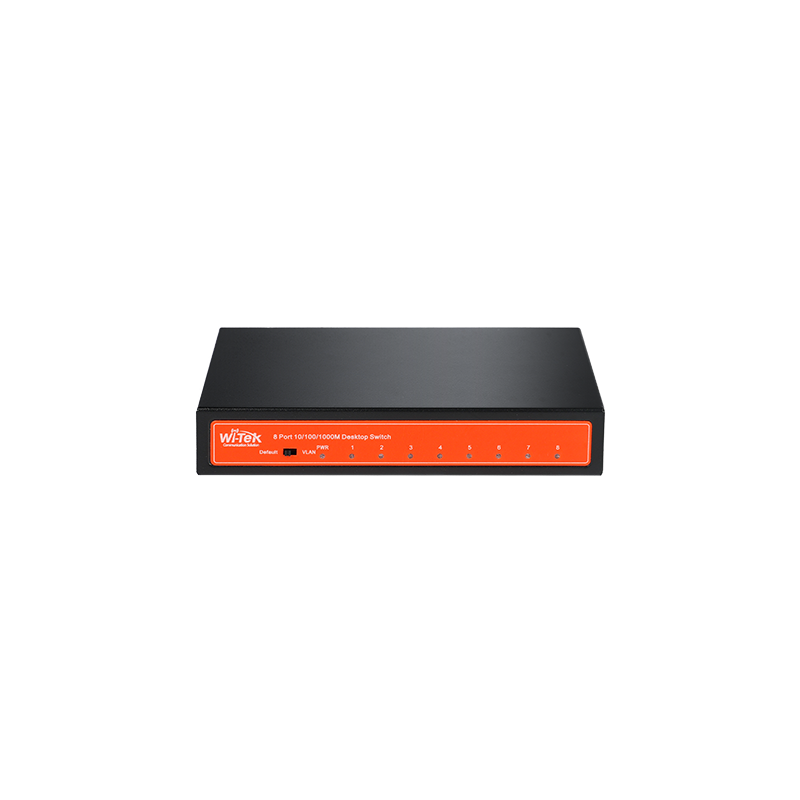

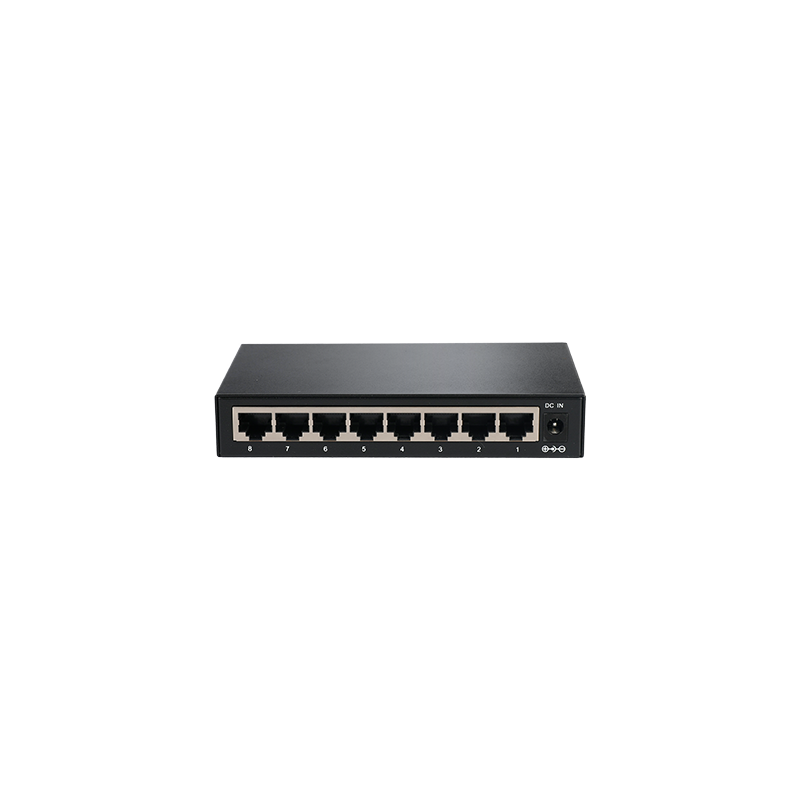

Wi-Tek - WI-SG108 - 8xGigabit Ethernet Switch with Steel Case
Part number:
WI-SG108
Price:
8xGigabit Ethernet Switch with Steel Case
Features:
- 8xGigabit Ethernet Switch with Steel Case
- 8 Auto-Negotiation, Auto-MDI/MDIX Ethernet ports provide smart switching
- Support Port VLAN avoid broadcast storm
- Fanless design ensures quiet operation without disturbing your family
| HARDWARE FEATURES | WI-SG108 |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 8 100/1000Mbps RJ45 Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| DIP Switch | Default/VLAN |
| Fan Quantity | Fanless |
| Exchange Capacity | 16G |
| Packet Forwarding Rate | 11.9Mpps |
| Mac Address Table | 4K |
| Power Adapter | DC 5-15V |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 10240 Bytes |
| Port VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 210×170×43 mm |
| Switch Dimension | 140×78×25 mm |
| Gross Weight | 0.49kg |
| Net Weight | 0.28kg |
| Package Contents | 1 × Gigabit Switch |
| 1 × Power Adapter | |
| 1 × Quick Installation Guide | |
| Working Temperature | -10℃～55℃ |
| Storage Temperature | -40℃～70℃ |
| Working Humidity | 10%～90% RH |
| non-condensing | |
| Storage Humidity | 5%～90% RH non-condensing |
Name
Description
Size
Downloads
File
Quick Start Guide
0.6mb
