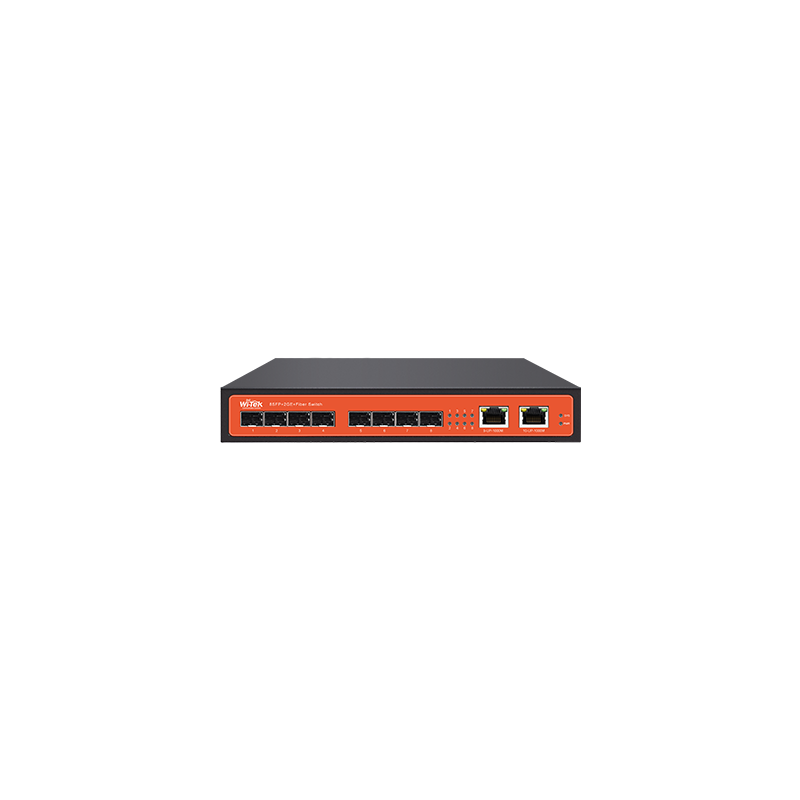

Wi-Tek - WI-SG310F - 8SFP+2GE Gigabit rack-mountable Fiber Ethernet Switch
Part number:
WI-SG310F
Price:
8SFP+2GE Gigabit rack-mountable Fiber Ethernet Switch
Features:
- 8SFP+2GE Gigabit rack-mountable Fiber Ethernet Switch
- 10 Auto-Negotiation, Auto-MDI/MDIX Ethernet ports provide smart switching
- Plug and Play design simplifies installation
- Plans different power output for different cable lengths
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x standards
| HARDWAR EFEATURES | WI-SG310F |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 2 10/100/1000Mbps RJ45 Ports |
| 8 1000Mbps SFP Slots | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| LED Indicator | PoE/Link/Power |
| Fan Quantity | Fanless |
| Exchange Capacity | 20G |
| Packet Forwarding Rate | 14.9Mpps |
| Mac Address Table | 4k |
| Power Adapter | DC IN: 12V 2A |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 10240Bytes |
| Port VLAN | No |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 298×205×56mm |
| Switch Dimension | 223×102×35mm |
| Gross Weight | 0.97kg |
| Net Weight | 0.6kg |
| Package Contents | 1 × Switch |
| 1 × Power Cord | |
| 1 × Quick Installation Guide | |
| Working Temperature | -10℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Working Humidity | 10%~90% RH non-condensing |
| Storage Humidity | 5%~90% RH non-condensing |
