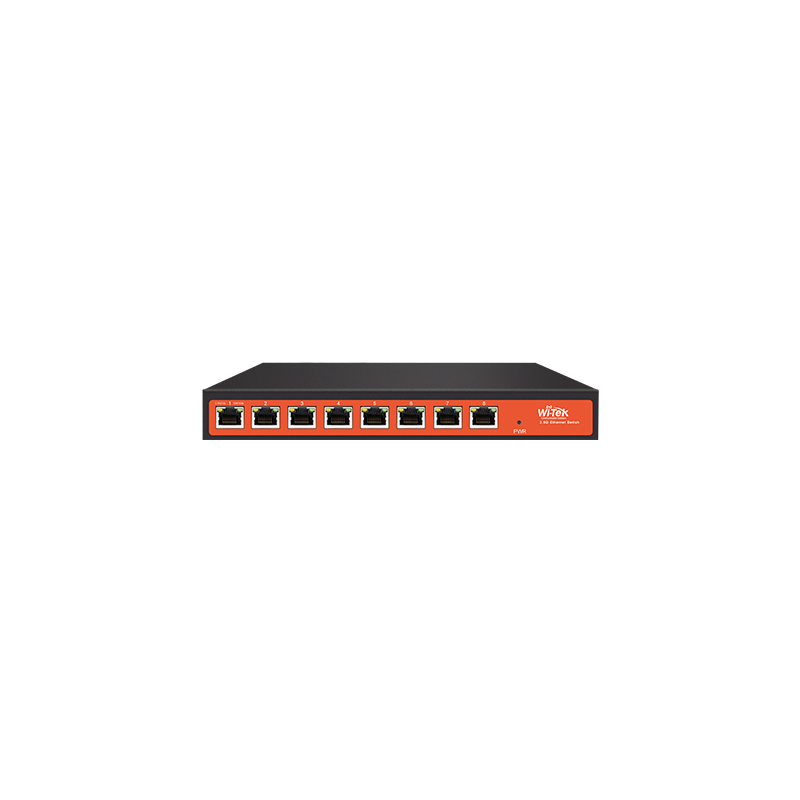

Wi-Tek - WI-SG508G - 8x2.5G Ethernet Switch with Steel Case
Part number:
WI-SG508G
Price:
Wi-Tek 2.5G Ethernet Switches provide an easy way to expand your wired network. With all ports support AutoMDI/MDIX, there's no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 2500Mbps, making it an ideal choice for super-fast connections in LAN parties, home entertainment, home and business offices, and instant transfer for the workstation
Features:
- 8x2.5G Ethernet Switch with Steel Case
- 8 Auto-Negotiation, Auto-MDI/MDIX Ethernet ports provide smart switching
- Support Port VLAN avoid broadcast storm
- Fanless design ensures quiet operation without disturbing your family
| HARDWARE FEATURES | WI-SG508G |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbp Ports, |
| Auto-Negotiation, Auto-MDI/MDIX | |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC /2A) |
| Switching Capacity | 40Gbps |
| Packet Forwarding Rate | 119.04Mpps |
| MAC Address Table | 16k |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 10240 Bytes |
| Transfer Method | Store and Forward |
| Others | |
| Certification | CE, FCC ,RoHS |
| Package Dimension | 269×220×69 mm |
| Switch Dimension | 229×114×31 mm |
| Gross Weight | 1.12kg |
| Net Weight | 0.75kg |
| Package Contents | 1 × Ethernet Switch |
| 1 × Power Adapter | |
| 1 × Quick Installation Guide | |
| Environment | • Operating Temperature:-10–55°C |
| • Storage Temperature: -40–70 °C | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
