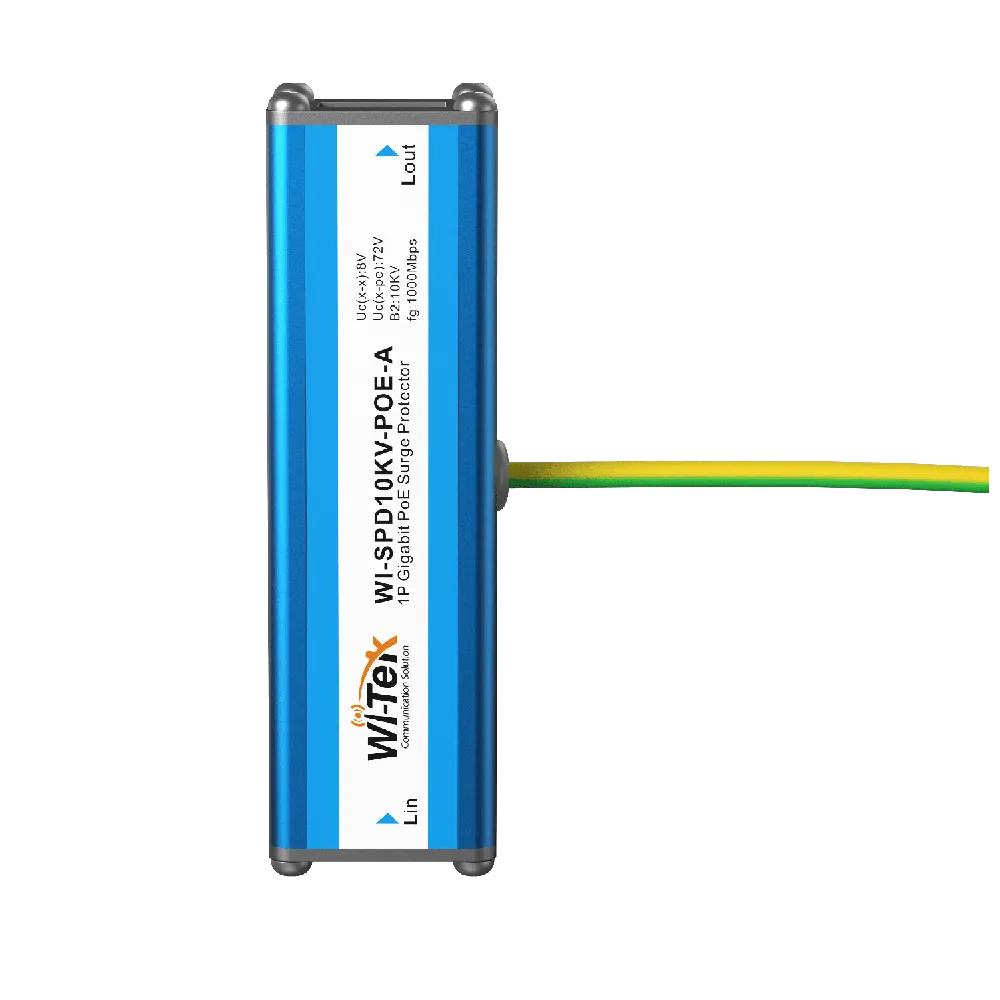

Wi-Tek - WI-SPD10KV-POE-A - PoE Surge Protector
Part number:
Price:
Highlight Features
● Multi-stage Protection
● Picosecond-level Response
● Low Insertion loss
● Gigabit Ethernet Port
● Low Output Residual Voltage
● Excellent Transmission Performance
● Maximum Carrying Power: 100W
| Model | WI-SPD10KV-POE-A |
| Device Type | PoE Surge Protection Device |
| Rated Operating Voltage (Un) | 48V DC (X-PE), 5V DC (X-X) |
| Maximum Sustainable Operating Voltage (Uc) | 72V DC (X-PE), 8V DC (X-X) |
| Protection Level, Line-PG (C10KV/2.5KA) Up | 250V |
| Transmission Rate | 1000Mbps |
| Response Time | 1ns |
| Insertion Loss | ≤0.3dB |
| C2 Total Nominal Discharge Current (8/20µs) | 20kA |
| C2 Nominal Discharge Current per Line (8/20µs) | 2.5kA |
| C2 Maximum Discharge Current per Line (8/20µs) | 3kA |
| Interface | RJ45 |
| Protected Lines | 1, 2, 3, 6 / 4, 5, 7, 8 |
| Maximum Carrying Power | 100W |
| Housing Material | Aluminum Alloy |
| Case Protection Class | IP20 |
| Installation Mode | Desktop |
| Operating Temperature | -40℃ to 85℃ |
