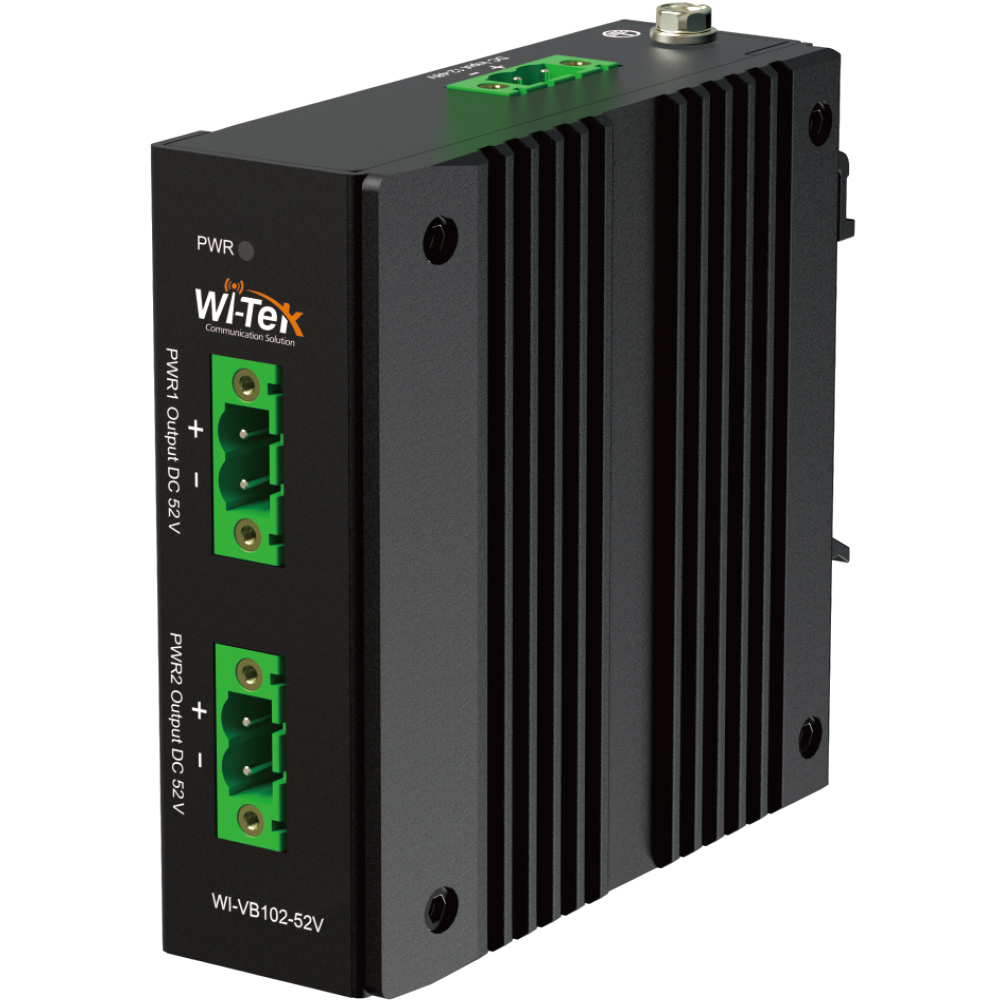

Wi-Tek - WI-VB102-52V - 52V DC Power Supply, 120W, IP40, DIN Rail / Wall Mount

Product Overview

The Wi-Tek WI-VB102-52V is an industrial voltage booster designed to provide stable 52V DC output for demanding power environments. It boosts 12V to 48V DC input voltage to 52V DC, making it suitable for industrial PoE switches, solar power systems, and backup battery applications that require reliable voltage conversion.

Key Configuration

Model: WI-VB102-52V | Product Type: Industrial Voltage Booster | Input Voltage: 12V to 48V DC | Output Voltage: 52V DC | Applications: Industrial PoE switches, solar power systems, 12V/24V battery backup systems | Operating Temperature: -40°C to 75°C | Housing: IP40 | Mounting: Wall mounting or DIN-rail mounting | Protection: 6kV surge protection, 15kV air discharge, 8kV contact discharge

Key Features

 · Boosts 12V to 48V DC input voltage to stable 52V DC output

 · Designed for industrial PoE switches and network power systems

 · Suitable for solar power systems and low-voltage battery backup applications

 · Wide -40°C to 75°C operating temperature range supports harsh environments

 · IP40 housing supports industrial indoor and protected installation locations

 · Supports wall mounting for flexible placement

 · Supports DIN-rail mounting for industrial cabinet installation

 · 6kV surge protection helps protect connected power systems

 · 15kV air discharge and 8kV contact discharge ESD protection enhance electrical safety

 · Provides a stable power source for applications using 12V/24V backup batteries

Technical Context

The WI-VB102-52V is intended for installations where available DC power is lower than the voltage required by industrial PoE networking equipment. By converting 12V to 48V DC input into 52V DC output, it helps support PoE switch deployments powered by solar systems, battery backup, or other low-voltage sources.

Its industrial temperature range and electrical protection features make it suitable for demanding environments where stable voltage, surge protection, and ESD resistance are important for reliable operation.

Installation Notes

The WI-VB102-52V can be installed on a wall or DIN rail depending on the enclosure or cabinet layout. Confirm input voltage range, output power requirements, grounding, and environmental protection needs before connecting it to PoE switches, solar power systems, or battery backup equipment.
