ExacqVision - IA-KIT-WD-UUA - Wireless Camera Configuration Kit, Used with Supported Illustra Camera Models
Part number:
IA-KIT-WD-UUA
Price:

Micro Adapter

The UUSBOTG Micro USB On-The-Go (OTG) Adapter Cable features a Micro USB male (B-type) connector and a USB female (A-type) connector, delivering a simple way to convert your Micro USB OTG capable tablet computer or Smartphone into a USB On-the-go host, and enables you to connect a USB peripheral device such as a thumb drive, or USB mouse or keyboard, etc. This USB to Micro USB Host OTG cable is designed and constructed for maximum durability, to ensure dependable, long-lasting connections, and is backed by StarTech.com’s lifetime warranty.



USB Wireless Network Adapter

The USB300WN2X2C USB Wireless Network Adapter lets you add 300 Mbps Wireless-N connectivity to your desktop or laptop system through USB 2.0. With a compact, lightweight design, the adapter is extremely portable, and is unobtrusive when connected to your system - you can even leave it connected to your laptop when in a carrying bag, without worrying about damaging the adapter or the host port while on the move. The USB wireless adapter is capable of data transfer rates up to 300Mbps over a 2.4GHz 802.11n WiFi network (backward compatible with 802.11b/g), through a 2 Transmitter / 2 Receiver antenna design. The adapter also supports security options such as WEP, WPA or WPA2, as well as quick device connection through Wireless Protected Setup (WPS), for a reliable and secure connection.



Features:

  • Extremely compact and lightweight design
  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration
  • Compliant with IEEE 802.11n standards, with data rates up to 300Mbps
  • Backward compatible with 802.11b/g (11/54Mbps respectively)
  • Supports WEP (64-128-bit), WPA and WPA2 wireless security
  • Supports WMM Quality of Service
  • Support for USB OTG (Onthe-Go) capable devices
  • 1x Micro USB ‘B’ male connector
  • 1x USB ‘A’ female connector port
  • Aluminum-Mylar Foil with Braided Shielding
  • Durable PVC construction
Hardware
Warranty

Lifetime

Connector Plating

Nickel

Cable Jacket Material

PVC - Polyvinyl Chloride

Cable Shield Material

Aluminum-Mylar Foil with Braid

Connector(s)
Connector A

USB Micro-B (5 pin)

Connector B

USB Type-A (4 pin) USB 2.0

Physical Characteristics
Color

Black

Wire Gauge

28  AWG

Cable Length

5.0  in (127 mm )

Product Length

5.0  in (127 mm )

Product Width

0.6  in (15mm )

Product Height

0.3  in (8mm )

Weight

0.2  oz (7g )

Hardware
Warranty

2  Years

Interface

Wireless Ethernet

Bus Type

USB 2.0

Antenna Configuration

2 x2:2 (TxR:S )

Industry Standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Chipset ID

Realtek - RTL8192EU

Performance
Maximum Data Transfer Rate

300  Mbps

Bandwidth

20  / 40MHz

Frequency Range

2.400 GHz ~ 2.484GHz

Security Features

WEP Data Encryption, WPA and WPA2-PSK Data Encryption, TKIP/AES, WPA and

WPA2 Enterprise Data Encryption

Connector Type(s)

USB Type-A (4 pin) USB 2.0, Wireless N (IEEE 802.11n)

Ordering information

Model Number

Description

IA-KIT-WD-UUA

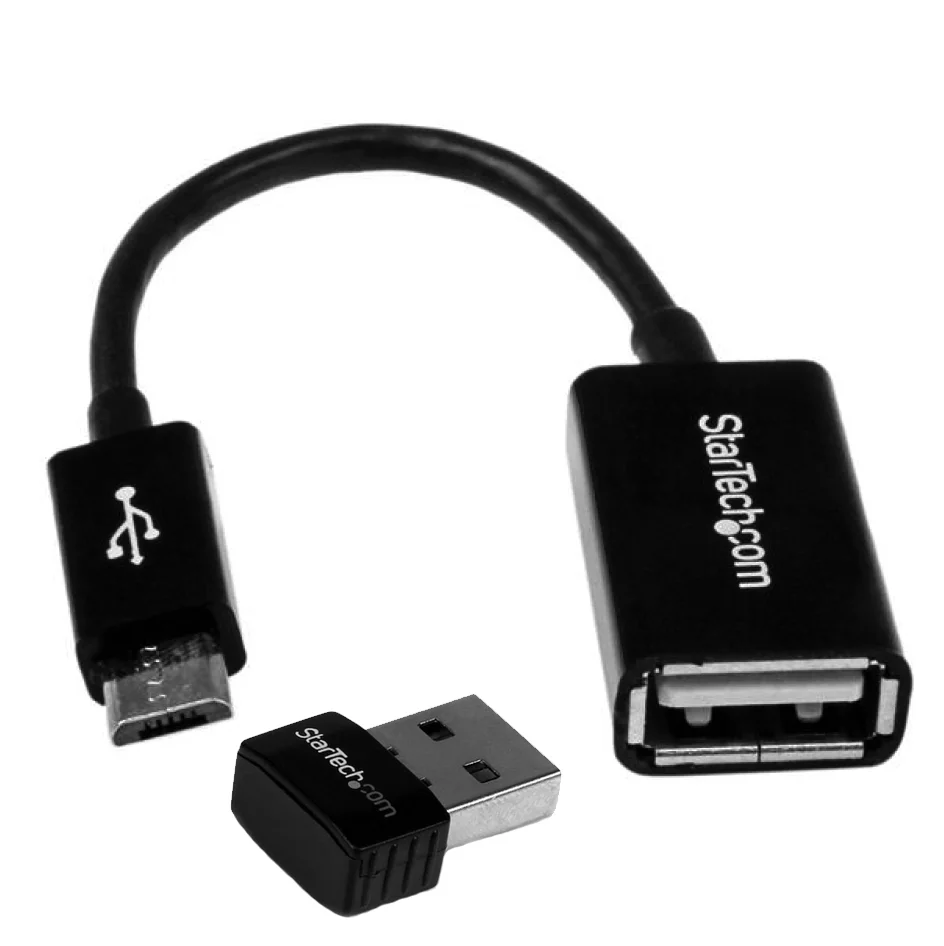

Wifi dongle kit which includes wifi dongle (UUSBOTG) and adapter cable(.USB300WN2X2C)

Name
Description
Size
Downloads
File
Datasheet
0.7mb
