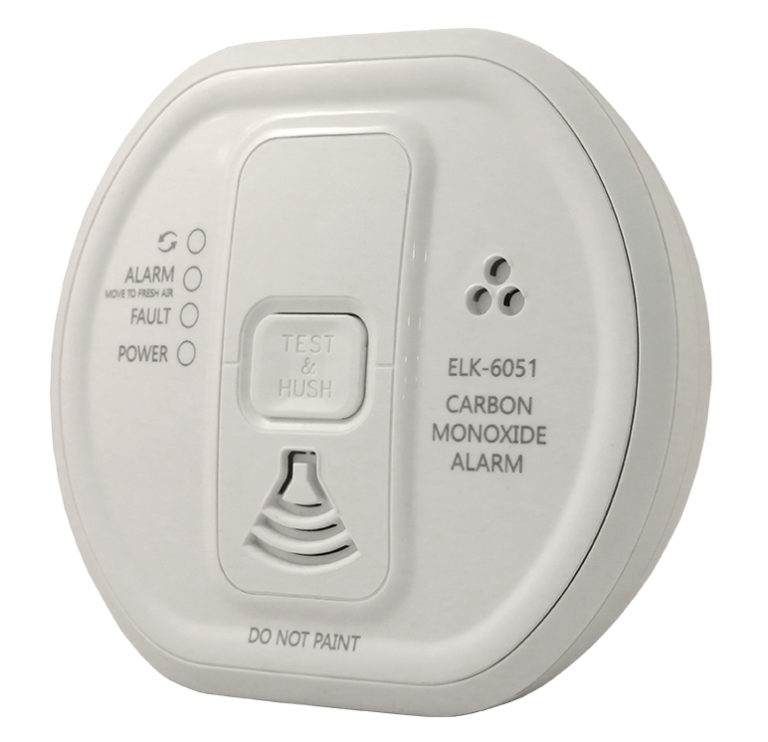

ELK - 6051 - Wireless Carbon Monoxide Detector
Part number:
6051
Price:
The ELK-6051 combines a proven, high reliability electro-chemical carbon monoxide sensor with ELK’s Two-Way Wireless technology for M1 Controls. The sensor has a 10-year life and the unit operates from 2 AAA batteries.
AudioLINK diagnostic app provides event data from sensor.
Features:
- Compatible with ELK-M1XRFTWM two-way wireless transceivers
- Proven, high-reliability, electro-chemical carbon monoxide sensor with 10-year life
- Easy to understand LED indicators provide clear visual indication of alarms, faults, power
and RF acknowledgment - Diagnostic smartphone app simplifies field testing
- Individual units provides visual & audible alarm
- Communicates to M1, activating hardwired sounders & alert to Central Station
- Frequency: 902 - 928 Mhz channel hopping
- Loud built-in sounder, 85dB(A) at 3 meters
- Operates from two readily available and easy to replace AAA batteries
- Size: 4.72” x 4.13” x 1.57”
| Specification: | |
| Power | Two Alkaline AAA type batteries (replaceable) |
| CO Sensitivity | Meets UL2075 |
| Electromagnetic Compatibility | Complies with UL2075/FCC Part 15 |
| Test/Hush Button | Checks electronics, sounder, sensor and batteries |
| Operating Temperature | 40° to 100°F (4.4°C to 37.8°C) |
| Humidity Range | 15% to 95% R.H. (non-condensing) |
| Audible Alarm | 85dB(A) at 10ft (3m) minimum |
| Wireless Freq | 902 Mhz – 928 Mhz frequency hopping |
| Alarm Memory | Indicates if unit was previously in Alarm |
| Dimensions | 4.72”x4.13”x1.57” (120mmx105mmx40mm) |
| Weight (grams) | 6.53 ounces (185g) |
Name
Description
Size
Downloads
File
ELK Two-Way Wireless Product Flyer
1.1mb
File
ELK-6051 Instructions
0.9mb
File
Datasheet
1.1mb
