ELK - 319DR - Wireless Door Recessed Sensor 319.5MHz
Part number:
319DR
Price:

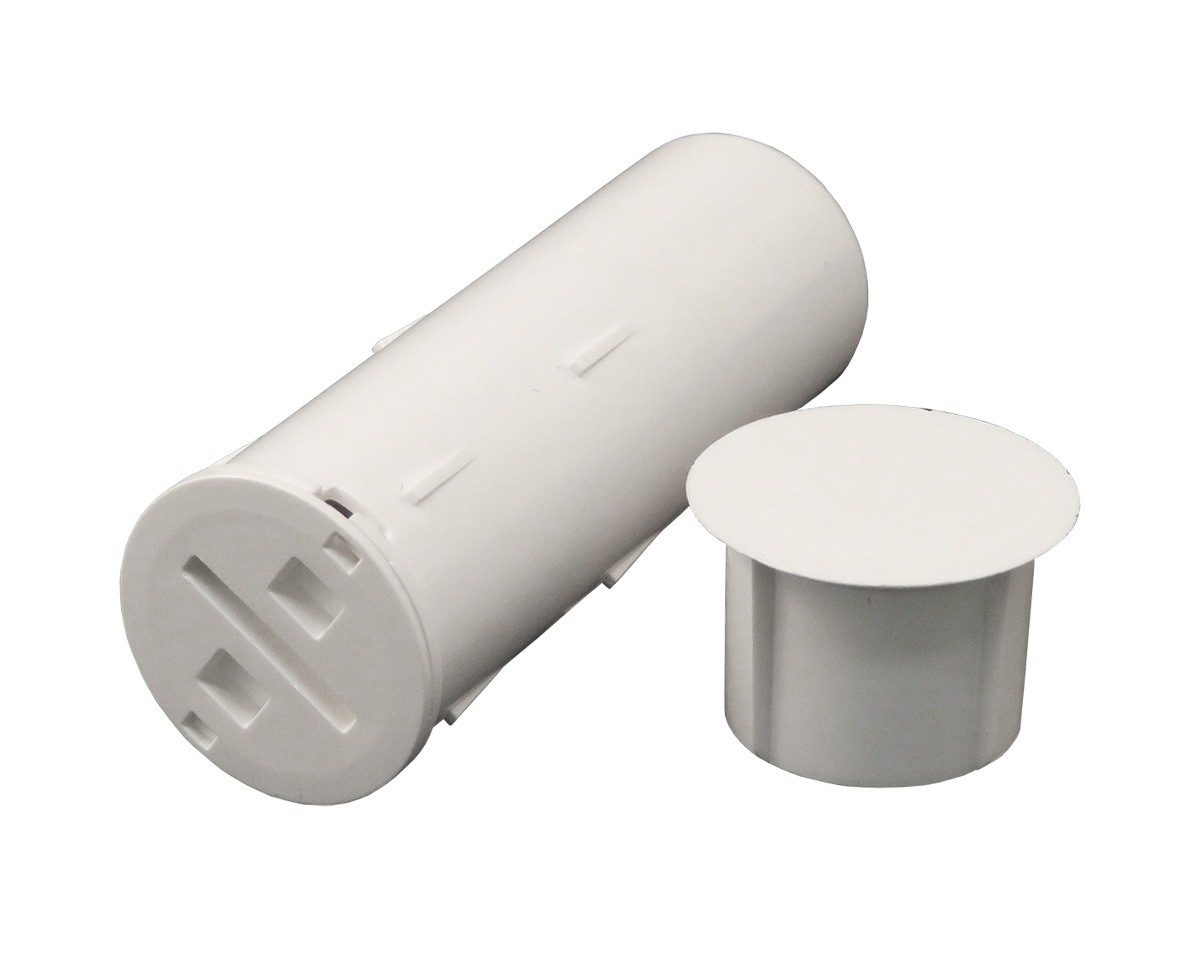

The ELK-319DR is a Supervised, Wireless Door Sensor uniquely designed for recess mounting on the inside edge of a door and its frame. The sensor is virtually invisible when the door is closed.



This sensor is compatible with Elk’s 319MHz Receivers/Panels as well as many other panels that operate on the 319.5MHz frequency. ELK’s 319 Series Sensors are ideal for Interlogix systems in need of replacement sensors.



Features:

  • Our most discrete door sensor!
  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals
  • Uses single easy to find CR2 battery
RF frequency319.5 MHz
CompatibilityELK-319 Receivers/Panels & other panels that operate on the 319.5MHz frequency
Battery type3VDC “CR2” lithium
Operating Temp Range-40 to 140°F (-40 to 60°C)
Dimensions2.25” L x .75” D
Size4.4" x 3" x 1.15
Name
Description
Size
Downloads
File
Datasheet
1mb
File
ELK 319 Series Wireless Flyer
2mb
File
ELK-319DR Instructions
0.2mb
