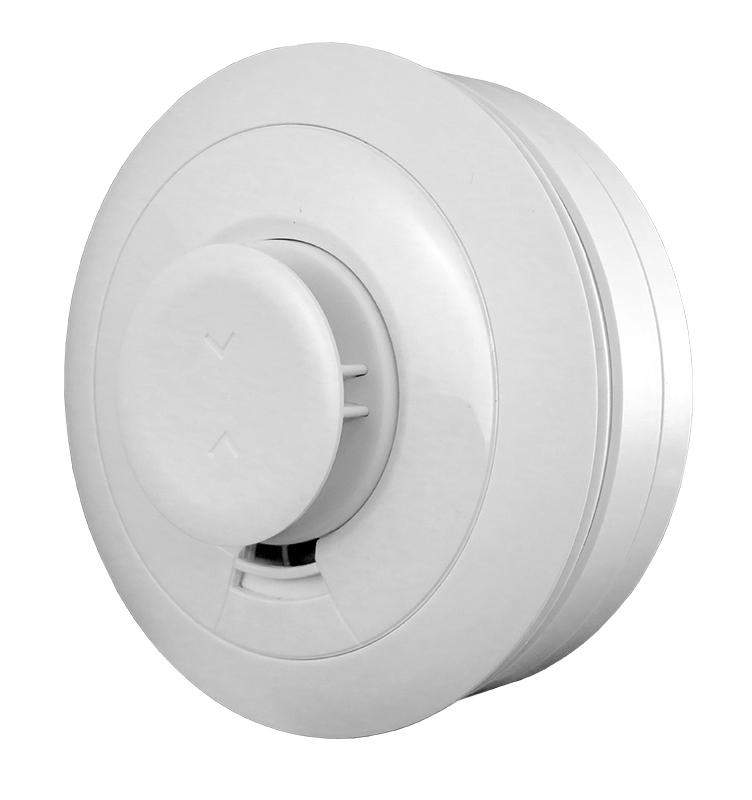

The ELK-6053 Wireless Heat Detector is designed for use with Elk’s two-way wireless product line consisting of the ELK-M1XRFTWM Transceiver and the ELK-M1 Control. It is intended for residential applications and incorporates many features designed to ensure its reliable performance.
This heat detector provides a two-way solution with built-in sounder and wireless “Sound All” activation during an alarm. The unit provides fixed temperature 135°F heat detection, and rapid “rate-of-rise” temperature detection. Built-in self-diagnostics monitor sensitivity and operation status.
Features:
- Compatible with ELK-M1XRFTWM two-way wireless transceivers
- Ability to activate built-in sounder of all enrolled ELK-6050 & 6052 smoke detectors and 6053 heat detectors
- Rapid “rate-of-rise” temperature detection
- Fixed temperature(135° F) heat detection
- 902 Mhz - 928 Mhz frequency hopping
- Dimensions: 5.6”W x 2.4”HD
- Requires 2)CR123 3V lithium batteries
| Specification: | |
| Power | 3V CR123A Lithium Battery (replaceable) |
| Test/Silence Button | Test horn & silences Detector for 10 min. |
| Operating Temperature | 4.4°C to 37.8°C (40°F to 100°F) |
| Humidity Range | 15% to 95% R.H. (non-condensing) |
| Audible Sounder | >85dB(A) at 3m (10ft) minimum |
| RF Frequency | 900MHz Two-way |
| Current Drain | Typical 9µA Standby |
| Heat Sensor Fixed Rating | 57ºC +/- 2ºC (135°F +/- 5°F) |
| Heat Sensor Rate of Rise | >40ºC (104ºF) 8.3ºC (15ºF) / min |
| Panel Compatibility | ELK-M1 Control with ELK-M1XRFTWM, Two-Way Wireless Receiver for Interconnection. |
| Dimensions | 120mm (4.7”) x 46mm (1.8”) |
| Weight (grams) | 210g (0.46 lbs) |
