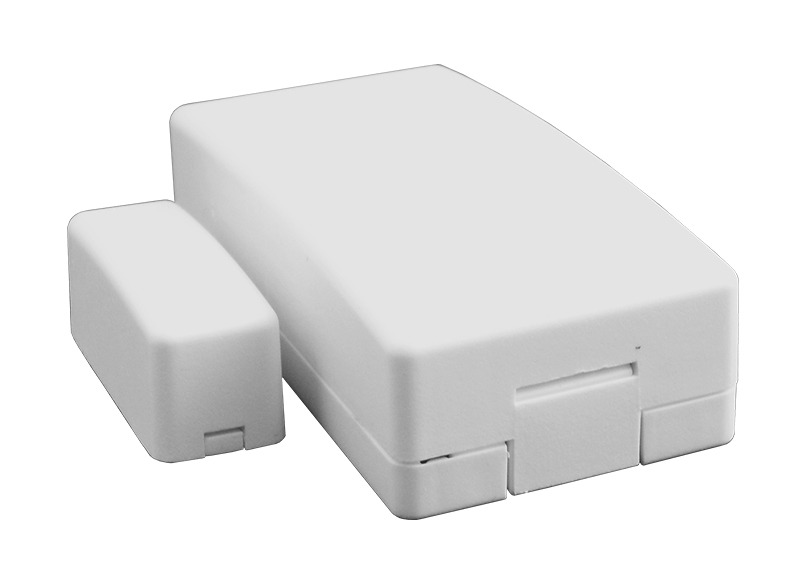

ELK - 6022 - Wireless Universal 3-Zone Dr/Wnd Sensor, Two-Way for M1XRFTW Transceiver
Part number:
6022
Price:
This universal sensor has 1 built-in reed switch plus 2 external zone inputs (open or closed circuit) which allows it to secure up to 3 doors, windows, etc. It also features Elk’s industry leading two-way technology.
Features:
- Compatible with ELK-M1XRFTWM two-way wireless transceivers
- Zones: Built-in reed, IN1, and IN3 (external contact terminals)
- Front and back tamper option
- 902 Mhz - 928 Mhz frequency hopping
- Maximum operating gap of reed: 1/2”
- 3V CR123A lithium battery
- Universal Door/Window Wireless Sensor
- Magnet
- Replaceable 3V Lithium battery
- Tamper Switch
- 4 #4 x ½” Flat Head Sheet Metal Screws
- Double Sided Tape for both transmitter and magnet
- Instructions
| Specifications | |
| 902 Mhz - 928 Mhz frequency hopping | |
| Maximum operating gap of reed: 1/2” | |
| 3V CR123A lithium battery | |
| Battery Life | 7 years typical |
| Size | 1.5”W x 3”L x .9”D, Magnet: .57”W x 1.5”L x .6”D |
Name
Description
Size
Downloads
File
Datasheet
1.5mb
File
Instructions
0.2mb
File
ELK Two-Way Wireless Product Flyer
1.1mb
