ELK - 319WS - Wireless Window & Shock Sensor 319.5MHz
Part number:
319WS
Price:

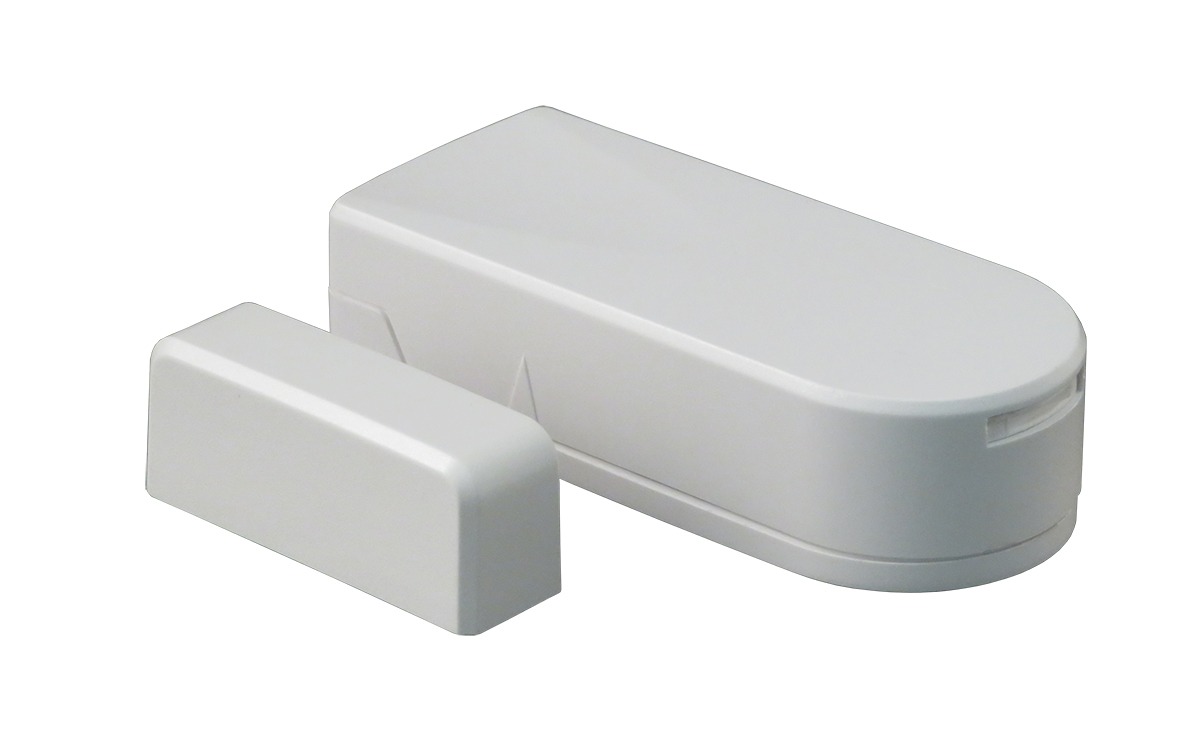

The ELK-319WS is a Supervised, Wireless Window Sensor designed to detect the opening of a window or vibrations made by an intruder attempting to break the window. A built-in reed switch monitors window movement and a piezo shock sensor monitors vibrations.



This sensor is compatible with Elk’s 319MHz Receivers/Panels as well as many other panels that operate on the 319.5MHz frequency. ELK’s 319 Series Sensors are ideal for Interlogix systems in need of replacement sensors.



Features:

  • Built-in reed switch and piezo shock sensor
  • Adjustable sensitivity and range of shock sensor
  • Long range and battery life
  • Transmits open/close, tamper, low battery, and supervisory signals
  • Uses easy to find CR2032 batteries
RF frequency319.5 MHz
CompatibilityELK-319 Receivers/Panels & other panels that operate on the 319.5MHz frequency
Battery typeTwo (2) CR2032 3VDC lithium coin-cell
Operating Temp Range32 to 120°F (0 to 49°C)
Dimensions:2.25” L x .1.0 x 0.50” in. (L x W x D)
