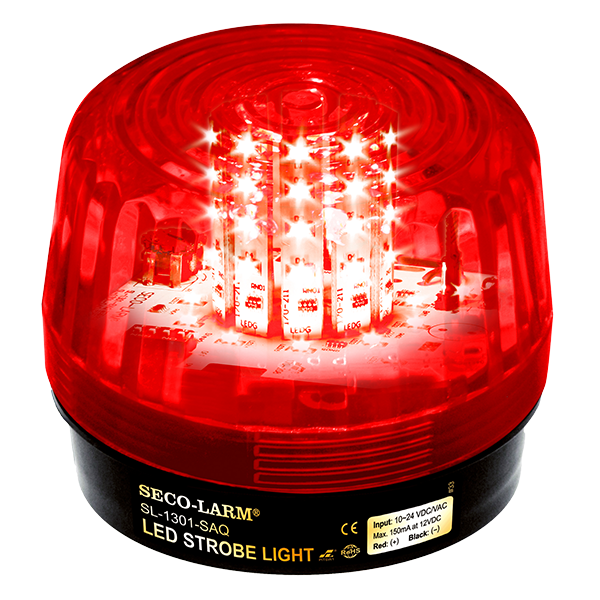

SECO-LARM - SL-1301-SAQ/R - 10~24 VDC LED Strobe Red Light Siren Lens

Product Overview

The SECO‑LARM SL‑1301‑SAQ/R is a 10‑24 VAC/VDC LED strobe equipped with a programmable 100 dB siren, 54 LEDs, a 50,000‑hour lifespan, and 6 adjustable flash patterns in an IP55 weatherproof housing. Its red lens and 10 vertical LED strips ensure 360° visibility, with an optional backup battery and straightforward 2‑wire hookup.

Key Configuration

• Operating voltage: 9-24 VAC/VDC
• Current draw: 90-550mA (varies by voltage)
• Flash patterns: 6 selectable
• Flashing speed: Adjustable 80-160 flashes/min
• Total LEDs: 54 (10 vertical strips)
• Built-in siren: 100 dB

Key Features

The SL‑1301‑SAQ/R combines a high‑intensity LED strobe and a built‑in programmable 100 dB siren in a compact housing. It's 10 vertical LED strips with 54 LEDs provide visibility from multiple angles, making it ideal for security, emergency, and industrial warning applications. The strobe offers 6 flash patterns with adjustable speed (80‑160/min).

Technical Context

The unit operates on 9‑24 VAC/VDC (90‑550mA) with simple 2‑wire installation and reverse polarity protection. An optional backup battery provides up to 2 hours of steady‑on or strobe‑only operation during power loss. The 50,000‑hour LED operating life exceeds the use.

Installation Notes

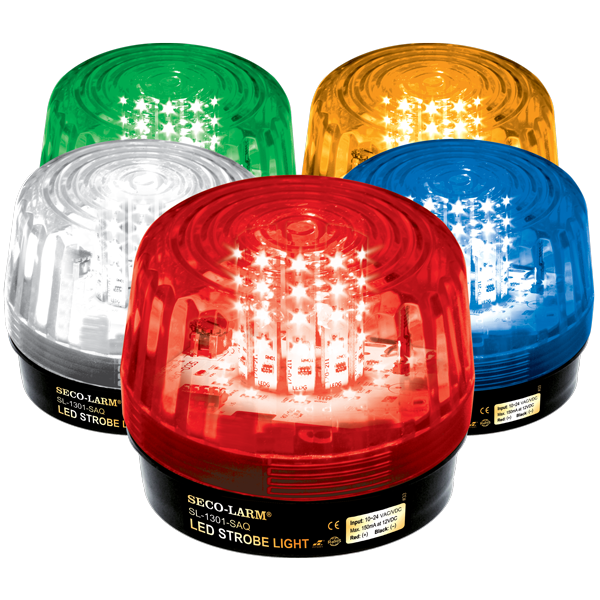

The red‑lens housing (also available in amber, blue, green, and clear) measures 100 × 74 mm, is IP55 weather‑resistant, and features a high‑impact, heat‑resistant lens. It operates from -20°C to 65°C, with the built‑in siren programmable for various alarm tones.
