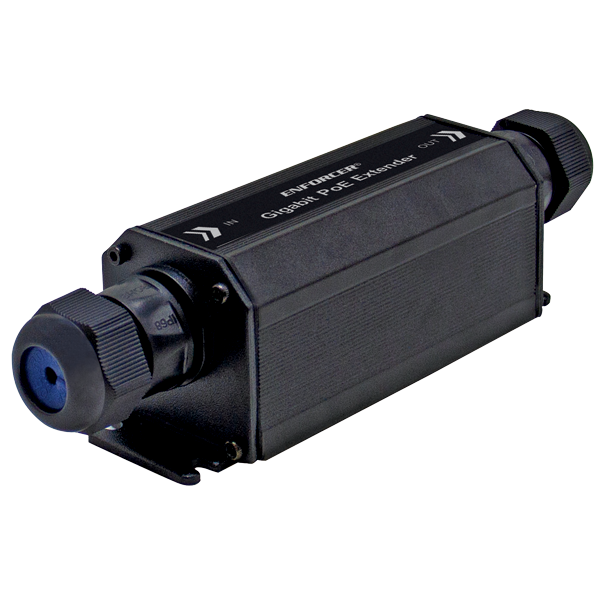

SECO-LARM - NR-P101E-TQ - 1-Input to 1-Output Gigabit PoE+ Extender, Weather-Resistant
Part number:
NR-P101E-TQ
Price:
Gigabit PoE Extender using a single Cat5e or Cat6 cable, extends range by an additional 328ft (100m), supports 1 PoE device.
The ENFORCER Gigabit PoE Extenders connects PoE cameras, IP access control, IP speakers/intercoms, IP telephony, or other PoE devices using a single Cat5e or Cat6 cable to extend data and power by an additional 328ft (100m), for a total range of up to 984ft (300m) with two extenders. The NR-P401E-TQ supports up to 4 PoE devices.
Features:
- Extends the range of PoE Ethernet devices over Cat5e or higher cables an additional 328ft (100m)
- Connects 10,100,1000BaseT PoE devices including IP cameras, IP access control, VOIP, IP speakers/intercoms, etc.
- Supports up to gigabit transmission rates
- Passive operation – no external power required
- Easy plug-and-play installation
- Compliant with IEEE802.3af, IEEE802.3at
- Automatically detects PoE equipment and protects from damage due to faulty installation
| Connections: PoE In | 1x Weather-resistant RJ-45 |
| Connections: PoE Out | 1x Weather-resistant RJ-45 |
| PoE Power: Input | Up to 30W |
| PoE Power: Output | Up to 25W |
| Transmission range: 1 Extender | 656ft (200m) |
| Transmission range: 2 Extenders | 984ft (300m) |
| Data link | Both pin 1/2, 3/6 and 4/5, 7/8 |
| Power link | Pin 1/2(+), 3/6(–) up to 25W |
| Network cables | Weather-resistant Cat-5e or higher |
| Ethernet speed | 10/100/1000 Mbps half/full duplex |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| IP rating | IP66 (with weather-resistant UTP cable) |
| Operating humidity | 90% (maximum, non-condensing) |
| Operating temperature | -13°~101° F (-25°~55° C) |
| Dimensions | 7-1/4″x1-3/4″x1-3/4″ (185x45x45 mm) (Includes endcaps) |
| Weight | 8-oz (227g) |
