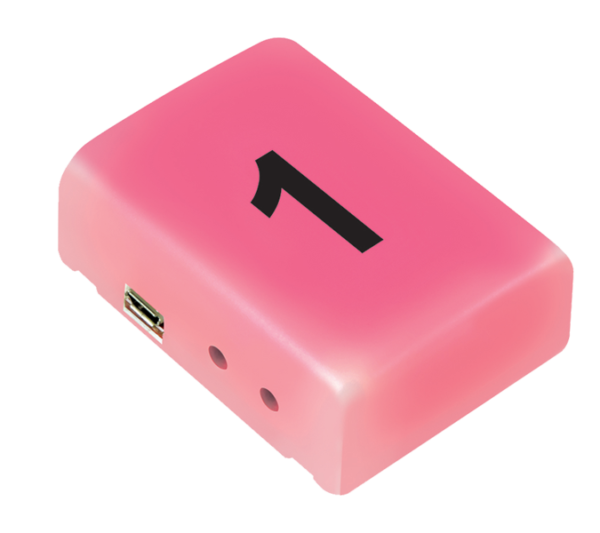

SECO-LARM - RM-R100-RB1Q - 1-Room Indicator with Buzzer
Part number:
RM-R100-RB1Q
Price:

1-Room Indicator with Buzzer - Single Channel LED Receiver, Powered by 12VDC or USB.



The ENFORCER Room Monitor can be used to monitor the occupancy status of rooms in high traffic areas: restrooms, fitting rooms, etc. The Room Monitor uses PIR and phototransistor sensors to monitor the occupancy of a room. The 1-Room Indicator includes additional features, such as a built-in buzzer and service button input, for applications where occupants may need assistance.



Features:

  • Additional 1-Room Indicator
  • Programmable to flash after a present time (3, 5, 10, 15, 20, 30 minutes)
  • Indicator will flash and beep if Help Button is pressed
  • Multiple decals included
  • Micro USB or terminal block (5~12VDC)
Current Draw- Standby6mA@12VDC
Current Draw- Active35mA@12VDC max.
Weight1.8-oz (50g)
Operating Voltage5VDC via micro USB or 5~12 VDC via terminal block
Dimensions2-1/2″x1-5/16″x1-7/8″ (64x24x48 mm)
ConnectionsScrew terminals
Operating frequency433.92MHz
Name
Description
Size
Downloads
File
Manual
0.3mb
File
Quick Start Guide
0.1mb
