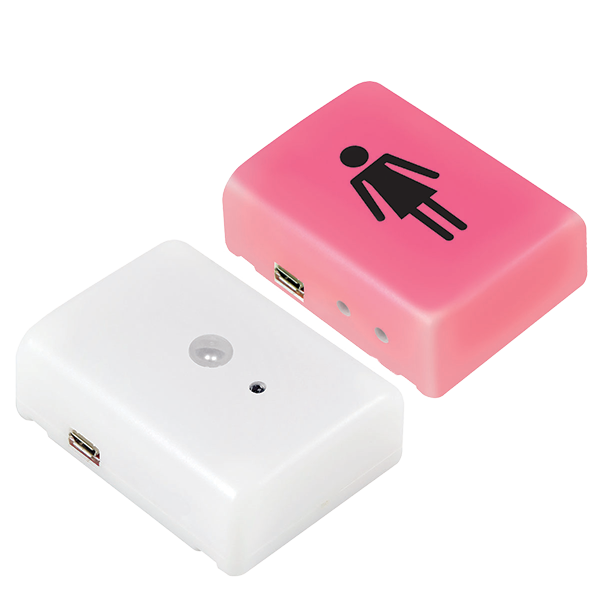

SECO-LARM - RM-R100-KB1Q - 1-Room Occupancy Monitor Kit Contains Sensor, 1-Room indicator, USB Cable and Decals
Part number:
RM-R100-KB1Q
Price:

1-Room Occupancy Monitor Kit. Contains Sensor, 1-Room indicator, USB Cable and decals. Powered by 12VDC or USB.



The ENFORCER Room Monitor can be used to monitor the occupancy status of rooms in high traffic areas: restrooms, fitting rooms, etc. The Room Monitor uses PIR and phototransistor sensors to monitor the occupancy of a room. The 1-Room Indicator includes additional features, such as a built-in buzzer and service button input, for applications where occupants may need assistance.



Features:

  • Programmable to use PIR (movement), phototransistor (light), or door sensor input (switch) to detect occupancy
  • 1-Room indicator has a programmable, built-in buzzer for service input
  • Programmable reminder, 3~30 min
  • Simple to install – micro USB or terminal block (5~12VDC)
  • Suitable to use in restrooms, fitting rooms, etc. to monitor occupancy
  • Each sensor can transmit to unlimited number of indicators
  • Kit includes Sensor, 1-Room Indicator, micro USB cables and decals
Current Draw- StandbySensor: 2mA@12VDC 1-Room Monitor: 6mA@12VDC
Current Draw- ActiveSensor: 15mA@12VDC 1-Room Indicator: 35mA@12VDC max.
Weight1.8-oz (50g)
Operating Voltage5VDC via micro USB or 5~12 VDC via terminal block
Dimensions2-1/2″x1-5/16″x1-7/8″ (64x24x48 mm)
ConnectionsScrew terminals
PIR Sensor RangeSensor: ~16′ (5m), 1-Room Indicator: N/A
Operating frequency433.92MHz
