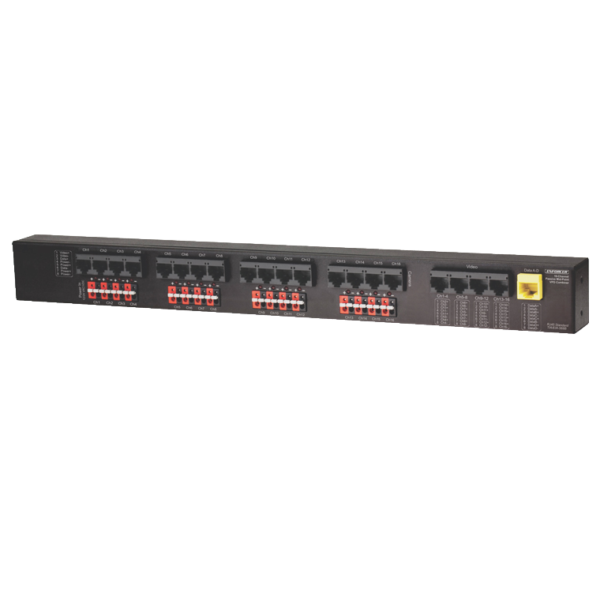

SECO-LARM - EB-P316-60MQ - 16-Channel, Mid-point, Rack‑mount for use with VPD Baluns Such as EB‑P101-20VQ

16-Channel, mid-point, rack‑mount.  For use with VPD baluns such as EB‑P101-20VQ.  Transmits power and data to the camera while receiving video from the camera.  Placed at midpoint between cameras and DVR.

ENFORCER VPD (Video/Power/Data) Combiners work in conjunction with standard passive VPD baluns and RJ45 cables to simplify and organize a large scale CCTV installation. Using this allows for increased flexibility and simplified, more organized cable installation, providing power to cameras while delivering high quality video all over a single CAT5e/6 cable. Troubleshooting is therefore greatly simplified and clutter reduced. ENFORCER VPD Combiners are compatible with all HD analog, including HD-AHD, HD-CVI, and HD-TVI, as well as traditional analog formats.

Features:

• Video, power, and data over a single category cable – CAT5e~6
• Compatible with all traditional and HD analog formats, including HD-AHD, HD-CVI, and HD-TVI
• Used in mid-span applications
• Supports up to 16 cameras
• Power LED indicator for each channel
• Can transfer HD analog video up to 1,476ft (450m)*
• Use any external low-voltage power supply
• Rack-mountable using included brackets

​*720p HD-CVI video; other formats will have different maximum ranges
