PLANET - ANT-OM5D-KIT - 2.4GHz 4.5dBi / 5GHz 7dBi Dual Band Omni Directional Antenna Kit / Outdoor / ABS / N-Type male 11a/b/g/n/ac, 2 pieces

Product Overview

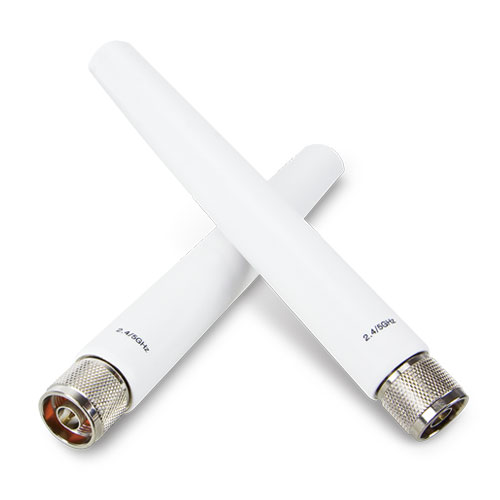

The Planet ANT-OM5D-KIT is a 2-piece dual-band omni-directional antenna kit providing 4.5dBi gain at 2.4GHz and 7dBi gain at 5GHz, with 360° horizontal coverage and N-type male connectors. Housed in IP67-rated ABS radome, it is designed for outdoor short-range 802.11a/b/g/n/ac wireless applications and directly attaches to compatible WNAP/WDAP series outdoor access points.

Key Configuration

• • Frequency range: 2.4GHz and 5GHz (dual-band)
• • Antenna gain: 4.5dBi at 2.4GHz / 7dBi at 5GHz
• • Radiation type: Omni-directional
• • VSWR: ≤2.0
• • HPBW horizontal: 360°
• • HPBW vertical: 80° at 2.4GHz / 55° at 5GHz
• • Connector: N-type male (plug)
• • Dimensions: 23 × 180 mm; weight: 65g per antenna

Key Features

Dual-band 2.4/5GHz antenna for common Wi-Fi standards (802.11a/b/g/n/ac). 360° omni coverage enables uniform signal distribution without directional alignment. N-type male interface allows direct mounting to outdoor APs with matching port, eliminating RF cabling loss. IP67-rated enclosure protects against dust and water for harsh outdoor use. Compact ABS radome with slim 180mm body design.

Technical Context

Designed as a matched MIMO antenna kit for outdoor access points, providing consistent coverage for client devices in open environments like campuses or public areas. Dual-band gain (4.5dBi at 2.4GHz / 7dBi at 5GHz) balances range and coverage efficiency. N-type standard ensures low-loss RF connection and weather resistance. Compatible with selected PLANET outdoor AP models, supporting dual-antenna MIMO operation. IP67 sealing allows long-term outdoor deployment in exposed locations without degradation.

Installation Notes

Includes 2 antennas for MIMO use. Dimensions: 23 × 180 mm; weight: 65g each. Direct screw-on N-type male connector (no cable required). Material: ABS radome with brass RF connector. Vertical beamwidth: 80° (2.4GHz) / 55° (5GHz) for coverage shaping via mounting angle. Operating range: -20°C to 65°C; humidity up to 95% at 55°C. Fully sealed IP67 housing for outdoor mounting. Compatible with PLANET WNAP-6350, WNAP-7350, WDAP-8350 and other N-type female outdoor APs.
