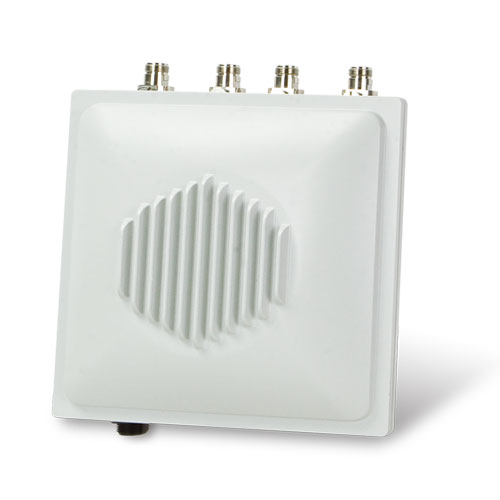

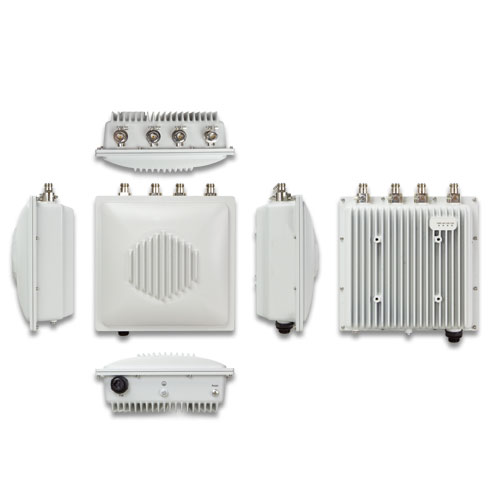

Planet - WDAP-8350 - 600Mbps Dual Band 802.11n Outdoor Wireless CPE (IP66, 802.3at PoE, 4 x N-Type connector)
Part number:
WDAP-8350
Price:
Industrial-grade Wireless LAN
- Compliant with IEEE 802.11n 2T2R MIMO with backward compatible with 802.11a/b/g standard
- Simultaneous 2.4GHz and 5GHz wireless connectivity
- Equipped with Gigabit LAN and 600Mbps wireless connectivity (Dual-N Band)
- IPv4 and IPv6 dual-stack management networks
Radio and Outdoor Characteristics

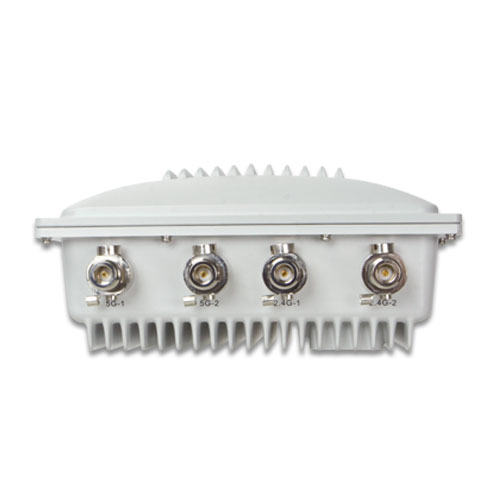

- Built-in 4 N-Type (Female) antenna connectors
- High output power of up to 500mW with multiple adjustable transmit power control
- Built-in surge arrester and ground terminal for protection against lightning strikes
- IP66 aluminum case
- IEEE 802.3at PoE design
- Wide operating temperature of -40 ~ 70 degrees C
Wireless Characteristics
- Dual-N band performs backhaul WDS link at 5GHz and relay wireless signal at 2.4GHz
- Multiple wireless modes: AP, WDS PtP and WDS PtMP
- Supports up to 16 multiple-SSIDs at each frequency band
- Multicast rate adaptation guarantees wireless bandwidth and service quality
- Automatic ACK timeout detection for long-range connection
Secure and Highly-reliable Network Management
- Advanced 128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK(TKIP/AES) security, and 802.1x authentication
- Supports IEEE 802.1Q tagged VLAN over WDS or mapping up to 32 SSIDs
- Dual-image (dual-OS) backup mechanism
- Easy Web-based UI and PLANET Smart Discovery supported
- Telnet command line interface
- Auto power saving mode reduces power consumption by 30%
- Easily locate online clients’ information through the Wireless Location Management
- System status monitoring includes statistics and associated client list
| Hardware | |
|---|---|
| Interface | Wireless: IEEE 802.11n concurrent 2.4GHz and 5GHz, 2T2R MIMO LAN: 10/100/1000BASE-T, auto-MDI/MDIX, IEEE 802.3at PoE PD |
| Antenna | Built-in 4 N-Type (female) antenna connectors with surge arrester ※ The outdoor antennas need to be purchased separately |

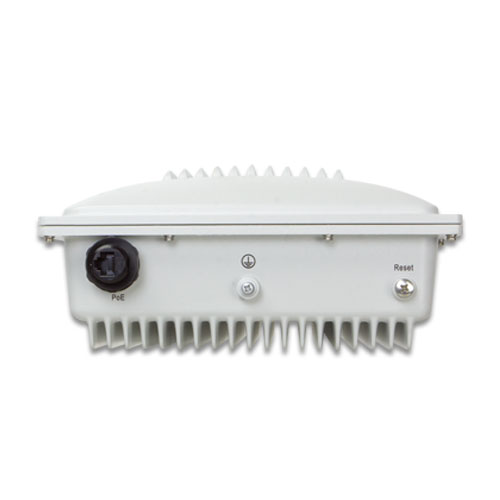

| Button/Connector | Reset button, ground terminal, ground lug |

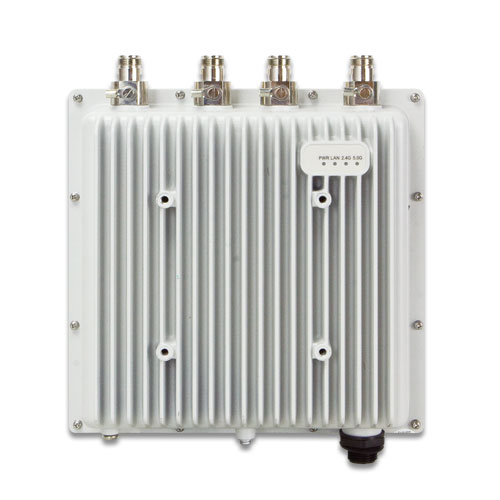

| LED | PWR, LAN, 2.4G, 5G |
| Material | Aluminum |
| Dimensions (W x D x H) | 220 x 95 x 220mm |
| Weight | 2.34kg |
| Power Requirements | 48-56V DC IN, IEEE 802.3at PoE+ |
| Power Consumption (max.) | < 24W (high-loading and heater) < 7W (power saving mode) |
| Mounting Type | Mast, wall mount |
| Wireless Interface Specifications | |
| Wireless Standard | IEEE 802.11a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Antenna Structure | 802.11n: 2T2R MIMO at each frequency band |
| Data Rate | IEEE 802.11b: 1, 2, 5.5, 11Mbps IEEE 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbp at each frequency band |
| Media Access Control | CSMA/CA |
| Modulation Type | 802.11a/g/n: OFDM (BPSK/QPSK/16QAM/64QAM) 802.11b: DSSS (DBPSK/DQPSK/CCK) |
| Band Mode | 2.4G and 5G concurrent mode |
| Frequency Range | 2.4GHz: 2.400 ~ 2.484GHz 5GHz: 5.150 ~ 5.850GHz |
| Operating Channel | ■ 2.4GHz America -- FCC: 1~11 Europe -- ETSI: 1~13 ■ 5GHz America -- FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, 165 (total 24 channels) Europe -- ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (total 16 channels) ※ 5GHz channel list may be vary in different countries and restricted to abide by regional regulatory compliance. |
| Channel Width | 20MHz/40MHz |
| Max. RF Power | 27dBm for all rate levels and modulation modes |
| Output Power Control | 1 ~ 100% |
| Software Features | |
| Wireless Mode | ■ AP ■ WDS PTP ■ WDS PTMP |
| Wireless Encryption | ■ WEP (64-/128-bit) encryption security ■ WPA/WPA2 (TKIP/AES) ■ WPA-PSK/WPA2-PSK (TKIP/AES) ■ 802.1x authentication |
| Wireless Advanced | Enable/Disable SSID broadcast Max. associated station number restriction Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz Supports multiple VLANs mapping to multiple SSIDs Supports fast roaming across APs Provides wireless statistics |
| Max. Wired Client | Unlimited |
| Max. Wireless Client | Theoretical value: 127 at each band Recommended value: 50 at each band |
| Max. WDS Peers | Up to 16 at 2.4GHz and 16 at 5GHz |
| QoS | Supports multicast rate adaptation mechanism to guarantee the wireless bandwidth and service quality |
| LAN | Static IP, DHCP IPv4 and IPv6 dual-stack management network Supports 802.1Q tagged VLAN |
| System Management | Web-based (HTTP) and Telnet command line interface Supports NTP synchronization Easy firmware upgrade via HTTP/TFTP Easy system backup/restore via HTTP/TFTP Easily locate online clients’ information through the Wireless Location Management Supports Dual-OS auto-backup mechanism Supports Auto Power Saving Mode mechanism Supports PLANET Smart Discovery Utility |
| Standards Conformance | |
| Standard Compliance | IEEE 802.11n (2T2R, dual-N band up to 600Mbps) IEEE 802.11a IEEE 802.11g IEEE 802.11b IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T |
| Other Protocols and Standards | CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP |
| Environment & Certification | |
| Temperature | Operating: -40 ~ 70 degrees C Storage: -40 ~ 75 degrees C |
| Humidity | Operating: 10 ~ 95% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
| IP Level | IP66 |
| ESD Protection | ±15kV air-gap discharge ±8kV contact discharge |
| Surge Protection | ±6kV line to ground ±2kV line to line |
| MTBF | 1553658 hrs at 25 degrees C 335788 hrs at 60 degrees C |
| EMC Emissions Class | B |
| Regulatory Compliance | CE, FCC, RoHS |
