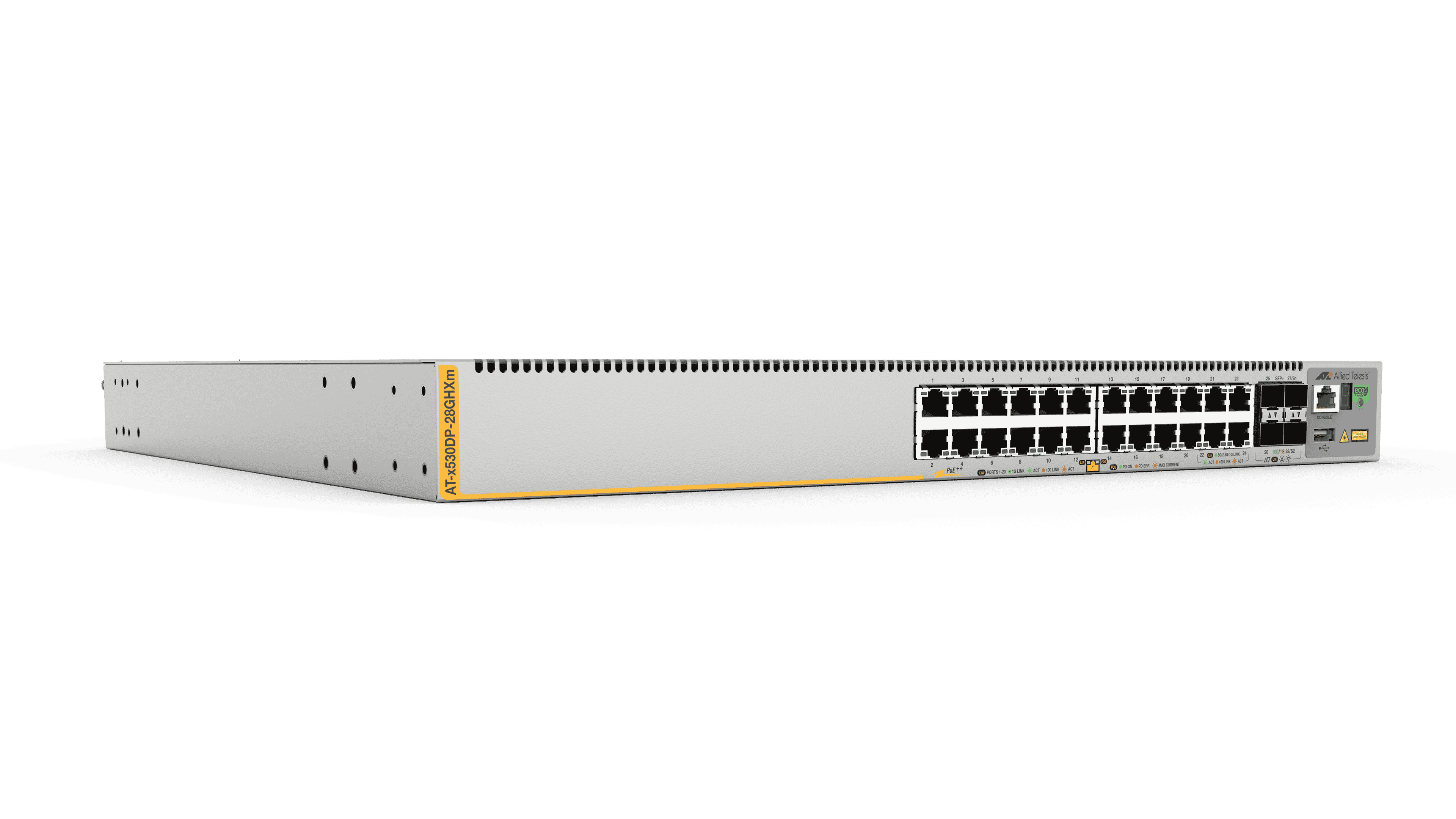

Hanwha - AT-x530DP-28GHXm-10 - 20 x Gigabit Ethernet 4 x 1/2.5/5 Gigabit Ethernet *dual hot swap psu’s PoE++ 1480 W, not included
Part number:
AT-x530DP-28GHXm-10
Price:
AT 20 x Gigabit Ethernet 4 x 1/2.5/5 Gigabit Ethernet PoE++ switch with advance management features 4 x 10GB (SFP+) uplink. PoE++ 1480 W total PoE budget. * hot swap PSU sold separately, can take two PSU.
| PRODUCT | 10/100/1000T (RJ-45) COPPER PORTS | 100M/1/2.5/5 GIGABIT PORTS | 100M/1 GIGABIT SFP PORTS | 1/10 GIGABIT SFP+ PORTS | STACKING PORTS | POE ENABLED PORTS | SWITCHING FABRIC | FORWARDING RATE |
| x530-10GHXm | - | 8 | - | 2 | 2* | 8 | 120Gbps | 89.2Mpps |
| x530-18GHXm | - | 16 | - | 2 | 2* | 16 | 200Gbps | 148.8Mpps |
| x530-28GTXm | 20 | 4 | - | 4 | 2* | - | 160Gbps | 119 Mpps |
| x530-28GPXm | 20 | 4 | - | 4 | 2* | 24 | 160Gbps | 119 Mpps |
| x530-52GTXm | 40 | 8 | - | 4 | 2* | - | 240Gbps | 179Mpps |
| x530-52GPXm | 40 | 8 | - | 4 | 2* | 48 | 240Gbps | 179Mpps |
| x530DP-28GHXm | 20 | 4 | - | 4 | 2* | 24 | 160Gbps | 119 Mpps |
| x530DP-52GHXm | 40 | 8 | - | 4 | 2* | 48 | 240Gbps | 179Mpps |
| x530-28GSX | - | - | 24 | 4 | 2* | - | 160Gbps | 119 Mpps |
Name
Description
Size
Downloads
File
A&E Specifications
0.1mb
File
Quick Guide
1mb
