SECO-LARM - SA-027HQ - Programmable Annual Timer with Housing. Terminal blocks protected inside the housing. Push button toggling of the relay outputs. Two N.O. or N.C. Form C relays, 10A@14VDC. 100 Programmable events can be set weekly, daily or hou

Programmable Annual Timer with Housing.  Terminal blocks protected inside the housing.  Push button toggling of the relay outputs.  Two N.O. or N.C. Form C relays, 10A@14VDC.  100 Programmable events can be set weekly, daily or hourly. Output can be toggle or momentary and can be programmed for 1~99 seconds.

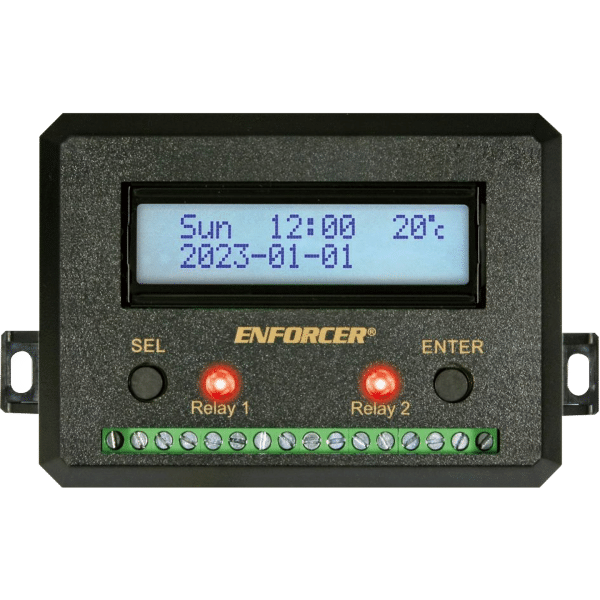

The ENFORCER SA-027HQ Annual Timer can be programmed to operate two Form C relays 24 hours a day, for an entire year for various applications including security, access control, lighting, and environmental control. Each relay can be programmed for up to 99 events with each event on a weekly or daily schedule. Block programming allows events to be repeated on consecutive days. Twenty programmable holidays disable the timer for a single day or the same day yearly.

Features:

• Two N.O. or N.C. Form C relays, 10A@14VDC, one egress input per relay
• Each relay programmable for 99 events, to a total of 198 individual programmable events
• Each event can be set weekly, daily, or hourly, over the course of a year
• Passcode protection can be turned ON or OFF
• Block programming allows events to be repeated on consecutive days
• First-person-in function interrupts the normal operation of the annual timer
• Event outputs can be programmed to disable, ON, OFF, shunt, or momentary (1~99 seconds)
• 20 Programmable holidays
• Tandem mode allows both relays to operate simultaneously
• Built-in clock backup capacitor (saves date/time 7-10 days after power loss)
• Built-in smart backup battery charger for external backup battery (not included)
• Compensates for leap years and can be set for Standard or Daylight Savings Time.
• Alphanumeric backlit LCD display for easy programming
• Exposed terminals for easy installation
