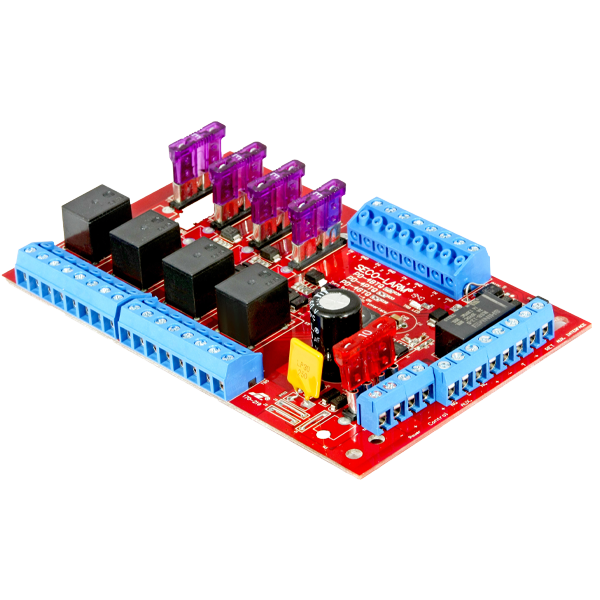

The ENFORCER 4-output Access Power Controller Board centralizes the power sources and gives individual control for various access control locking devices, such as electromagnetic locks, electric shear locks, door strikes, deadbolt locks, and more. Each output is individually controllable, individually fused, and with individual status LEDs. Each output can operate in failsafe or fail-secure modes. Each board includes wet and dry trigger inputs for emergency activation and includes power failure supervision relays and auxiliary supervision relays.

Features:

• For 12/24 VAC/VDC operation
• Each output individually fused
• Each output can operate in both fail-safe and fail-secure modes
• Each output individually controlled
• Individual output relays (10A@24VDC)
• Output fuses rated at 3.0A (PTC@2.5A)
• Individual status LEDs for each output and for emergency input
• Auxiliary supervision relay (1A@28VDC)
• Equipped with dry and wet trigger inputs
• Includes auxiliary interface to enable emergency egress, alarm monitoring, or to trigger other devices
• Includes auxiliary interface disconnect, individually selectable for each output
• Compatible with ENFORCER Access Control Power Supplies
