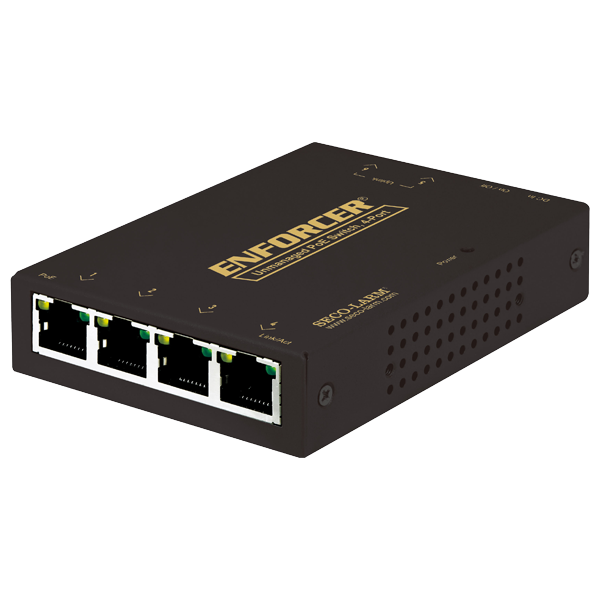

SECO-LARM - NS-104UT-MAQ - 4-port Unmanaged PoE Switch, 4 Out, 1 Uplink, VLAN, 1.2Gbps
Part number:
NS-104UT-MAQ
Price:
ENFORCER Unmanaged PoE Switches provide Ethernet and power to PoE devices such as IP cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD CCTV installations.
Features:
- Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
- Easy plug-and-play installation
- Supports 10,100BaseT
- Conforms to IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
- 2 Uplink ports
- IEEE 802.3x Flow control
| Operating voltage | 48~57 VDC* |
| Power consumption | <5W |
| Ethernet speed | 10/100Mbps (uplink, 100Mbps) |
| Ethernet standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at |
| Transmission distance | 328ft (100m)†‡ |
| Switching capacity | 1.2G |
| Transfer rate – 10Mbps | 14,880pps |
| Transfer rate – 100Mbps | 148,800pps |
| Transfer rate – 1000Mbps | N/A |
| MAC Address table | 1K |
| LED indicators | Connection/transmission and PoE for each port, power |
| PoE capacity | 55W |
| Operating humidity | 0~85% Non-condensing |
| Operating temperature | -40°~158° F (-40°~70° C) |
| Dimensions | 4″x7/8″x2-15/16″ (102x22x75 mm) |
| Weight | 6.8-oz (194g) |
