SECO-LARM - MAP-A599-01Q - 4K HDMI Audio Extractor
Part number:
MAP-A599-01Q
Price:

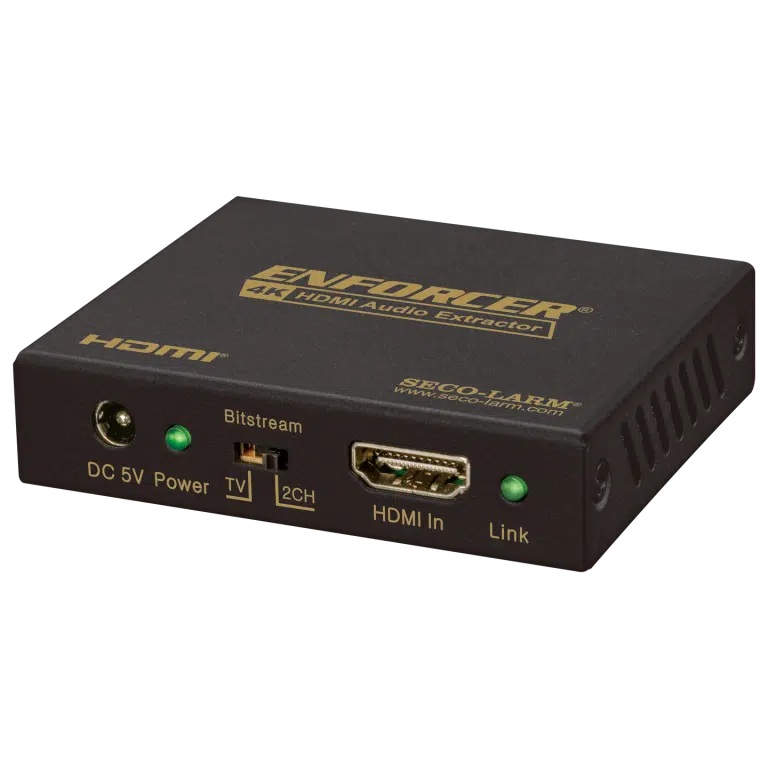

The ENFORCER 4K HDMI Audio Extractor extracts audio signals from any HDMI source to digital optical or analog stereo outputs to send to an audio system such as an audio/video receiver or amplifier. EDID management includes three presets—TV, bitstream, and 2-channel. It supports video pass-through resolutions up to 4K2K@50/60Hz.
Features:
- Supports video resolutions up to 4K2K@50/60Hz
- 10bits High Dynamic Range (HDR) pass through and 4:4:4 chroma subsampling
- HDMI 2.0b (full 18Gbps), HDCP 2.2, and DVI compliant
- Extracts HDMI audio to multi-channel optical (S/PDIF) or L/R analog stereo audio
- Allows simultaneous HDMI audio, multi-channel optical (S/PDIF), and L/R analog stereo
- Optical audio supports LPCM 2Ch, Dolby Digital 2/5.1Ch, and DTS 2/5.1Ch
- Supports HDMI High Bit Rate (HBR) audio pass through
- Supports uncompressed audio LPCM
- Supports compressed audio DTS Digital, Dolby Digital (DTS-HD and Dolby True HD)
- Audio sample rates up to 192kHz
- Supports CEC bypass
- Includes UL-listed 5VDC power supply
| Video formats supported | HDMI 2.0b, HDCP 2.2 |
| Color space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color depth | 10bit, 12bit |
| Audio formats supported | HDMI (Pass-through): LPCM 2.0/5.1//7.1, Dolby Digital, DTS 5.1, Dolby TrueHD, Dolby Digital Plus (DD+), DTS HD Master, Dolby Atmos, DTS-X Optical: LPCM 2.0/5.1, Dolby Digital 2.0/5.1, DTS 2.0/5.1 |
| L/R Audio formats | Analog stereo 2CH |
| Output video | HDMI |
| Resolutions supported | 4K2K@50/60Hz, 4K2K@30Hz, 1080p@120Hz, 1080p 3D@60Hz |
| Video bandwidth | 18Gbps |
| Inputs | HDMI Type A 19-pin female |
| Outputs | Video: HDMI Type A 19-pin female Audio:3.5mm L/R stereo, optical (S/PDIF) |
| Max. HDMI cable length (IN/OUT) | 4K@60Hz, 16′ (5m) / 4K@30Hz, 32′ (10m) / 1080p@60Hz, 50′ (15m) |
| Operating voltage | 5VDC |
| Power supply | 1A@5VDC (1 adapter) |
ESD protection (human body model) | (air-gap discharge), ±4kV (contact discharge) |
| Current draw | 1000mA |
| Operating humidity | 20~90% non-condensing |
| Operating temperature | 32°~104° F (0°~40° C) |
| Dimensions | 2-7/8″x11/16″x2-3/8″ (74x17x61 mm) |
| Weight | 4.6-oz (130g) |
