SECO-LARM - E-941SA-80Q - 80-lb Electromagnetic Lock
Product Overview

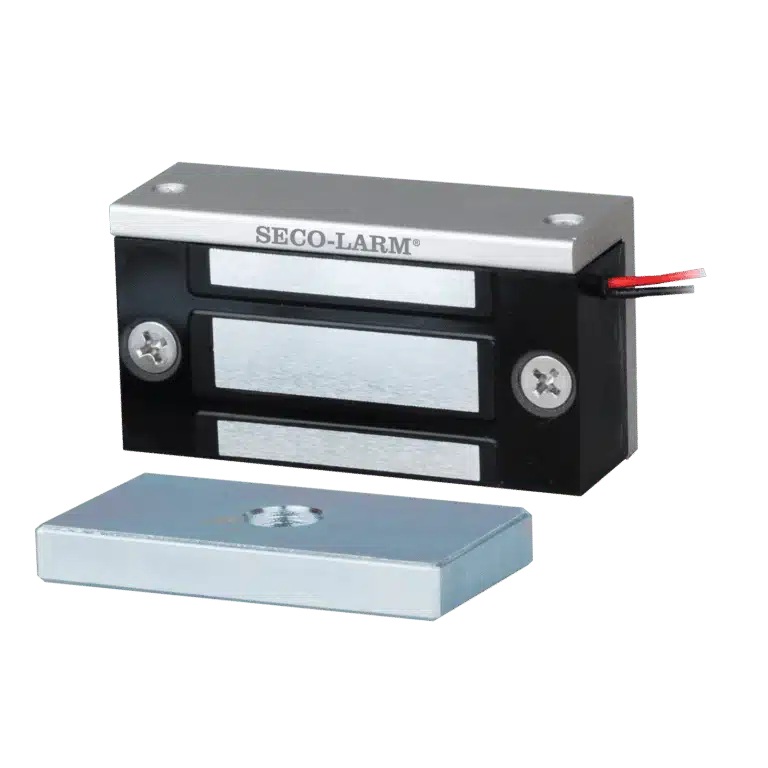

The SECO‑LARM E‑941SA‑80Q is a compact 80‑lb (36 kg) electromagnetic lock designed for small spaces such as cabinets, drawers, and access panels. It operates on 12‑24 VDC with low current draw (60mA @ 12VDC, 120mA @ 24VDC), features MOV surge protection, and is UL 294 certified for reliable security applications.
Key Configuration
• Holding force: 80-lb (36kg) @ 12VDC / 110-lb (51kg) @ 24VDC
• Operating voltage: 12-24 VDC ±10%
• Current draw: 60mA @ 12VDC / 120mA @ 24VDC
• Magnet dimensions: 70 × 31 × 19 mm
• Armature dimensions: 60 × 31 × 9 mm
• Weight: 0.9-lb (410g)
Key Features
The E‑941SA‑80Q is a compact electromagnetic lock designed for low‑security applications where space is limited, such as cabinets, drawers, and small access points. When powered, the electromagnet attracts the steel armature to lock the door; power removal releases it with no residual magnetism.
Installation Notes
It measures just 70 × 31 × 19 mm, weighs 410g, operates from 12–24 VDC at 60–120mA, and includes MOV surge protection and complete mounting hardware. ETL listed to UL 294 (Level I ratings for destructive attack, line security, endurance, and standby power), it operates from -10°C to 55°C.
| Holding Force | 12VDC: 80-lb (36kg) 24VDC: 110-lb (51kg) |
| Operating Voltage | 12~24 VDC±10% |
| Current Draw | 12VDC: 60mA 24VDC: 120mA |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| Operating Temperature | 14º~131º F (-10º~55º C) |

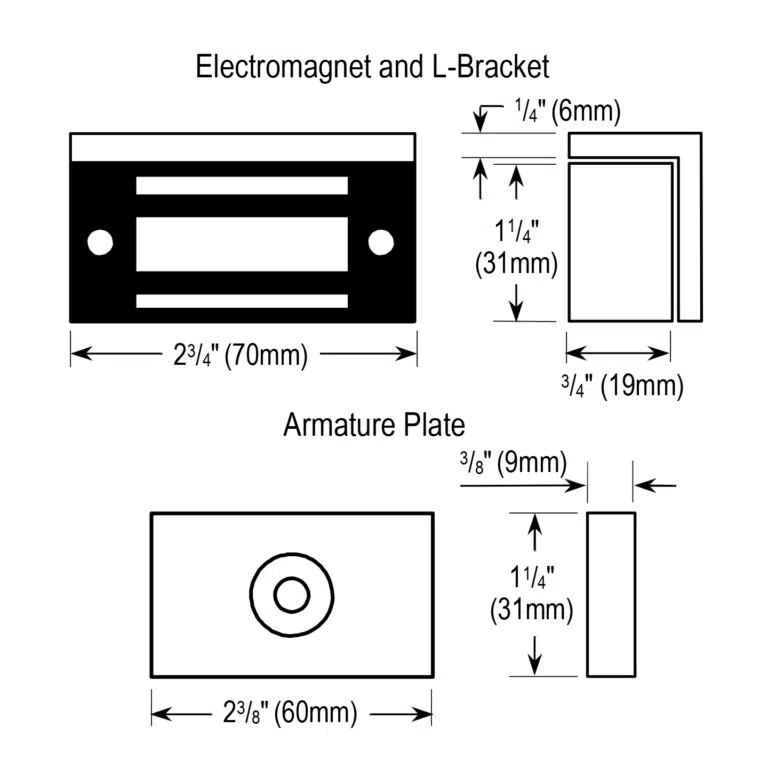

| Dimensions | Magnet: 2-3/4″ x 1-1/4″ x 3/4″ (70 x 31 x 19 mm) Armature: 2-3/8″ x 1-1/4″ x 3/8″ (60 x 31 x 9 mm) |
| Weight | 0.9-lb (410g) |
