Hanwha - AIB-800 - AI appliance capable of adding AI features to non-AI cameras, Up to 8CH support, Max resolution 8K, protocols: SUNAPI, ONVIF, Video Analytics based on AI [Object detection and classification (Person, Face, Vehicle, License plate),
AI appliance capable of adding AI features to non-AI cameras, Up to 8CH support, Max resolution 8K, protocols: SUNAPI, ONVIF, Video Analytics based on AI [Object detection and classification (Person, Face, Vehicle, License plate), Attribute, BestShot] People counting, Vehicle counting, Queue management, Heatmap based on AI, Operating Temperature: 0°C to 40°C (32℉ to 104℉), Power: 12VDC
Features:
• Max up to 8CH inputs
• AI functions
- Classified object type: Person/Vehicle
- Attributes: Person(Type: age, gender, color etc.)
- Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle)
• Support BestShot
• Analytics events based on AI engine
- Motion detection, Object detection, Virtual line (Crossing/Direction),
Virtual area (Loitering/Intrusion/Enter/Exit)
- Some of the video analytics only works with people/vehicle detection
• Analytics events
- Virtual area (Appear/Disappear)
• Business Intelligence
- Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
• Viewer Softwre: Web viewer, WAVE, SSM, Genetec, Milestone
• Support SDK/CGI(SUNAPI) for interworking with 3rd party VMS
| Display | ||
| Network | ||
| Inputs | Max. 8CH | |
| Resolution | CIF ~ 32MP | |
| Protocols | SUNAPI, ONVIF | |
| Intelligent Analysis | ||
| AI function | ||
| Pre-Installed Event | Classified object type : Person/Vehicle | |
| Attributes : Vehicle (Type:car/bus/truck/motorcycle/bicycle) | ||
| Support Bestshot | ||
| Analytics events based on AI engine: | ||
| - Motion Detection*, Object detection, Virtual line* (Crossing/Direction), | ||
| Virtual area* (Loitering/Intrusion/Enter/Exit) | ||
| * Some of the video analytics only works with people/vehicle detection | ||
| Analytics events : Virtual area(Appear/Disappear) | ||
| Business Intelligence : | ||
| - Based on AI engine: People counting, Vehicle counting, | ||
| Queuemanagement, Heatmap | ||
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, | |
| HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client), SRTP | ||
| DDNS | Hanwha DDNS | |
| Max Manipulated Streams | 80 Streams ( 10 Streams per 1CH) | |
| IP Version | IPv4/v6 | |
| Security | IP address filtering, User access Log, 802.1x, Encryption | |
| Device certificate(Hanwha Techwin Root CA) | ||
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, | |
| Czech, Portuguese, Hungarian, Greek, Korean, Chinese, Japanese | ||
| OS | Windows 11/10, macOS 10.13 | |
| Web Browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | ||
| Type | WebViewer, WAVE, SSM, Genetec, Milestone | |
| CMS Support | Support SDK/CGI(SUNAPI) for interworking with 3'rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Setup Items | Camera Webpage | |
| Indicator/Interface | ||

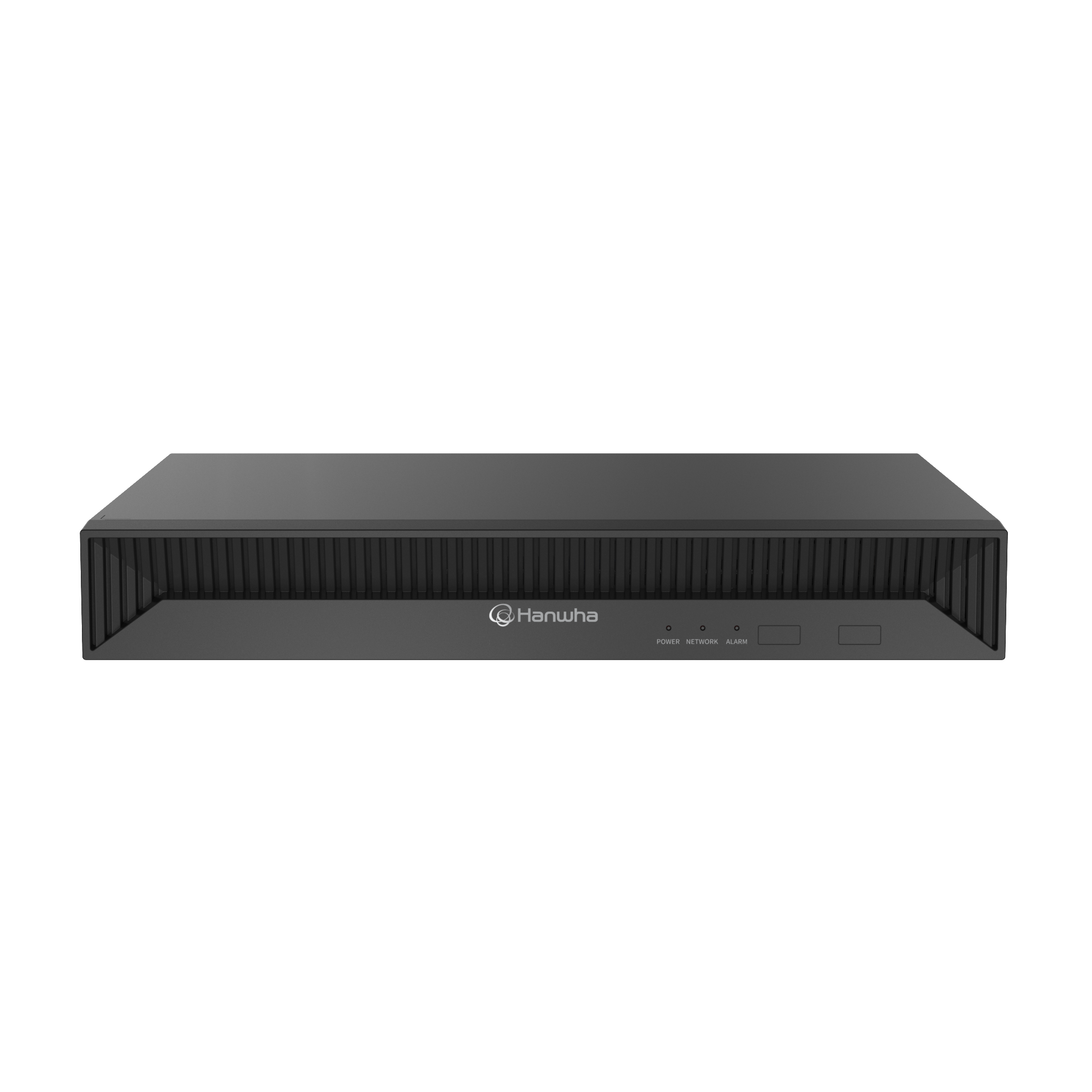

| Front | ||
| Indicator | LED(Status indicator) : | |
| - Alarm(1), Power(1), Network(1) | ||
| Ethernet | RJ-45 1ea (1Gbps) | |
| Alarm | (1) In(8EA, Terminal Block) | |
| (2) Alarm Reset(1EA) | ||
| (3) Out(4EA, Terminal Block) | ||
| - Relay Out1(NO/NC/COM) | ||
| - Relay Out2~4(NO/COM) | ||
| USB | 1EA( Rear 1 x USB 3.0) for DEBUG | |
| Serial | Not Supported (internal Debug) | |
| Reset | Factory Reset | |
| Power Cord | DIN 4P 12V, 4A | |
| System | ||
| Log | ||
| Log List | Max. 3,000 (System 1,000, Access 1,000, EVENT 1,000) | |
| CPU | NVIDIA ORIN NX 8GB (SOM) | |
| Environmental | ||
| Operating Temperature / Humidity | +0°C to +40°C(+32℉ to +104℉) | |
| Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power | 100 ~ 240 VAC ±10%; 50/60 Hz, 12V, 4A Adaptor | |
| Power Consumption | 28W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300 x 47.6 x 240.9 mm (11.81 x 1.87 x 9.48 inch) | |
| Weight | 1.39kg | |
