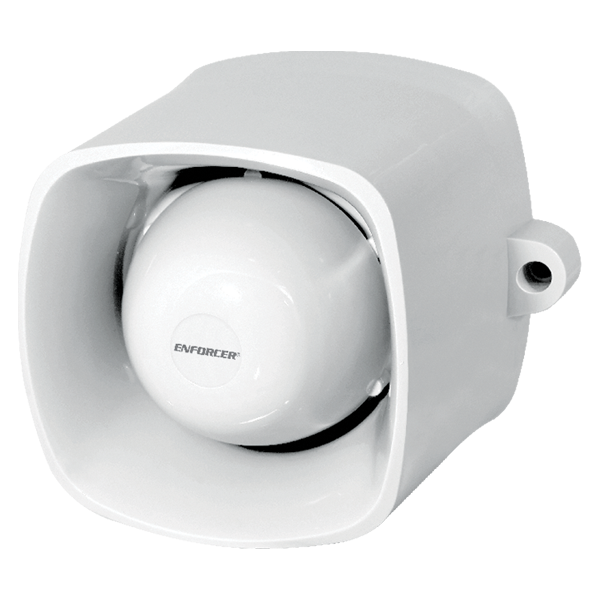

SECO-LARM - SH-816S-BQ - 9~15 VDC Self-Contained 120dB Warble-Tone Siren. 25W speaker with Audio Input
Part number:
SH-816S-BQ
Price:
The ENFORCER Siren/Strobes are multi-purpose devices: siren, speaker, and optional strobe (SH-816S-SQ only). It can serve as a regular siren, but also has an audio input that can be used to playback audio or broadcast messages. The SH-816S-SQ series also includes a strobe light with a choice of amber, blue, clear, or red lenses and can be surface installed or to a standard single gang, double gang or C-type back box.
Features:
- 9~15 VDC
- Low current draw
- 120dB Warble-tone siren
- 25W Speaker for audio or broadcast system input (broadcast will interrupt the siren)
- Built-in tamper alarm output
- Weatherproof for outdoor/indoor use, IP65
- Easy installation
- Mount directly to wall or to most common back boxes
| Type | Siren |
| Operating voltage | 9~15 VDC |
| Current Draw (max.) – Siren | 680mA@12VDC |
| Current Draw (max.) – Both | 870mA@12VDC |
| Siren volume | 120dB |
| Speaker rating | 25W Peak |
| Tamper output | 100mA@30 VAC/VDC |
| IP rating | Weatherproof IP65 |
| Operating humidity | 0~95% |
| Operating temperature | -4°~131° F (-20°~55° C) |
| Housing material | White polycarbonate plastic |
| Dimensions | 6-1/8″x4-15/16″x4-1/2″ (155x126x115 mm) |
| Weight | 1-lb 13-oz (812g) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Manual
0.4mb
