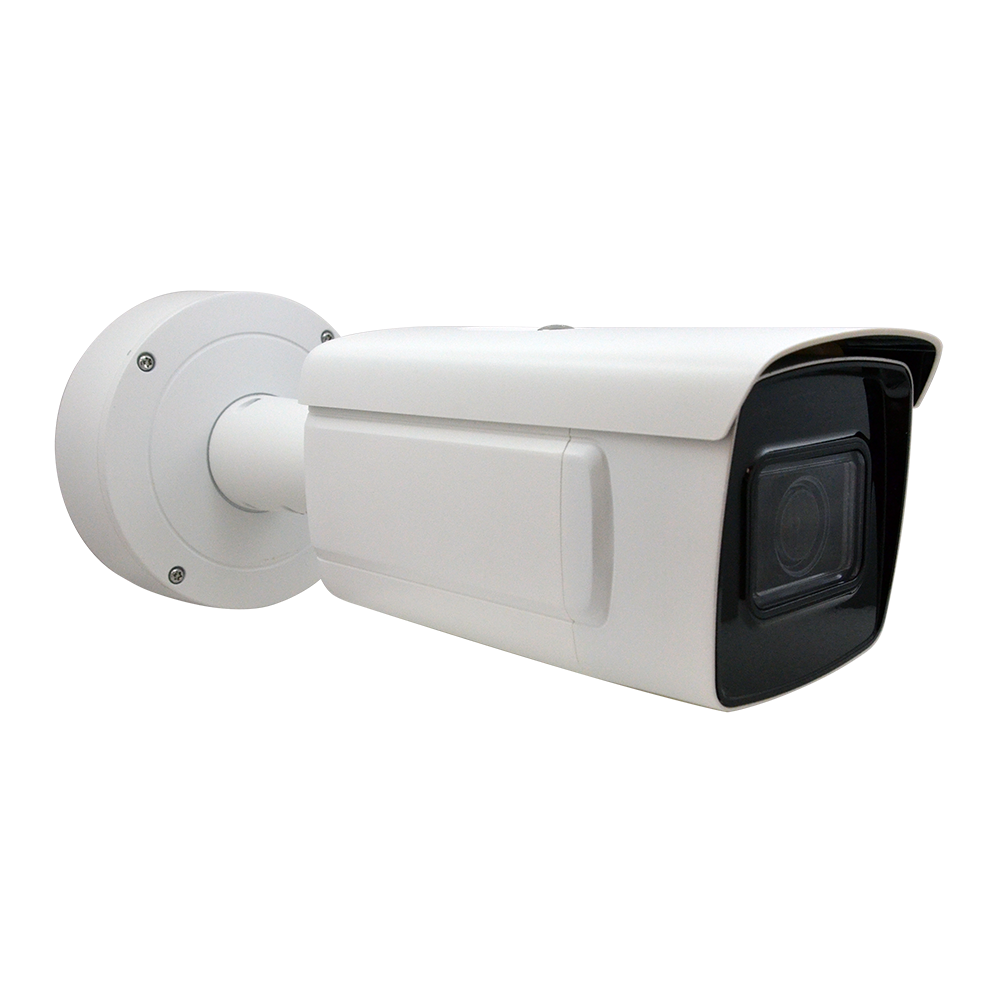

- • 4 Megapixel, 4.3x, Zoom Bullet
- • Deep Learning AI, LightGuard
- • 1/1.8" Sensor, IR LED 50m, Extreme WDR (140 dB)
- • Color Min. Illumination 0.0005 lux
- • Frame Rate 60fps
- • Smart Motion Detection, Smart Intrusion Protection
- • Object Metadata
- • Face Recognition, Counting
- • Weatherproof (IP67), Vandal proof (IK10)
- • DI/DO
| Product Profile | |
|---|---|
| Product Type | Zoom Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.0005 lux at F1.2 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f2.8-12mm |
| Aperture | F1.2-F2.5 |
| Zoom Ratio | 4.3x optical zoom |
| Zoom Application | Camera Installation |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 114.5° - 41.8° |
| Vertical Viewing Angle | 59.3° - 23.6° |
| Viewing Angle Adjustment | Pan: 360°, Tilt: 90°, Rotation: 360° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.265, H.264 Adaptive Stream (equivalent to Zip or Smart Stream or H.264+), H.264, MPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520 60 fps at 2560 x 1440 60 fps at 1920 x 1080 60 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous 5 streams |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Extreme WDR (140 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Saturation, Automatic gain control (AGC), Backlight compensation (BLC), Highlight compensation (HLC), Digital Image Stabilizer (DIS, EIS), Defogging |
| Privacy Mask | 8 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, Smart Intrusion Protection, Object Metadata, Tampering Detection, Missing Object Detection, Unattended Object Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Exit Area Detection, Stopped vehicle detection, Face Detection, Face Snapshot, Face Matching, Face Recognition, Hard Hat Detection, Heat Map, Crowd Detection, Queue management, People Counting, Vehicle Counting, Duty Status Detection |
| Plug-in Analytics | Mask Wearing or Absence Detection, Helmet Wearing or Absence Detection, Construction Site Safety Violation Detection, Fire & Hazardous Materials Control Room Rules Violation Detection, Gas Station & Control Room Rules Violation Detection (Only one function can be enabled at a time; special firmware support is required, please contact the sales.) |
| Analytics | |
| Deep Learning AI | 2.0 |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, Bonjour, UPnP, QoS, SSL/TLS, SNMP |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection, External device through digital input, Shock Detection, Intelligent event detection |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox, Apple Safari |
| Interface | |
| Digital Input/Output | 2/2 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, High PoE (IEEE802.3at) |
| Power Consumption | 16.8 W (PoE) |
| Dimensions | (Ø x L): 144mm x 347mm (5.67" x 13.66") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Mount Type | Pole Mount, Corner Mount |
| Heater | Yes |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE Class A, FCC Class A, IP67, IK10 (metal casing) |
| Color | White |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
| Comments | * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
