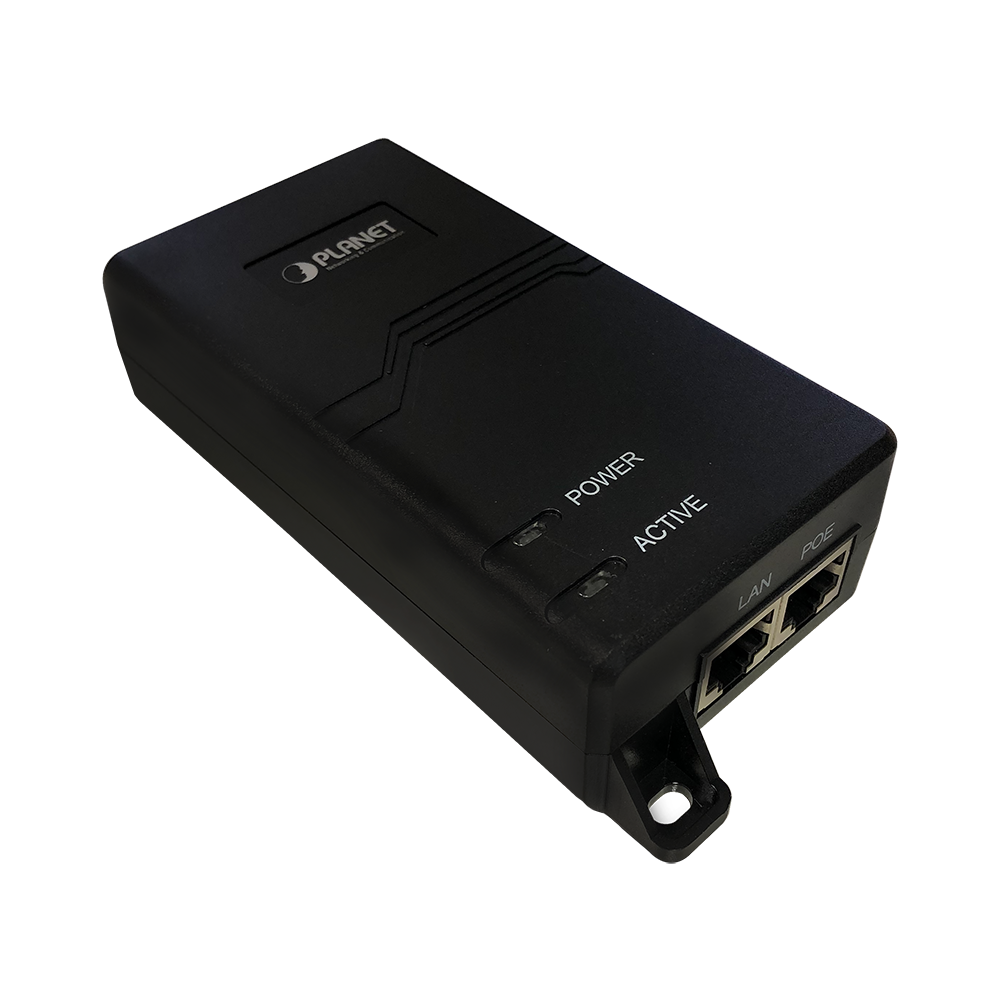

High PoE Injector IEEE 802.3at compliant, AC 100~240V, with universal connectors for A416, A418, B913, B923, B934, Q450, Q75, VMGB-60X, Z37, Z71, Z952.
| Product Type | |
|---|---|
| Type | PoE Injector |
| Description | High PoE injector IEEE 802.3at compliant, AC 100~240V, with universal connectors (for A2x, A3x, A4x, A7x, A8x, B26, B4x, B5x, B76A, B8x, B9xx, E1x, E217, E33A, E9xx, I42, Z3x, Z4x, Z7x, Z8x, Z9x, Q450, Q550, Q75, VMGB-60X, VMGB-3xx, VMGB-410) |
| Network | |
| Ethernet Port | PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector |
| General | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 30 Watts (2-pair) |
| Power Output | DC 53V |
| Power Source | AC 100-240V, 60/50 Hz, 0.75A |
| Weight | 203.5g (0.45lb) |
| Dimensions (W x H x D) | 115mm x 31mm x 62.5mm (4.53" x 1.22" x 2.46") |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
PPOE-0107_Datasheet.pdf
1mb
