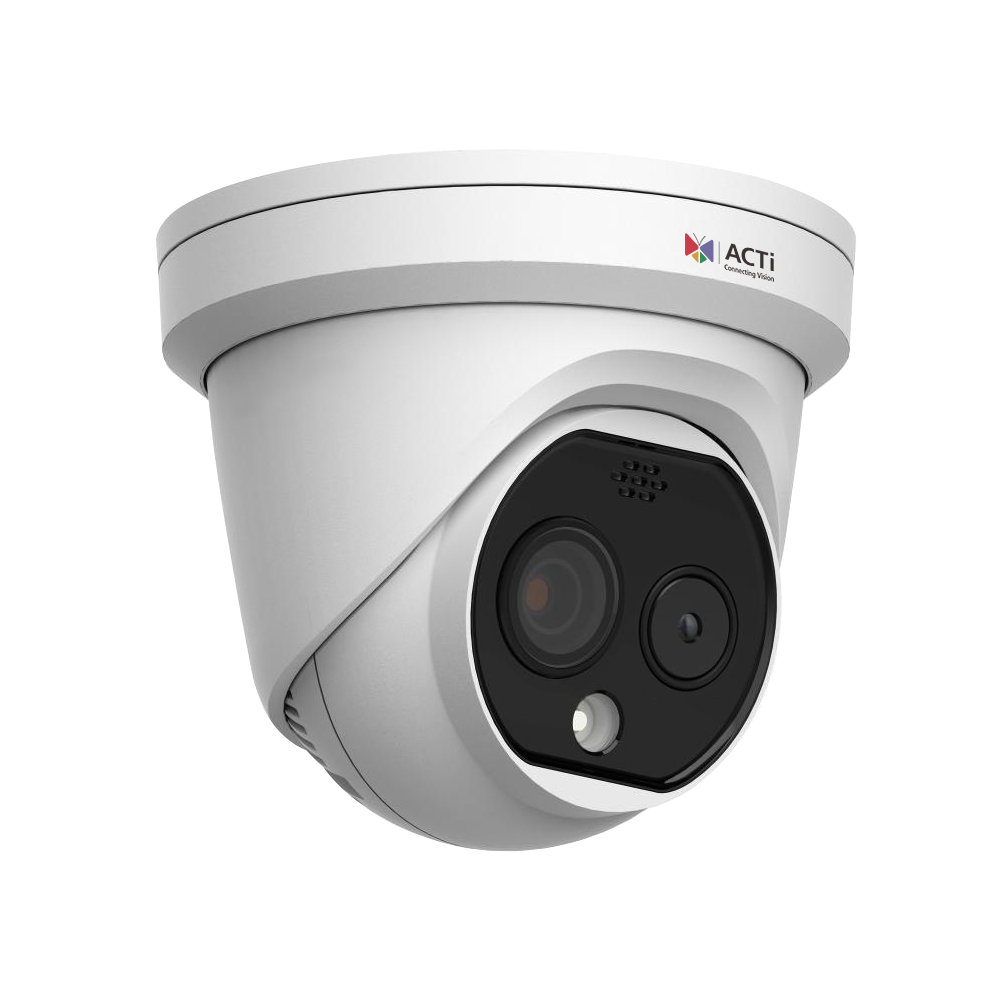

- • 4 Megapixel, f2.1mm, Thermal Turret
- • Aperture F2.25, IR LED 15m, Superior WDR (120 dB)
- • White LED 30m, Smart Dual Light
- • Two-way Audio
- • DI/DO
- • Overheating Detection, Fire Detection, Thermal Surveillance
- • NETD <40mK
| Product Profile | |
|---|---|
| Product Type | Thermal Turret |
| Product Application | Overheating Detection, Fire Detection, Thermal Surveillance |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS + Thermal sensor |
| Sensor Size | Optical: 1/2.7" |
| Effective Pixels | Thermal: 256(H) X 192(V) Optical: 2688(H) X 1520(V) |
| Pixel Interval | 12 μm |
| Spectral Range | 8-14 μm |
| Thermal Sensitivity | NETD <40mK at F1.1 |
| Spatial Resolution | 5.71 mrad |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.0176 lux at F2.25 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 15m |
| White LED | Yes |
| White LED Working Distance | 30m |
| Smart Dual Light | Yes |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Number of Lenses | 2 Lenses |
| Focal Length | Fixed focal, f2.1mm (Thermal camera) Fixed focal, f2.2mm (Visual camera) |
| Aperture | (Thermal camera) F1.0 (Visual camera) F2.25 |
| Horizontal Viewing Angle | (Thermal camera) 90° (Visual camera) 117.8° |
| Vertical Viewing Angle | (Thermal camera) 65.4° (Visual camera) 70.4° |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | (Visual camera) (60Hz) 30 fps at 2688 x 1520 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 704 x 480 30 fps at 352 x 240 (50Hz) 25 fps at 2688 x 1520 25 fps at 1920 x 1080 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 352 x 288 (Thermal camera) 25 fps at 1280 x 720 25 fps at 704 x 576 25 fps at 640 x 512 25 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Built-in Analytics | People Detection, Vehicle Detection, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Tampering Detection, Temperature Detection, Smoking Detection, Sun-reflection Filter, Fire Detection |
| Audio | |
| Audio Type | 2-way, Mic-in, Line-in, Line-out |
| Audio Compression | PCM, G.711, G.722.1, G.726, MP2L2 |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, TLS 1.2, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Temperature Measurement | |
| Temperature Measurement Rules | 3 types (point, area, line), up to 21 rules in total (10 points, 10 areas, 1 line) |
| Temperature Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Accuracy | ±8°C (14.4°F) |
| Detection Range | |
| Triggering Analytics Event Notification | (People 1.8x0.5m) 16.8m (Vehicle 1.4x4.0m) 50.4m (Supported Analytics Events included Line Crossing Detection, Enter Area Detection and Exit Area Detection for People, Vehicle and any objects.) |
| Triggering Temperature Notification | (Object 0.2x0.2m) 7m (Object 1x1m) 35m |
| Triggering Fire Detection Event Notification | (Object 0.2x0.2m) 21.6m |
| Triggering Smoking Detection Event Notification | 3.15m |
| Observation Range | Detection: People 88m; Vehicle 268m Recognition: People 22m; Vehicle 67m Identification: People 11m; Vehicle 34m (People: 1.8 x 0.5m) (Vehicle: 1.4 x 4.0m) |
| Event | |
| Event Trigger | Intelligent event detection, Temperature Exception Detection (up to 10 points, 10 areas and 1 line), Fire Detection, Sound detection |
| Event Response | Activate external device through digital output, Flashing alarm light, Play alert sound, Send E-mail Notification, Upload snapshot to FTP server, Save video or snapshot to storage |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G |
| Interface | |
| Serial Port | 1 x RS-485 |
| Digital Input/Output | 1/1 |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6 W (DC), 6.5 W (PoE) |
| Weight | 950g (2.09lb) |
| Dimensions | (W x H x D): 138.3mm x 138.3mm x 123.1mm (5.45" x 5.45" x 4.85") |
| Environmental Casing | Weatherproof (IP67) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
