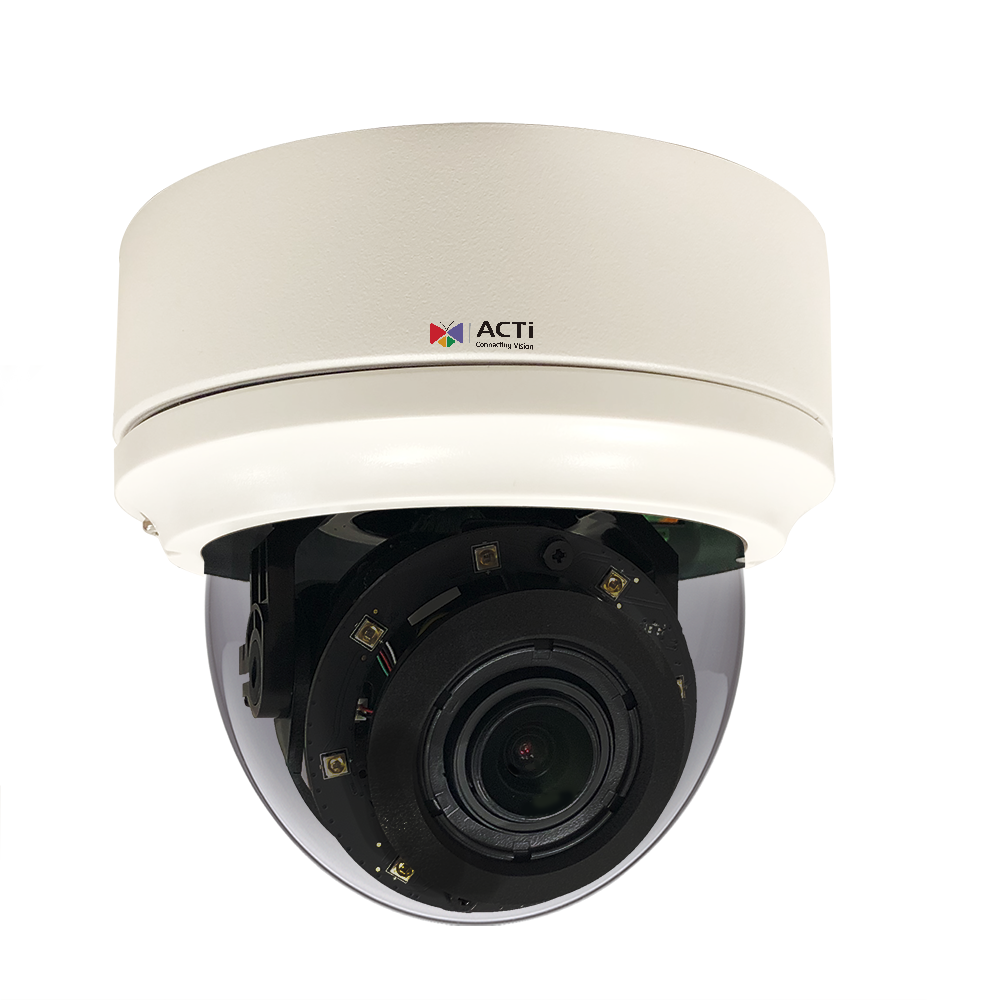

- • 5 Megapixel, 4.4x, Zoom Dome
- • IR LED 60m, Extreme WDR (135 dB)
- • Color Min. Illumination 0.001 lux
- • Two-way Audio
- • Face Recognition, Counting
- • Automatic License Plate Recognition
- • Weatherproof (IP66), Vandal proof (IK10)
- • DI/DO
| Product Profile | |
|---|---|
| Product Type | Zoom Dome |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Effective Pixels | 2688(H) X 1944(V) (5.23 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.001 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED x 8 (850 nm) |
| IR Working Distance | 60m |
| Electronic Shutter | 1-1/10000 second (manual mode); 1-1/10000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1600 TVL |
| S/N Ratio | 75 dB |
| Number of Traffic Lanes | 1 |
| Lens | |
| Focal Length | Zoom, f2.7-12mm |
| Aperture | F1.6 |
| Zoom Ratio | 4.4x optical zoom, 10x digital zoom |
| Zoom Application | Camera Installation |
| Iris | P-Iris |
| Focus | Auto focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 102.1° - 31.5° |
| Vertical Viewing Angle | 70.3° - 22.7° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1944 30 fps at 2592 x 1944 30 fps at 2688 x 1512 30 fps at 1920 x 1080 30 fps at 1280 x 1024 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 720 x 480 30 fps at 640 x 480 30 fps at 352 x 240 30 fps at 320 x 240 |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous quad streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (135 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) (90⁰, 180⁰, 270⁰) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Deep Learning : Face Recognition, Face Detection, People Detection, Vehicle Detection, Object Based Motion Detection, Tampering Detection, Object Line Crossing Detection, Object Area Counting, Intrusion Detection (Forbidden Area Detection), Missing Object Detection, Unattended Object Detection, Object Loitering Detection, People Counting, People Line Crossing Detection, People Enter Area Detection, People Incorrect Direction Detection, People Loitering Detection, People Tracking, Vehicle Counting, Vehicle Line Crossing Detection, Vehicle Enter Area Detection, Vehicle Incorrect Direction Detection, Vehicle Loitering Detection, Vehicle Tracking, Stopped vehicle detection, License Plate Detection, Automatic License Plate Recognition |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, AAC, PCM |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100/1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event | |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Save video to storage, Upload snapshot to FTP server, Activate external device through digital output |
| System | |
| Watchdog | Support |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile M |
| Web Browser | Microsoft Edge(IE mode), Microsoft Edge, Google Chrome, Firefox |
| Storage | |
| User Database | User Capacity: 10,000 (up to 5 images per person) |
| Interface | |
| Audio Interface | 1/1, Terminal block |
| Digital Input/Output | 1/1 (Terminal block) |
| Operating Button | Reset Button |
| Installation | |
| Vehicle Capture Speed | Front-Installation: 80 km/h Side-Installation: 60 km/h |
| General | |
| Power Source | DC 12V, AC 24V, PoE Class 0 (IEEE802.3af) |
| Power Consumption | 11.63 W (DC), 12.76 W (AC), 12.94 W (PoE) |
| Weight | 760g (1.19lb) |
| Dimensions | (Ø x H): 133.8mm x 117.4mm (5.27" x 4.62") |
| Environmental Casing | Weatherproof (IP66), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Bundled Accessories | Weatherproof connector kit |
| Starting Temperature | -55°C ~ 55°C (-67°F ~ 131°F) |
| Operating Temperature | -55°C ~55°C (-67°F ~ 131°F) heater on (Limited zoom functionality at -55°C and may require manual focus) |
| Operating Humidity | 10% - 90% RH, non-condensing |
| Approvals | CE Class A, FCC Class A, IP66, IK10 |
| Color | White |
| Warranty | 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
