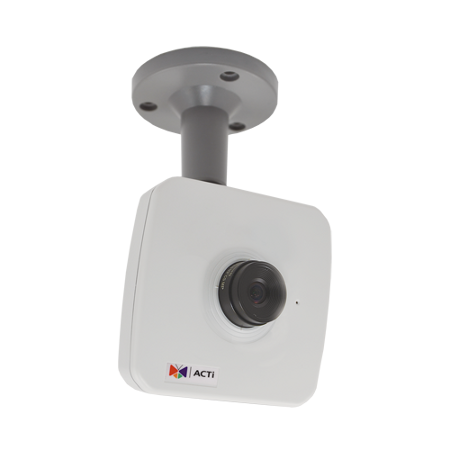

Acti - E19 - 5MP f2.8mm Fixed Cube with WDR 142dB
Part number:
Price:
- • 5 Megapixel, f2.8mm, Fixed Cube
- • Extreme WDR (142 dB)
- • Color Min. Illumination 0.003 lux
- • Two-way Audio
- • Counting
| Product Profile | |
|---|---|
| Product Type | Fixed Cube |
| Application Environment | Indoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8" |
| Effective Pixels | 2592(H) X 1944(V) (5.04 MP) |
| Day / Night | No |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.003 lux |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1600 TVL |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | CS Mount |
| Horizontal Viewing Angle | 117.5° |
| Vertical Viewing Angle | 69.8° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 (Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2592 x 1944, 30 fps at 2048 x 1536, 30 fps at 1920 x 1080, 30 fps at 1280 x 960, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 720 x 480, 30 fps at 640 x 480 |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (142 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control (AGC), Flickerless, Digital Image Stabilizer (DIS, EIS) |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Face Detection, People Counting, Temperature Detection, People Counting, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Appear in Area |
| Audio | |
| Audio Type | 2-way, Built-in Microphone, Line-out |
| Audio Compression | G.711 u-law |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP |
| Ethernet Port | 1 x RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login |
| Event | |
| Event Trigger | Video motion detection (3 regions), Sound detection, Tampering detection, Video loss |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to storage, Upload video or snapshot to FTP server |
| System | |
| Watchdog | Support |
| Integration | |
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)* |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Apple Safari, Firefox |
| Auto Firmware Upgrade | Yes* (To be available through future firmware upgrade) |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | PoE Class 2 (IEEE802.3af) |
| Power Consumption | 6.49 W (PoE) |
| Dimensions (W x H x D) | 96mm x 96mm x 45mm (3.8" x 3.8" x 1.8") |
| Bundled Accessories | Bracket |
| Mount Type | Ceiling Bracket |
| Starting Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
| Approvals | CE Class A, FCC Class A |
| Color | White |
| Real-time Clock (RTC) | Yes |
| Warranty | 3 Year(s) |
