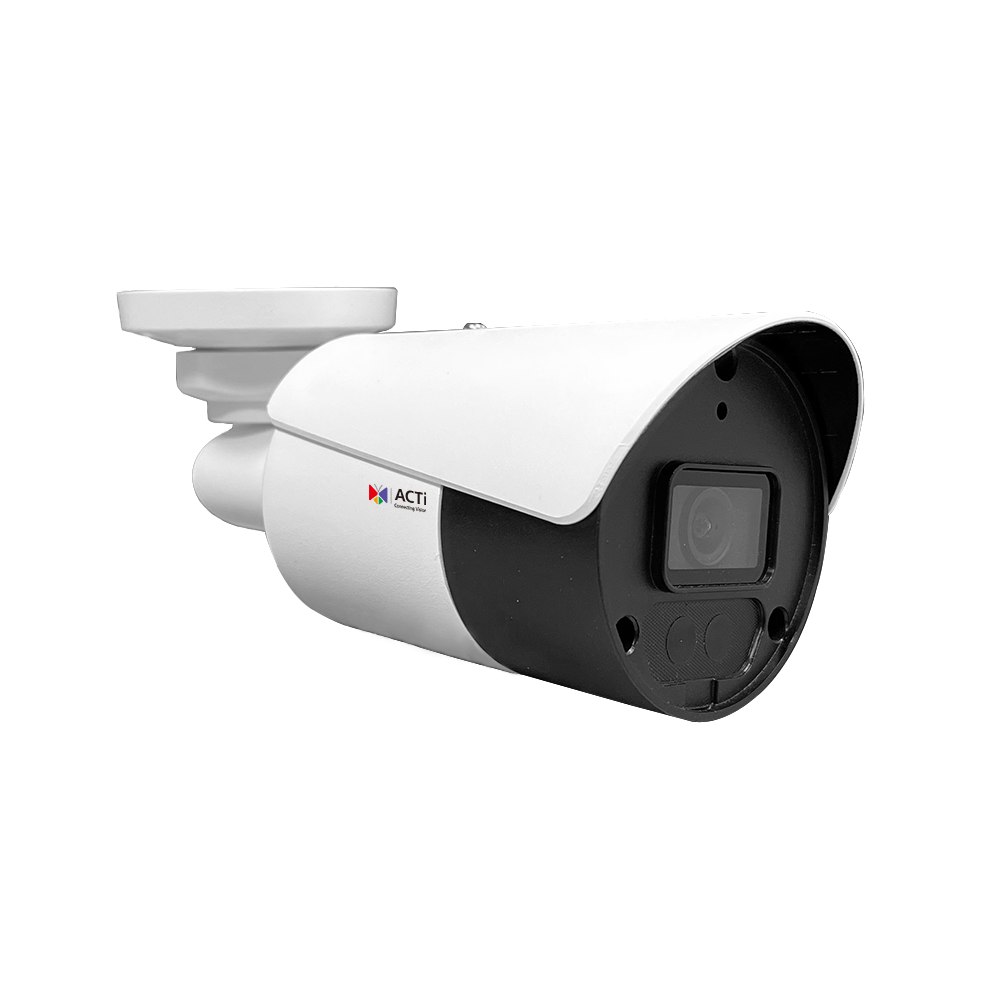

- • 8 Megapixel, f2.8mm, Fixed Bullet
- • Deep Learning AI, LightGuard
- • IR LED 50m, Extreme WDR (130 dB)
- • Color Min. Illumination 0.005 lux
- • Built-in Microphone
- • Smart Motion Detection
- • Weatherproof (IP67), UL Listed
| Product Profile | |
|---|---|
| Product Type | Fixed Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 8MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8" |
| Effective Pixels | 3872(H) X 2192(V) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.005 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Horizontal Viewing Angle | 98.7° |
| Vertical Viewing Angle | 53.9° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 3840 x 2160, 30 fps at 3072 x 1728, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 720 x 576, 30 fps at 640 x 360, 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Digital Noise Reduction, Highlight compensation (HLC), Automatic gain control (AGC), Contrast, Brightness, Defogging, Sharpness |
| Privacy Mask | Up to 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, Intrusion Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, IEEE 802.1X, SNMP |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Tampering detection, Intelligent event detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to storage |
| Integration | |
| ONVIF Compliant | Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Audio Interface | Built-in microphone |
| Operating Button | Reset Button |
| General | |
| Power Consumption | 6.9 W (PoE) |
| Environmental Casing | Weatherproof (IP67) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Storage Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE, FCC, IP67, UL Listed, RoHS |
| Color | White |
| Warranty | 2 Year(s) |
