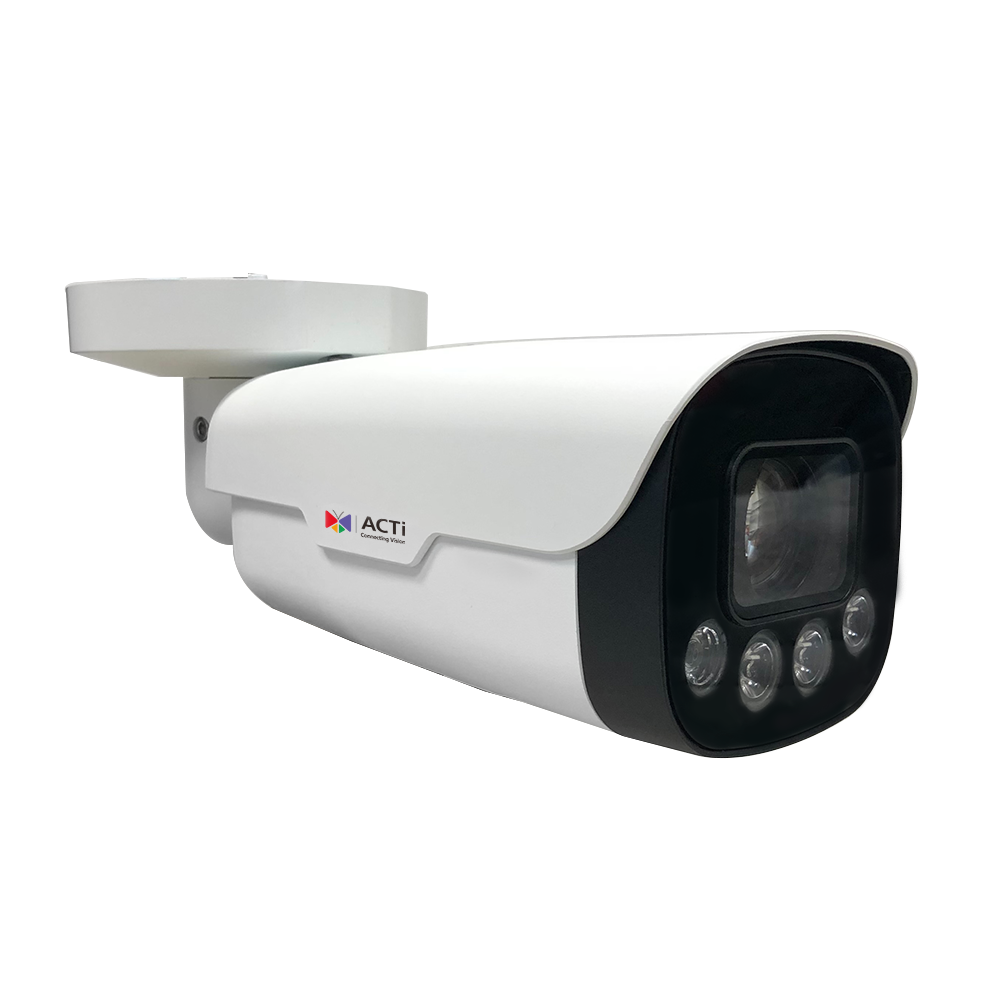

• 2 Megapixel, 10x, Zoom Bullet
• Deep Learning AI, LightGuard
• IR LED 100m, Extreme WDR (145 dB)
• Color Min. Illumination 0.003 lux
• Frame Rate 60fps
• Two-way Audio
• Counting
• Weatherproof (IP67), Vandal proof (IK10)
• DI/DO
| Product Profile | |
|---|---|
| Product Type | Zoom Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 100m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Zoom, f5.0-50mm |
| Aperture | F1.6 |
| Zoom Ratio | 10x optical zoom, 10x digital zoom |
| Iris | DC iris |
| Horizontal Viewing Angle | 55.87° - 4.71° |
| Vertical Viewing Angle | 68.72° - 5.56° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080 60 fps at 720 x 576 30 fps at 640 x 360 |
| Bit Rate | 128Kbps - 16Mbps |
| Bit Rate Mode | Constant, Variable |
| Multi-Streaming | Simultaneous triple streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC) |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Face Detection, Age Detection, Gender Detection, Face Mask Detection, People Counting, Crowd Detection, Object Line Crossing Detection, Object Enter Area Detection, Object Exit Area Detection, Intrusion Detection (Forbidden Area Detection), Missing Object Detection, Unattended Object Detection, Tampering Detection |
| Analytics | |
| Deep Learning AI | 2.0 |
| Audio | |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL/TLS, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Maximum User Connections | 32 |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Tampering detection, External device through digital input |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Microsoft Edge, Google Chrome, Firefox |
| Interface | |
| Serial Port | 1 x RS-485 |
| Analog Video Output | 1 x BNC connector |
| Digital Input/Output | 2/1 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, High PoE (IEEE802.3at) |
| Power Consumption | 13 W (PoE) |
| Weight | 1930g (4.25lb) |
| Dimensions | (L x W x H): 354mm x 105mm x 98mm (13.9" x 4.1" x 3.9") |
| Environmental Casing | Weatherproof (IP67), Vandal proof metal casing (IK10) |
| Corrosion Protection | Ordering Number will be created upon orders. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Bundled Accessories | Junction Box |
| Heater | Yes |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 6KV |
| Approvals | CE, FCC, IP67, IK10 (metal casing) |
