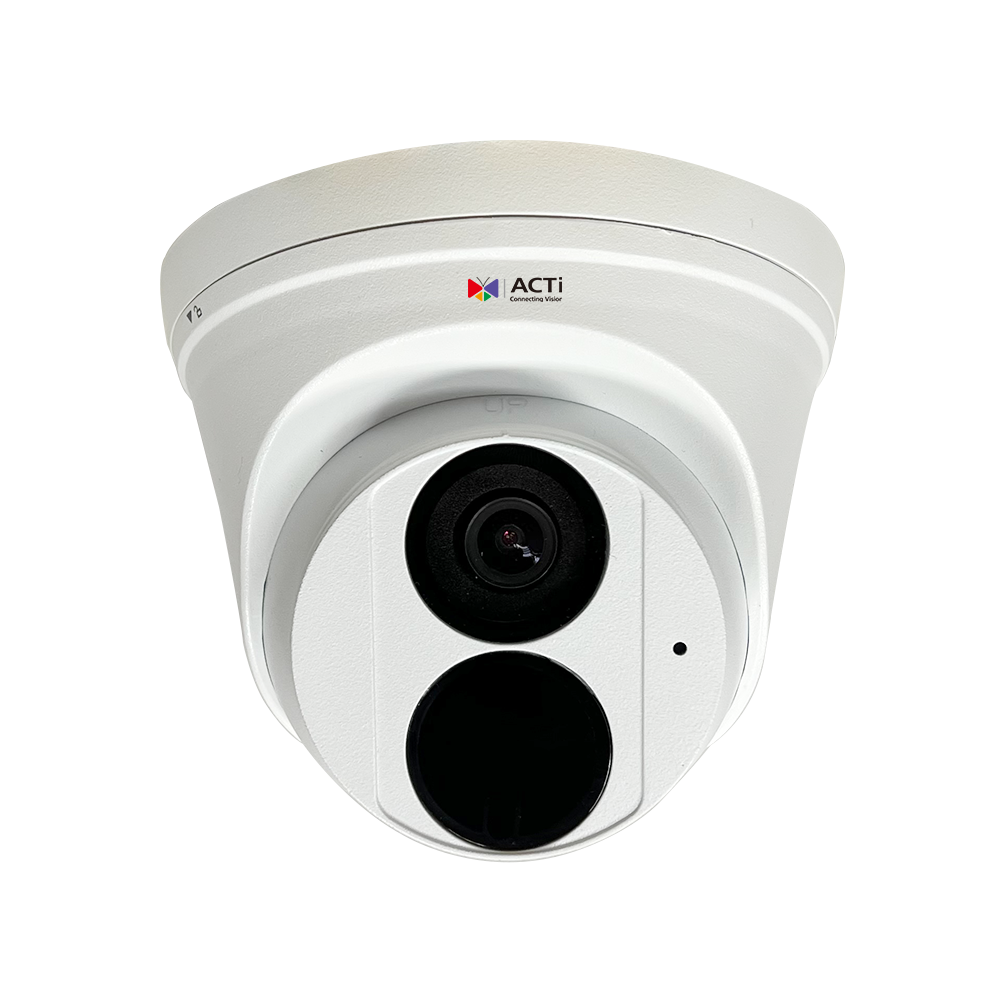

- • 5 Megapixel, f2.8mm, Fixed Turret
- • Deep Learning AI, LightGuard
- • IR LED 50m, Extreme WDR (130 dB)
- • Color Min. Illumination 0.003 lux
- • Built-in Microphone
- • Smart Motion Detection
- • Weatherproof (IP68), Vandal proof (IK10), UL Listed
| Product Profile | |
|---|---|
| Product Type | Fixed Turret |
| Application Environment | Outdoor |
| Maximum Resolution | 5MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7" |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| LightGuard | Yes |
| Minimum Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 50m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 112.9° |
| Vertical Viewing Angle | 59.1° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-80°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2880 x 1620, 25 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 720 x 576, 30 fps at 640 x 360 |
| Bit Rate | 128Kbps - 6Mbps |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), People Detection, Vehicle Detection, People Line Crossing Detection, People Intrusion Detection, Tampering Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, QoS, SSL |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Event | |
| Event Trigger | Video motion detection, Sound detection, Intelligent event detection, Tampering detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to storage |
| Integration | |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 4.4 W (PoE) |
| Weight | 320g (0.71lb) |
| Dimensions (Ø x H) | 118mm x 95mm (4.6" x 3.8") |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Mount Type | Wall Mount, Pole Mount, Pendant |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class A, FCC Class A, IP68, IK10, UL Listed, RoHS |
| Color | White |
| Material | Metal, Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s) |
