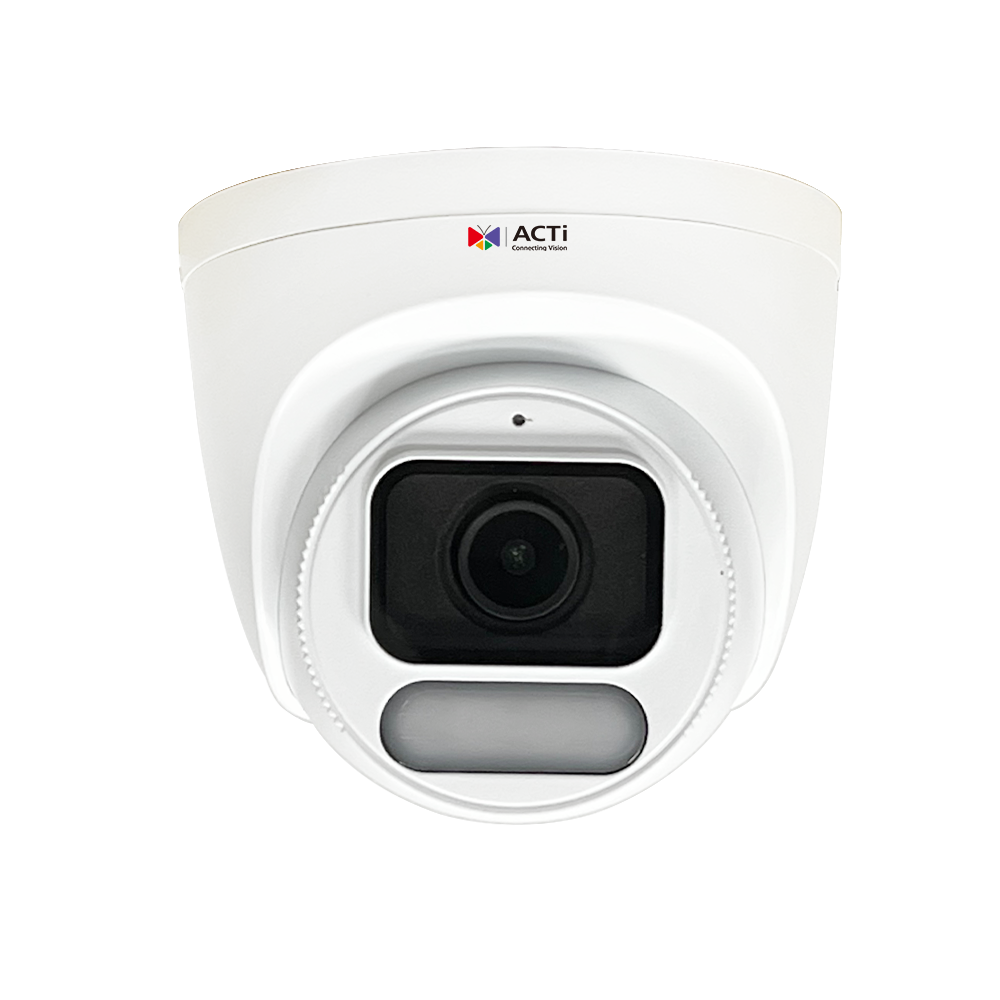

- • 4 Megapixel, f2.8mm, Fixed Turret
- • Deep Learning AI, ColorGuard
- • 1/1.8" Sensor, Aperture F1.0, Extreme WDR (135 dB)
- • White LED 40m, Color Min. Illumination 0.0003 lux, ColorVizion
- • Built-in Microphone
- • Smart Motion Detection, Smart Intrusion Protection
- • Weatherproof (IP67), Vandal proof (IK10), UL Listed
| Product Profile | |
|---|---|
| Product Type | Fixed Turret |
| Application Environment | Outdoor |
| Maximum Resolution | 4MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8" |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| ColorGuard | Yes |
| ColorVizion | Yes |
| Minimum Illumination | Color: 0.0003 lux at F1.0 (AGC on) |
| Mechanical IR Cut Filter | No |
| IR LED | No |
| White LED | Yes |
| White LED Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 75 dB |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 110.4° |
| Vertical Viewing Angle | 60.5° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-75°, Rotation: 0°-360° |
| Video | |
| Compression | H.265 Adaptive Stream, H.264 Adaptive Stream, MJPEG |
| Maximum Frame Rate vs. Resolution | 25 fps at 2688 x 1520, 25 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 720 x 576, 30 fps at 640 x 360 |
| Multi-Streaming | Simultaneous dual streams |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (135 dB) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode)(±90⁰, 180⁰) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Highlight compensation (HLC), Defogging |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Smart Motion Detection (People Detection, Vehicle Detection), Smart Intrusion Protection, People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, Vehicle Line Crossing Detection, Intrusion Detection |
| Analytics | |
| Deep Learning AI | 1.0 |
| Audio | |
| Audio Type | 1-way, Built-in Microphone |
| Audio Compression | G.711 |
| Network | |
| Network Protocol & Service | IPv4, IPv6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
| Event | |
| Event Trigger | Video motion detection, Tampering detection, Sound detection |
| Event Response | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to storage |
| Integration | |
| Edge Recording | Support (integration with NVR by ONVIF Profile G) |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| Web Browser | IE 11, Google Chrome, Microsoft Edge, Firefox |
| Interface | |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE (IEEE802.3af) |
| Power Consumption | 2.8 W (PoE) |
| Weight | 480g (1.06lb) |
| Dimensions (Ø x H) | 118mm x 106mm (4.6" x 4.2") |
| Environmental Casing | Weatherproof (IP67), Vandal proof (IK10) |
| Corrosion Protection | Optional for project request. Chassis corrosion resistance at the seashore approximately 2-3 years. |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class B, FCC Class B, IP67, IK10, UL Listed |
| Color | White |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s) |
